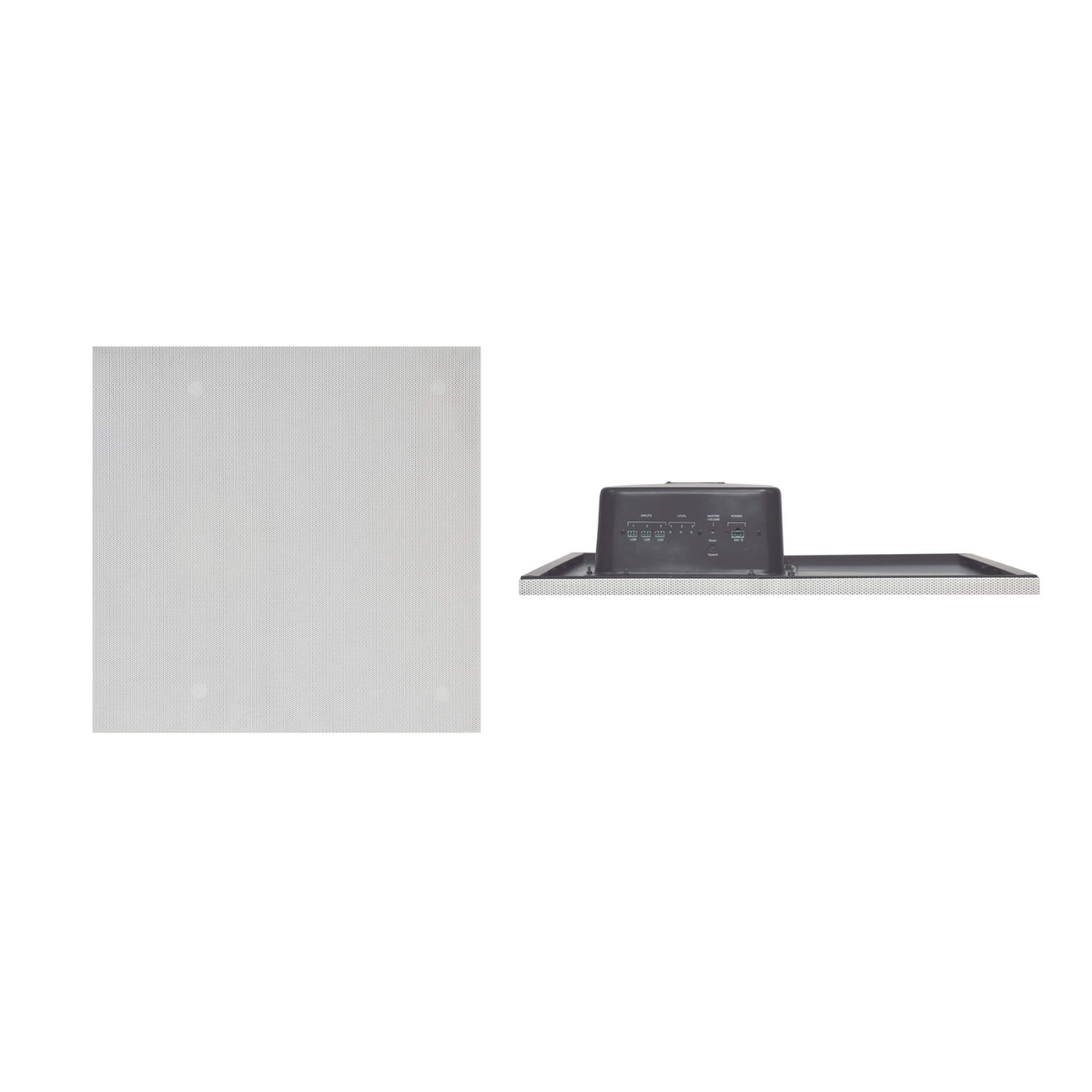

Tavor 8-T Powered Ceiling Tile Speaker

The Tavor 8-T is a high-performance powered ceiling tile speaker featuring a 40W built-in Class D amplifier, three inputs, a Kevlar woofer, and four pivoting titanium tweeters. Its ESD™ design delivers nearly 180° sound dispersion, while the magnet-held grille with security screws ensures easy installation. It also features a second-level crossover for enhanced audio performance.

Contact to Seller
  • Type — 2–way ceiling tile speaker
  • Built–in Power Amplifier — 40W RMS, 110W continuous program
  • Woofer — 8” Kevlar(R) cone
  • Tweeter — Four 1” titanium domes
  • 3 Inputs with Individual Volume Control
  • Master Volume Control
  • 1 Speaker
Download Product catalog
DESCRIPTION Active flat ceiling speaker
FREQUENCY RESPONSE 65Hz to 20kHz @−10dB, 80Hz to 20kHz @±3dB
WOOFER 8” (200mm) Kevlar(R) cone with rubber surround
TWEETER Four 0.8" titanium pivoting tweeters
SENSITIVITY 87dB 1W @1m
MAX SPL Continuous: 102dB, peak: 105dB
POWER HANDLING 40W RMS, 110W continuous program
CROSSOVER FREQUENCY 2kHz
DIRECTIVITY FACTOR (Q) 9.43 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI) 9.5dB averaged 1kHz to 10kHz
