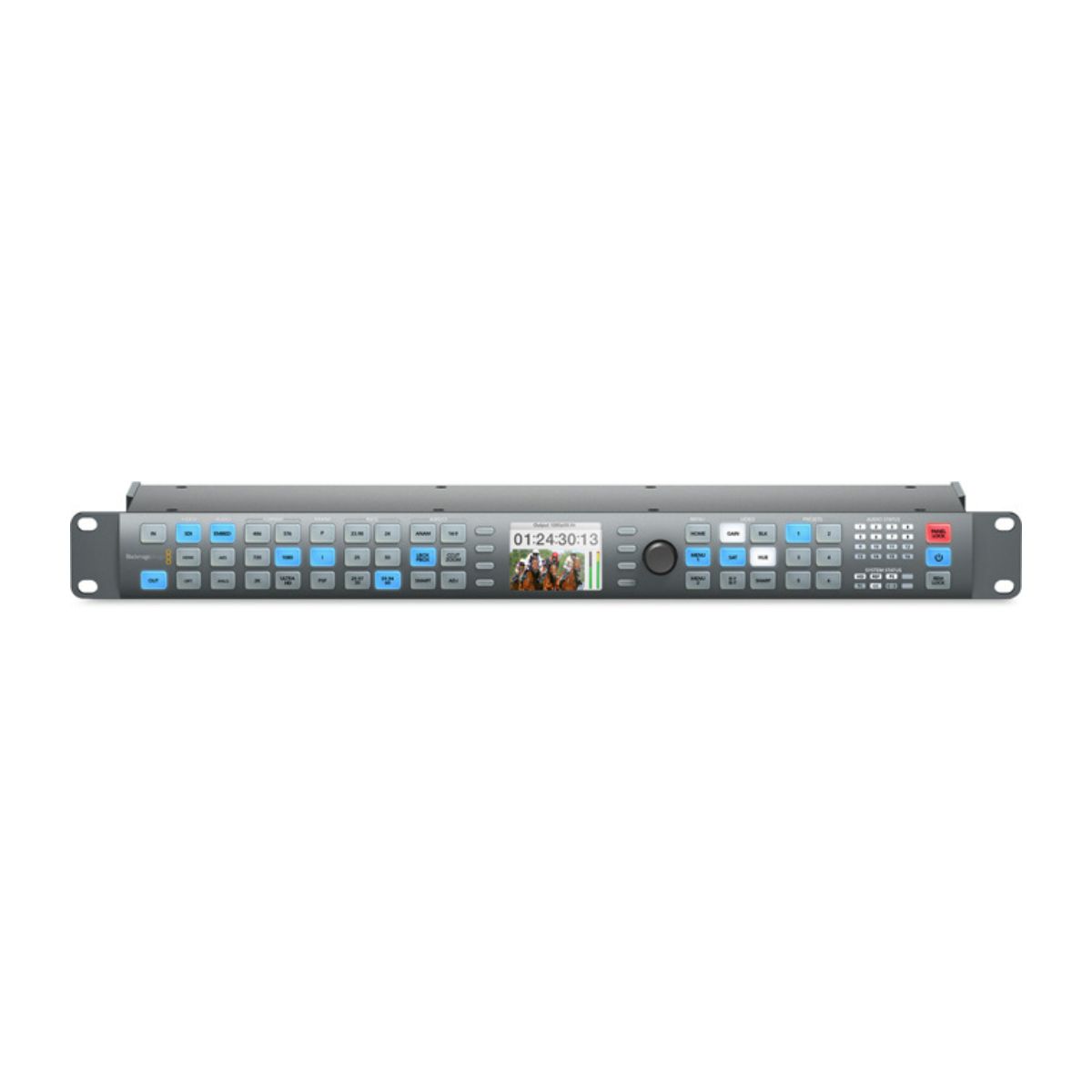

Teranex AV

Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex’s patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!

Contact to Seller

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

1.5G-SDI HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

3G-SDI HD Video Standards

1080p50, 1080p59.94, 1080p60 levels A and B

2K Video Standards

2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

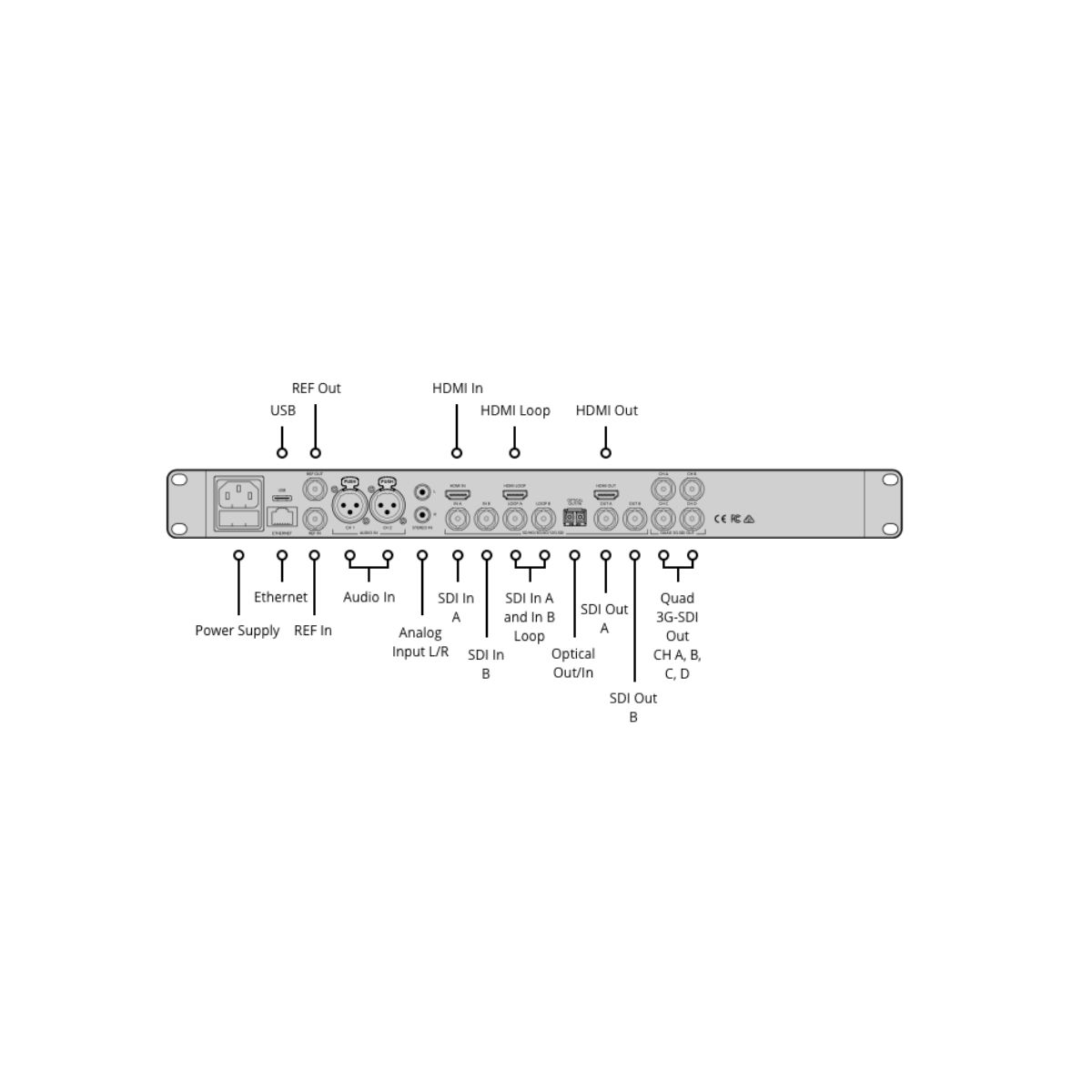

Connections

SDI Video Inputs

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.


1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual-link input for 4:2:2 3G or 6G Ultra HD

SDI Video Input Loops

Optical Fiber Video Inputs

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Video Outputs

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

Optical Fiber Audio Inputs

16 channels in SD, HD, 3G HD, 2K, and Ultra HD.

Optical Fiber Audio Outputs

16 channels in SD, HD, 3G HD, 2K, and Ultra HD.
