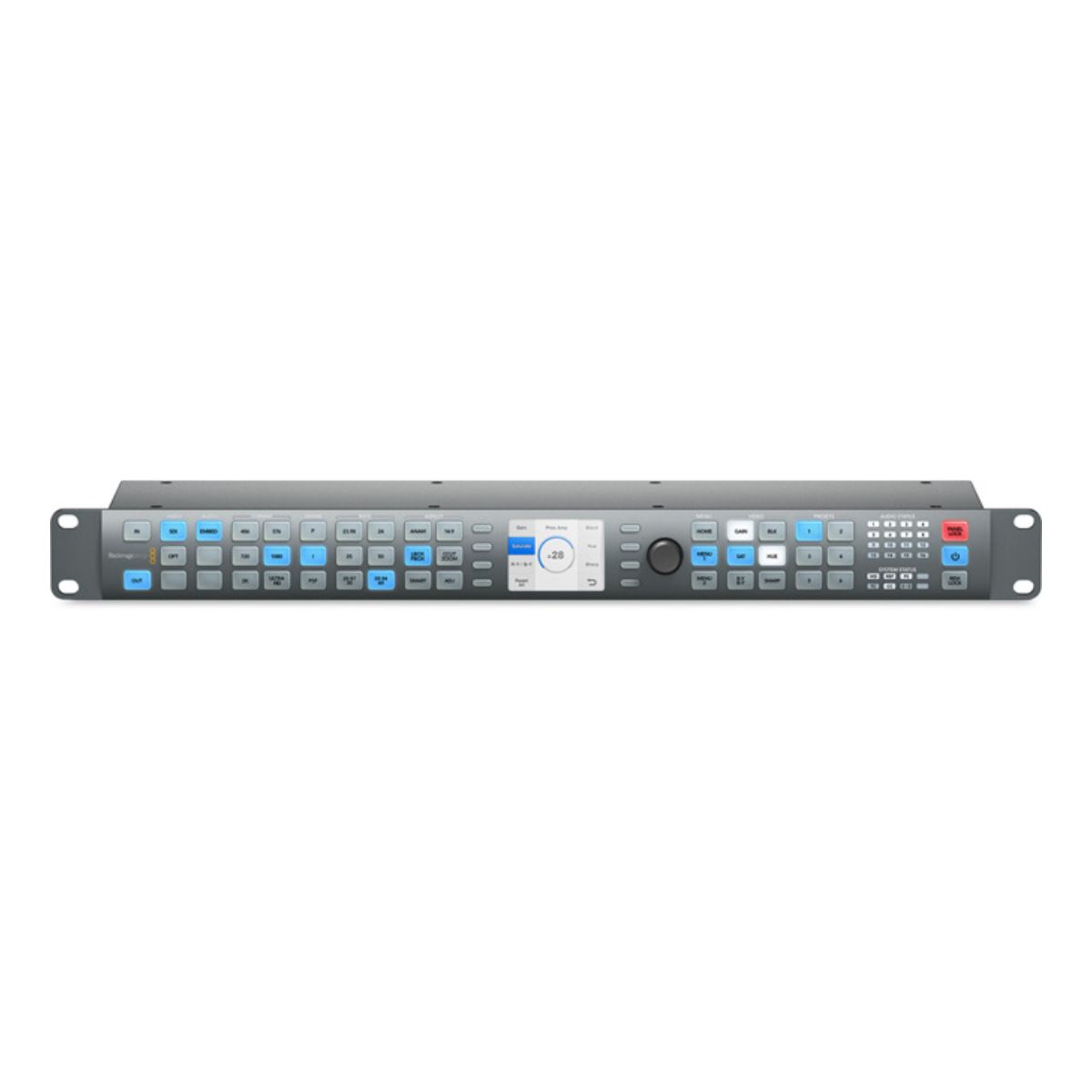

Teranex Express

Teranex Express is the world’s first real-time SD, HD, and Ultra HD broadcast standards converter! Featuring advanced patented algorithms, Teranex Express gives you the visually transparent, high-quality conversions that are mandated by major broadcasters and studios worldwide! You get an incredible 1089 SD, HD, and Ultra HD up, down, and standards conversions in full 10-bit quality! You also get amazing processing with high-quality de-interlacing, noise reduction, automatic cadence detection, removal, and correction, even with edited content, adjustable scaling and aspect ratio conversion, all with full timecode and multi-channel audio conversion.

Contact to Seller

SDI Video Inputs

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

SDI Audio Outputs

16 channels in SD, HD, 3G HD, 2K, and Ultra HD.

Optical Fiber Connection (optional)

1x SMPTE optical fiber SFP socket.

Optical Fiber Audio Inputs

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

Optical Fiber Audio Outputs

16 channels in SD, HD, 3G HD, 2K, and Ultra HD.

Dolby® Support Built In

Dolby® AC-3 pass-through in all conversions. Dolby® E pass-through except during video frame rate conversions.



Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

1.5G-SDI HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

3G-SDI HD Video Standards

1080p50, 1080p59.94, 1080p60 levels A and B

2K Video Standards

2K DCI 23.98p, 2K DCI 24p

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M

SDI Metadata Support

VITC/ATC support, SMPTE 12M. Video indexing support, including WSS, RP186, and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
