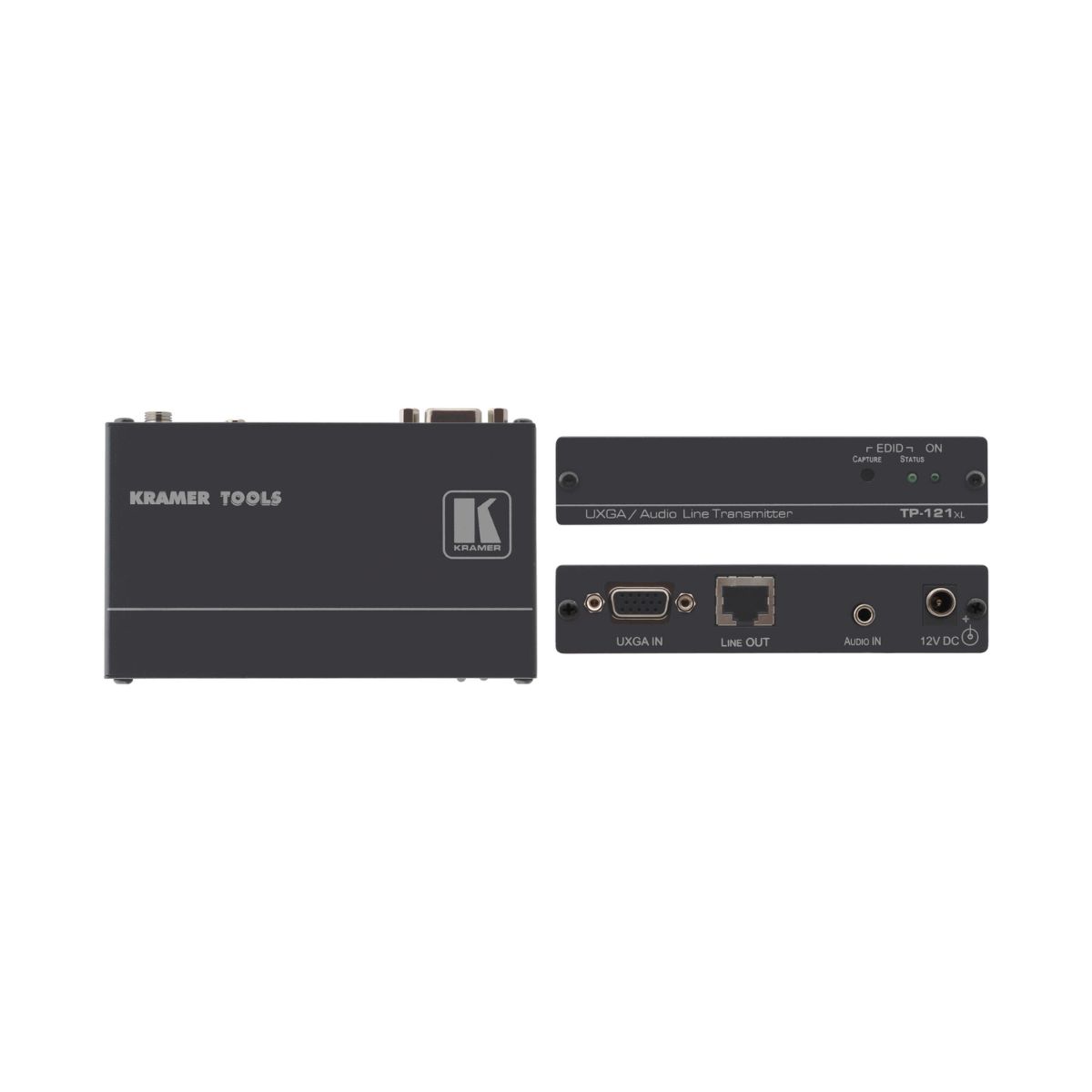

TP-121xl

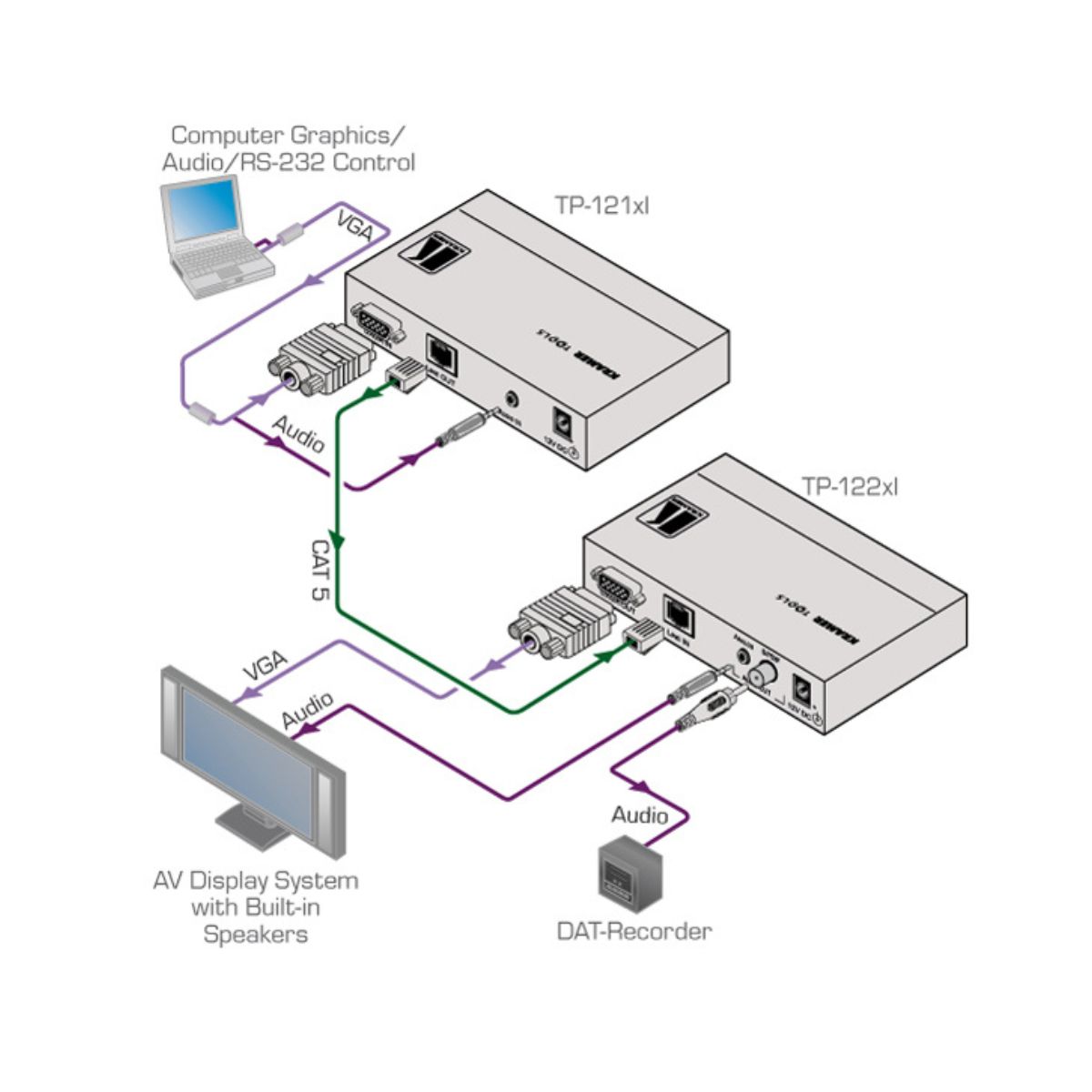

The TP−121xl is a high−performance twisted pair transmitter for computer graphics, video, and unbalanced stereo audio signals. It converts the input signals to a twisted pair signal and transmits them over CAT 5 cable to a compatible receiver.

Contact to Seller
  • Max. Resolution — WUXGA & 1080p.
  •  HDTV Compatible.
  •  EDID Capture — Captures EDID from the display or uses pre–programmed default EDID.
  •  Interference Protection — Increased level of protection against noise, spikes, and interference in adverse environments.
  •  System Range — More than 250m (more than 820ft)
Download Product catalog

INPUTS
  • 1 VGA on a 15–pin HD connector
  • 1 unbalanced stereo audio on a 3.5mm mini jack

OUTPUT
  • 1 twisted pair on an RJ–45 connector

RESOLUTION
  • Up to WUXGA and 1080p

AUDIO BANDWIDTH (-3dB)
  • 20Hz to 20kHz @–3dB

AUDIO S/N RATIO
  • 84dB

TOTAL GAIN
  • Audio: Analog/analog: 0dB
  • Analog/SPDIF: — 12dBFS
