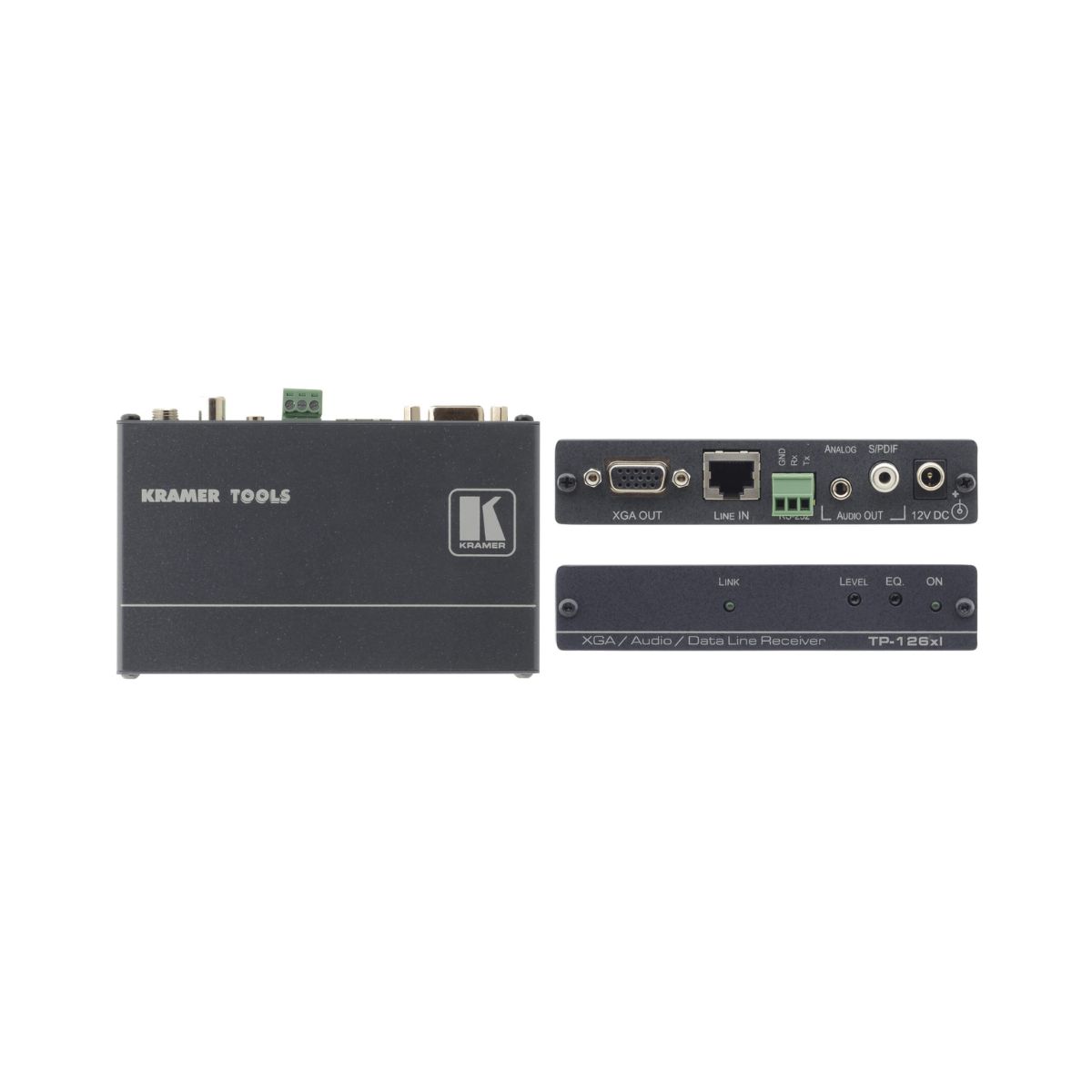

TP-126xl

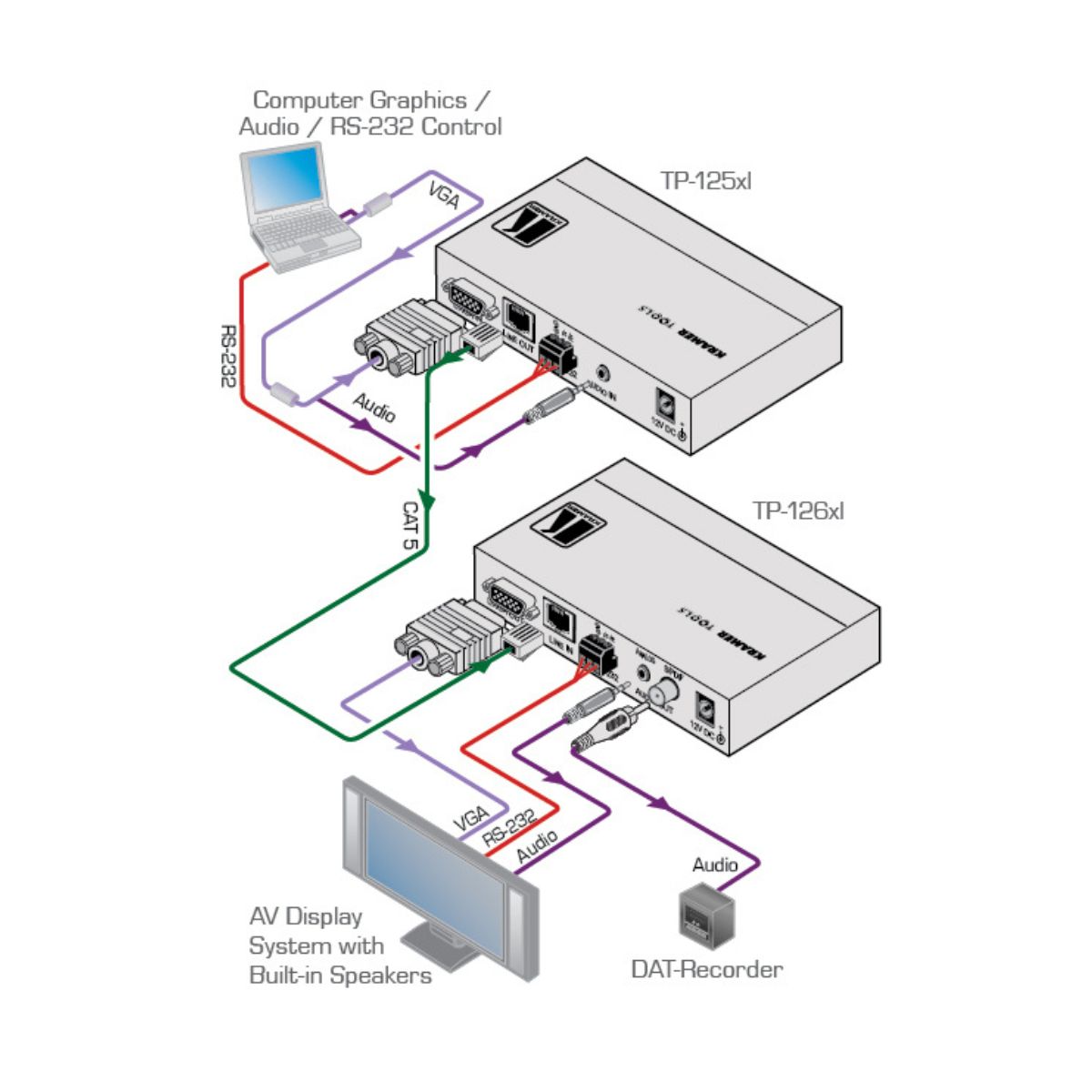

The TP−126xl is an extended-range twisted pair receiver for computer graphics video, unbalanced stereo audio, and bidirectional RS−232 control command signals. The unit receives a twisted pair signal from the TP−125xl that it converts to computer graphics video, RS−232, unbalanced stereo, and S/PDIF audio signals.

Contact to Seller
  • Max. Resolution — WUXGA & 1080p.
  •  HDTV Compatible.
  •  System Range — More than 820ft (more than 250m).
  •  Cable — We recommend the use of Kramer's BC–XTP high quality skew–free, unshielded twisted pair (UTP) cable. When using UTP cable, it is advisable to ensure that the cable is installed far away from electric cables, motors, and so on, which are prone to creating electrical interference.

INPUTS
  • 1 twisted pair on an RJ–45 connector

OUTPUT
  • 1 computer graphics on a 15–pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 bidirectional RS–232 on a 3–pin terminal block

RESOLUTION
  • Up to WUXGA and 1080p

MAX. OUTPUT LEVEL
  • Video: 1.1V, Audio: 2.2V

RS-232 BAUD RATE
  • 9600 and 19200bps

RS-232 MODE
  • Full–duplex
