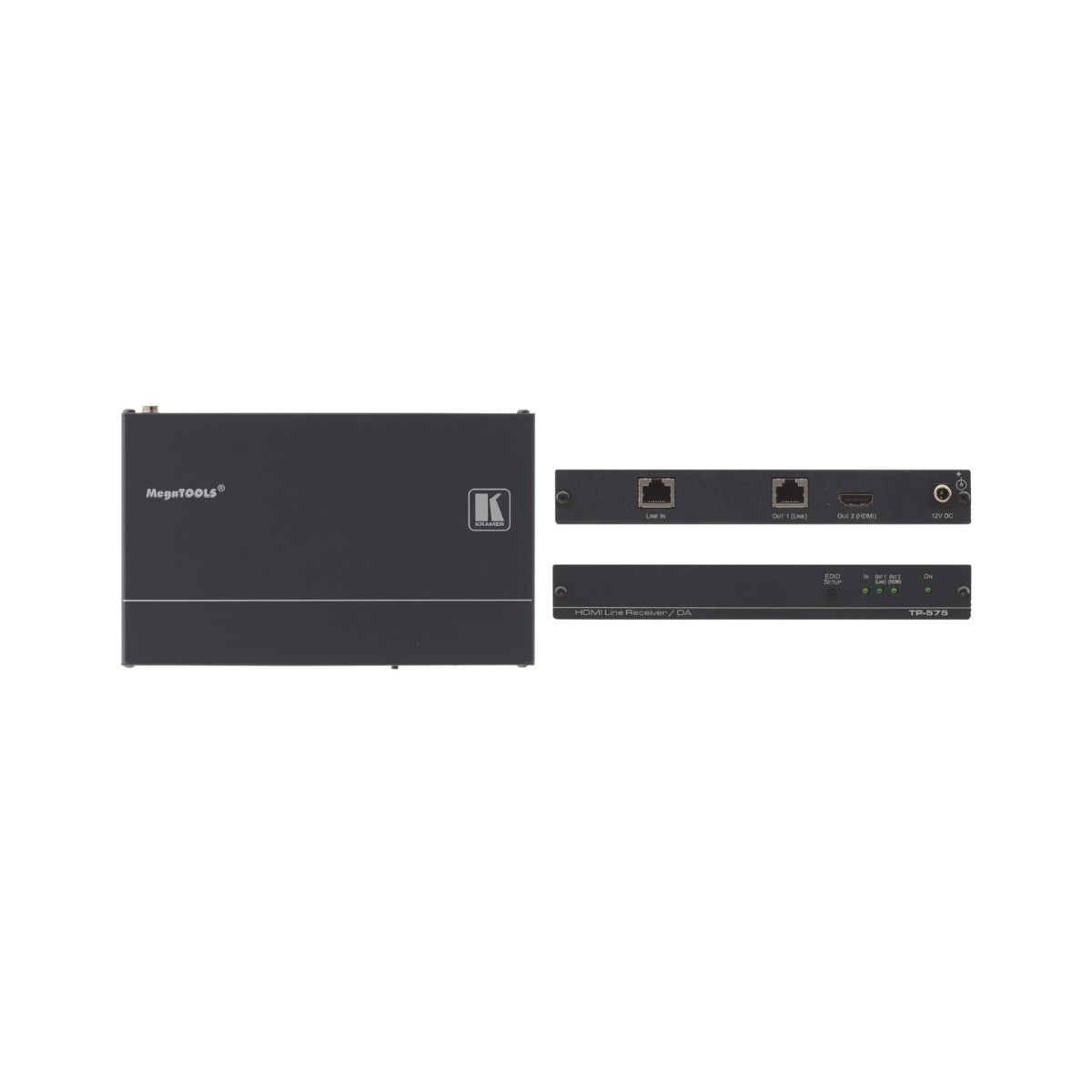

TP-575

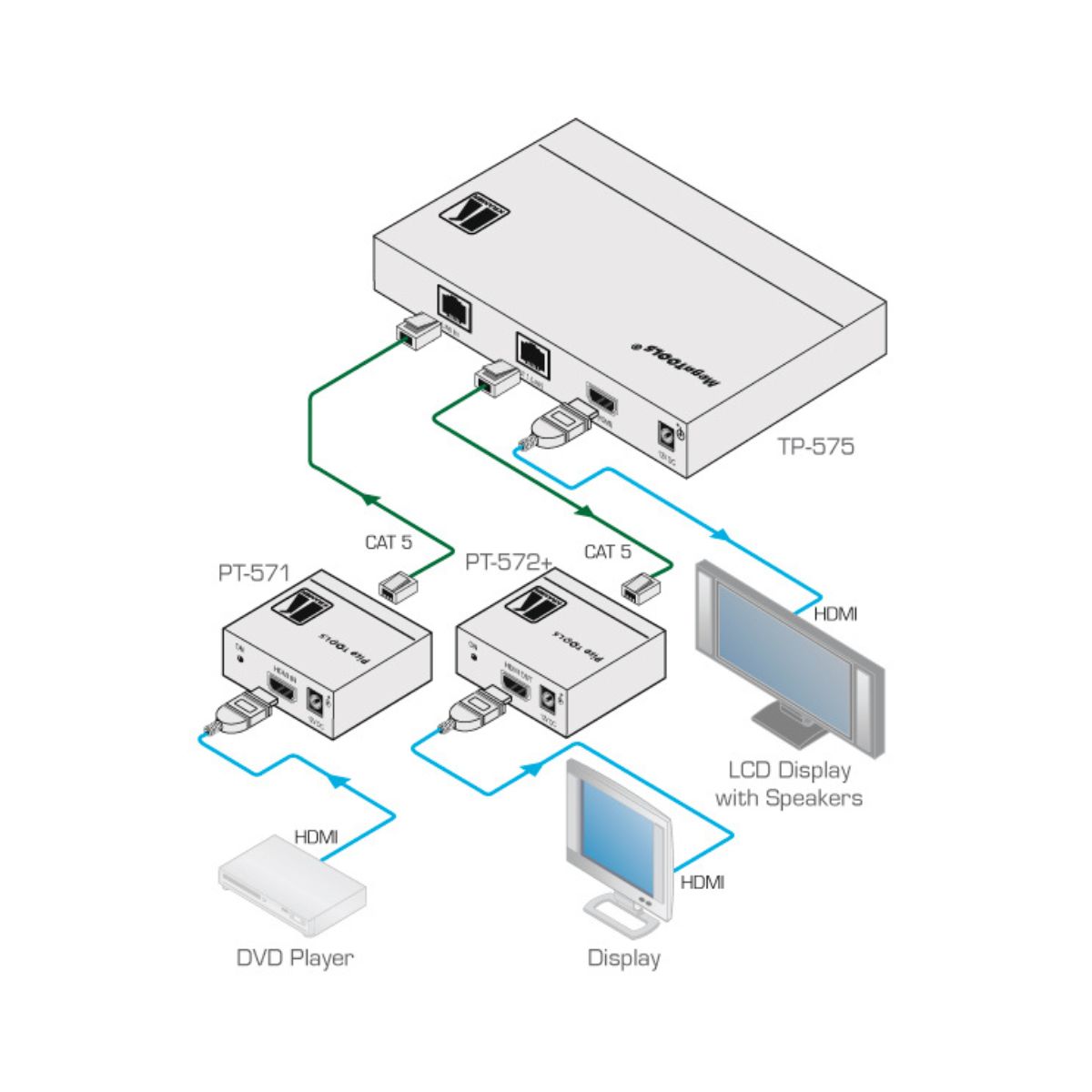

The TP−575 is a DGKat™ twisted-pair line driver for HDMI over twisted-pair signals. The unit receives a twisted-pair signal and outputs both an HDMI signal and a twisted-pair signal to a compatible receiver.

Contact to Seller
  •  Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  •  HDMI Support — x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
  •  3D Pass–Through.
  •  EDID PassThru — Passes EDID signals between the source and display.
  •  HPD Pass–Through — Passes Hot Plug Detect signals from display to source.

INPUT
  • 1 DGKat twisted pair on an RJ–45 connector

OUTPUTS
  • 1 DGKat twisted pair on an RJ–45 connector, 1 HDMI connector

MAX. DATA RATE
  • 4.95Gbps (1.65Gbps per graphic channel)

COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP

CONTROLS
  • EDID SETUP button

INDICATOR LEDs
  • IN, OUT 1 (LINE), OUT 2 (HDMI), and ON LEDs

POWER CONSUMPTION
  • 12V DC, 950mA

INCLUDED ACCESSORIES
  • Power supply

Product Dimensions
  • 18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H

Product Weight
  • 0.4kg (0.9lbs) approx.

Shipping Dimensions
  • 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
