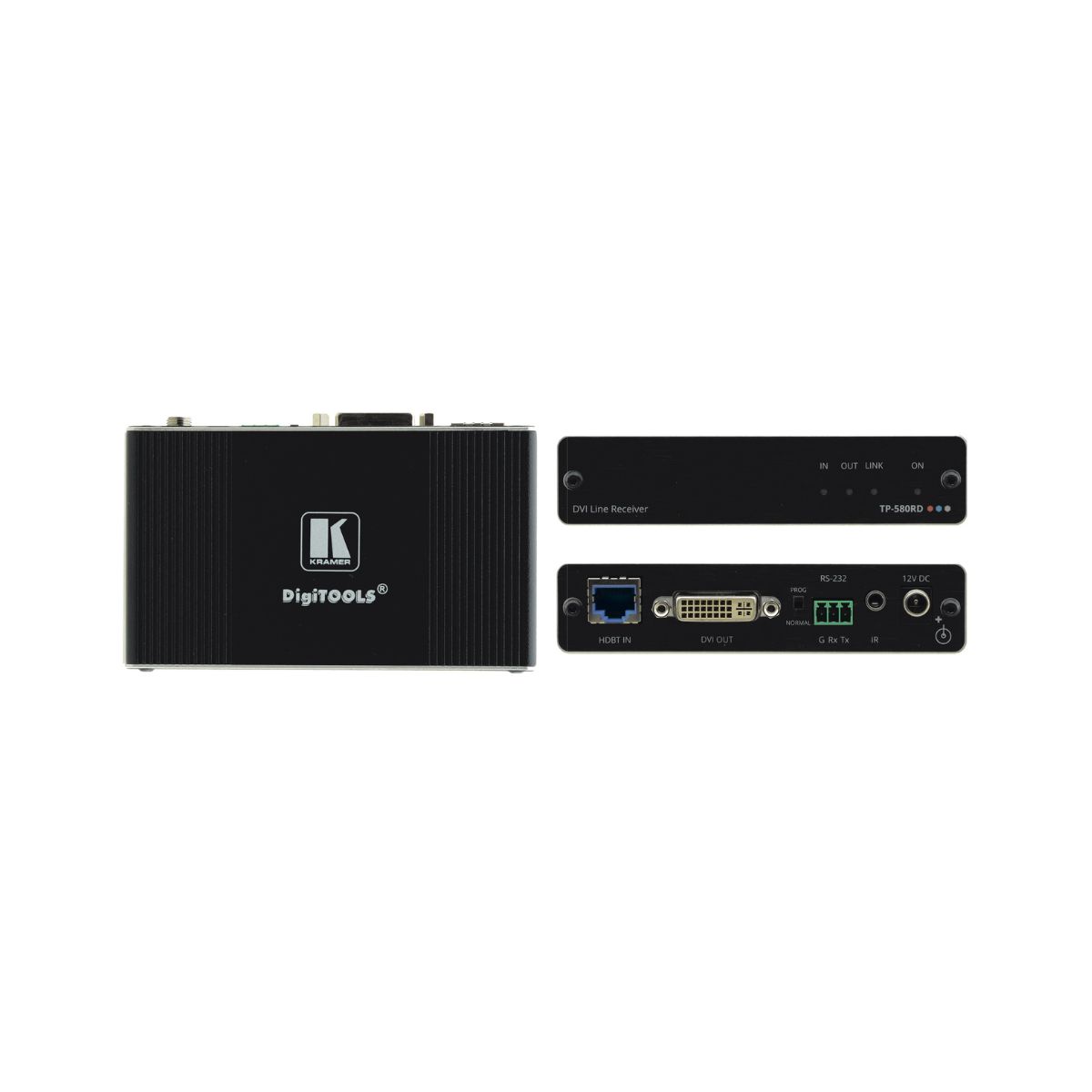

TP-580RD

TP−580RD is a high−performance, long−reach HDBaseT receiver for 4K@60Hz (4:2:0) DVI/HDMI, RS−232, and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions

Contact to Seller
  • HDBaseT 1.0 receiver
  • Lockable wiring connection
  • Up to 70m (230ft) at 1080p
  • Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Up to 4K@60Hz (4:2:0) 24bpp video resolution
  • Control extension
Download Product catalog

Inputs
  • 1 HDBaseT: On an RJ–45 connector

Outputs
  • 1 DVI-D/HDMI: On a female DVI–I connector

Ports
  • 1 IR: On a 3.5mm mini jack (for IR link extension)
  • 1 RS−232: On a 9–pin D–sub connector for serial link extension and device firmware upgrade

Extension Line
  • Compliance: HDBaseT 1.0
  • Up to 40m (130ft): At 4K@60Hz (4:2:0) (When using Kramer HDBaseT cables)
  • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp) (When using Kramer HDBaseT cables)

Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Supported Resolution: 4K@60Hz (4:2:0) 24bpp
  • Standards Compliance: HDCP 2.2

Power
  • Source: 12V DC, 2A
  • Consumption: 12V DC, 275mA
