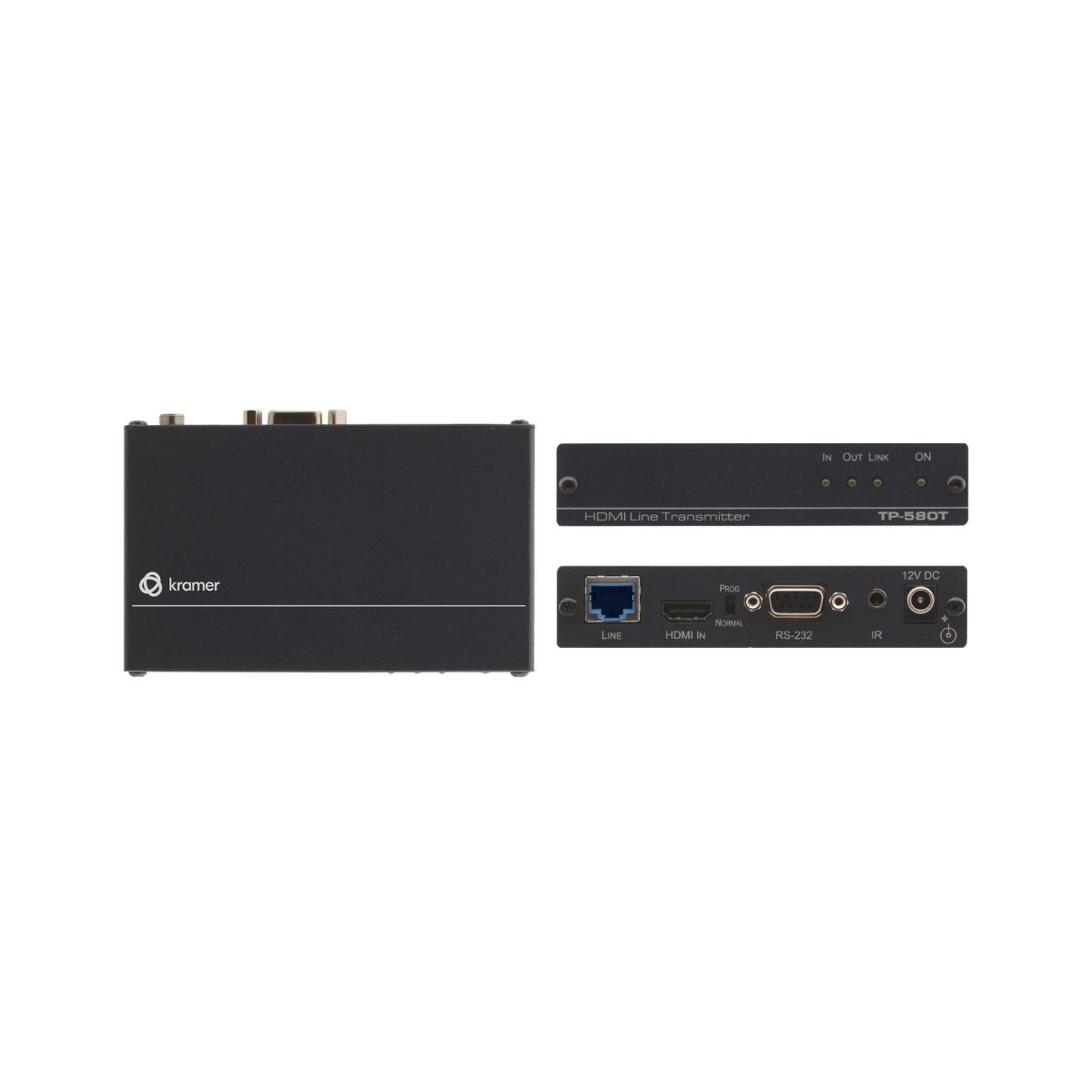

TP-580T

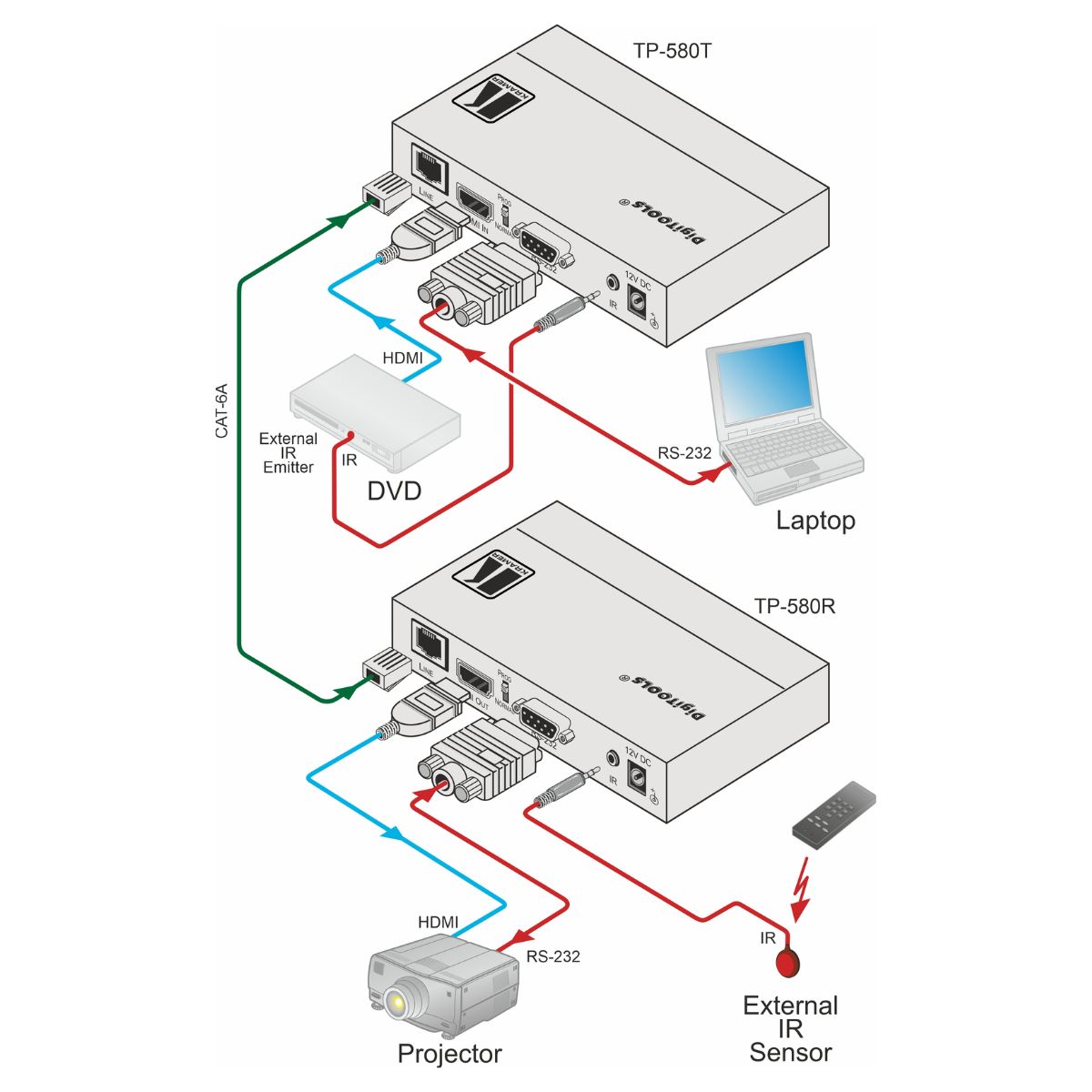

TP−580T is a high−performance, long−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, RS−232, and IR signals over twisted pair. TP−580T converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Contact to Seller
  • HDBaseT 1.0 transmitter
  • Up to 70m (230ft) at 1080p
  • Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Up to 4K@60Hz (4:2:0) 24bpp video resolution
  • Control extension

INPUTS
  • 1 HDMI on an HDMI connector

OUTPUTS
  • 1 HDBT on an RJ–45 female connector

PORTS
  • 1 IR on a 3.5mm mini jack for IR link extension,
  • 1 RS–232 on a 9–pin D–sub connector for serial link extension and device firmware upgrade

EXTENSION LINE
  • HDBaseT 1.0 compliant
  • Up to 40m (130ft) at 4K @60Hz (4:2:0)
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
  • Note: When using Kramer HDBaseT cables

VIDEO
  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDCP 2.2 signal compliance

EXTENDED RS-232
  • 300 to 115200 baud rate
