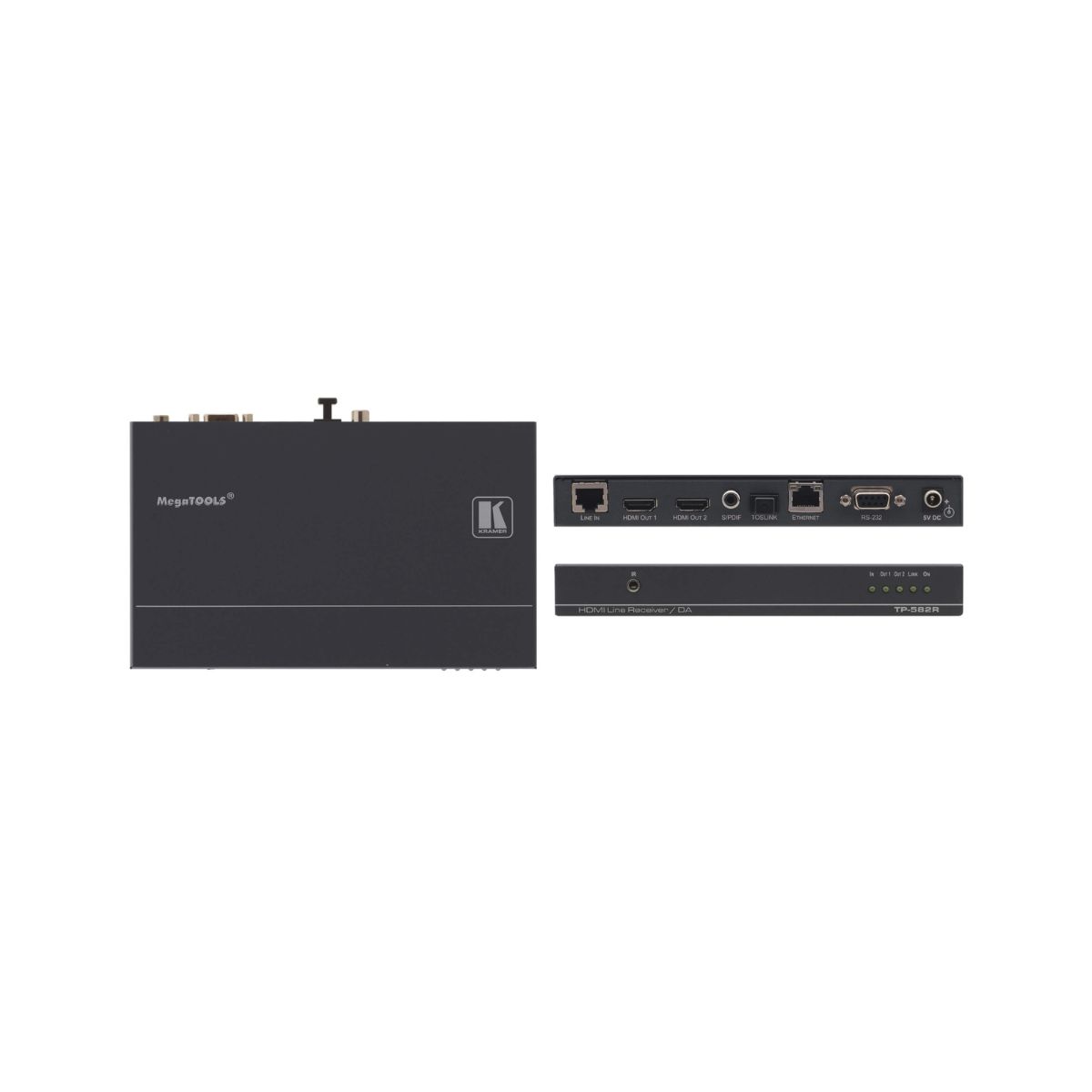

TP-582R

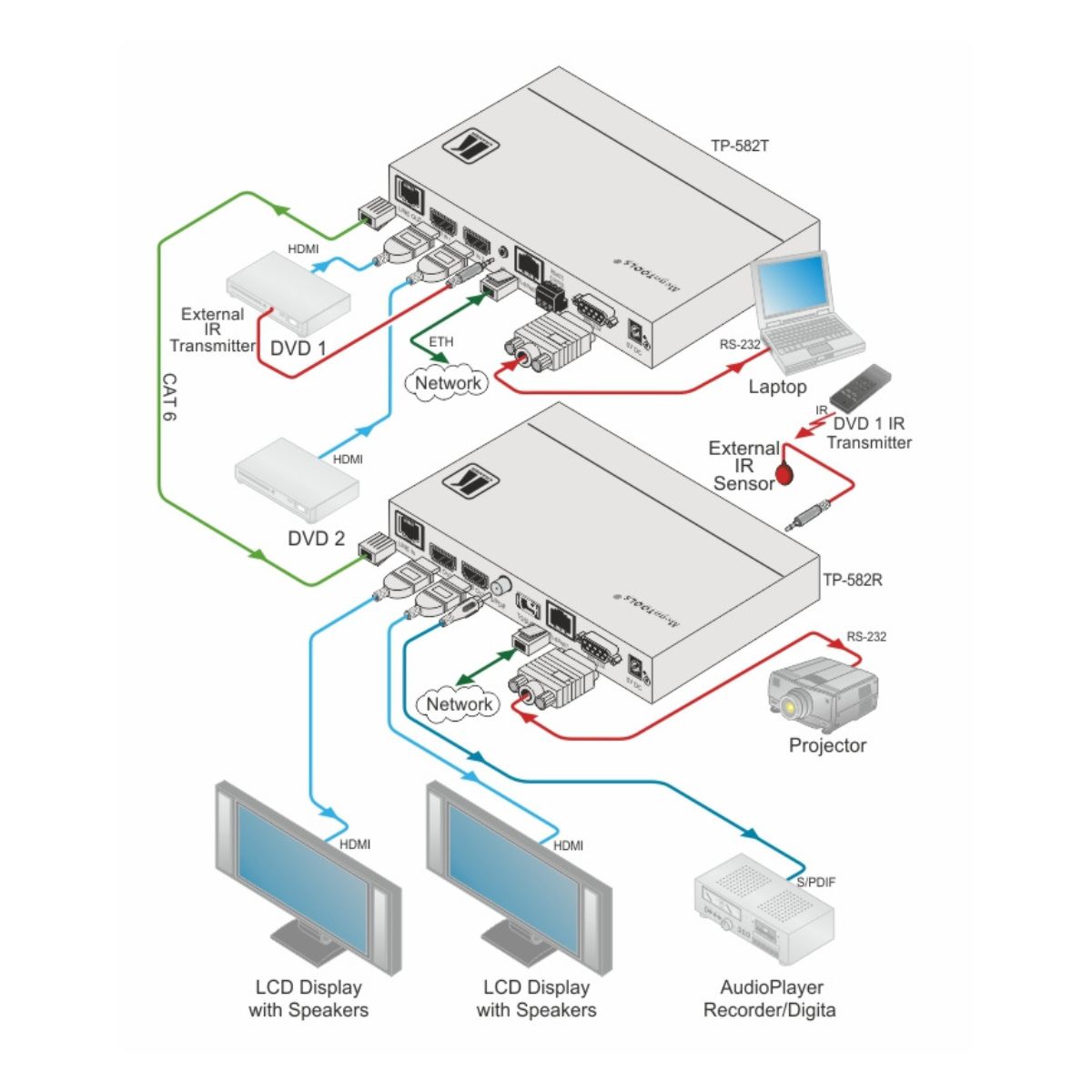

TP−582R is a high−performance, extended−reach HDBaseT receiver for 2 mirrored 1080p60Hz HDMI, Ethernet, RS−232, and IR signals over twisted pair. The TP−582R converts the transmitted HDBaseT signal to all output signals and de−embeds the audio to S/PDIF and TOSLINK® audio outputs. It extends video signals to up to 130m (430ft) over CAT copper cables at up to 1080p@60Hz 36bpp video resolution.

Contact to Seller
  • HDBaseT 1.0 receiver
  • 2 mirrored HDMI outputs
  • Up to 130m (430ft) at 1080p
  • Up to 1080p@60Hz 36bpp video resolution
  • Ethernet & control signal extension
  • Stereo digital audio de–embedding (drop–and–continue)

INPUTS
  • 1 HDBaseT RJ–45 female connector

OUTPUTS
  • 2 HDMI on HDMI connectors,
  • 1 TOSLINK® digital audio on optical connector,
  • 1 S/PDIF digital audio on an RCA connector

PORTS
  • 1 IR on a 3.5mm mini jack for IR link extension,
  • 1 RS–232 on a 9–pin D–sub connector for serial link extension,
  • 1 10Base–T/100BaseTx Ethernet on an RJ–45 female connector for LAN extension

EXTENSION LINE
  • HDBaseT 1.0 compliant
  • Up to 130m (430ft) at full HD (1080p @60Hz 36bpp)
  • Note: When using Kramer HDBaseT cables

VIDEO
  • Up to 6.75Gbps bandwidth (2.25Gbps per graphic channel),
  • Up to 1080p@60Hz 36bpp resolution,
  • HDCP 2.2 signal compliance

EXTENDED ETHERNET
  • Up to 100Mbps extended line rate bandwidth
