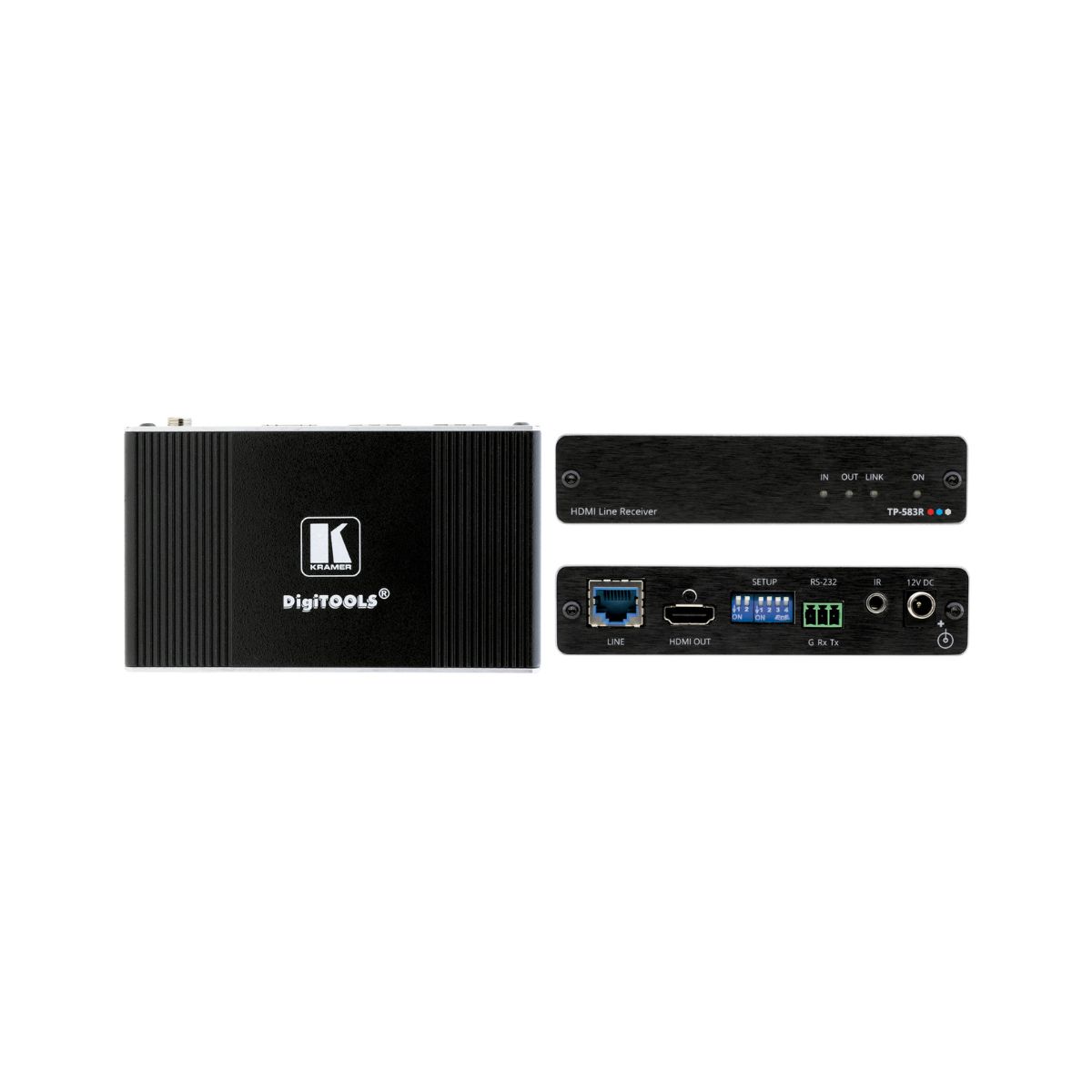

TP-583R

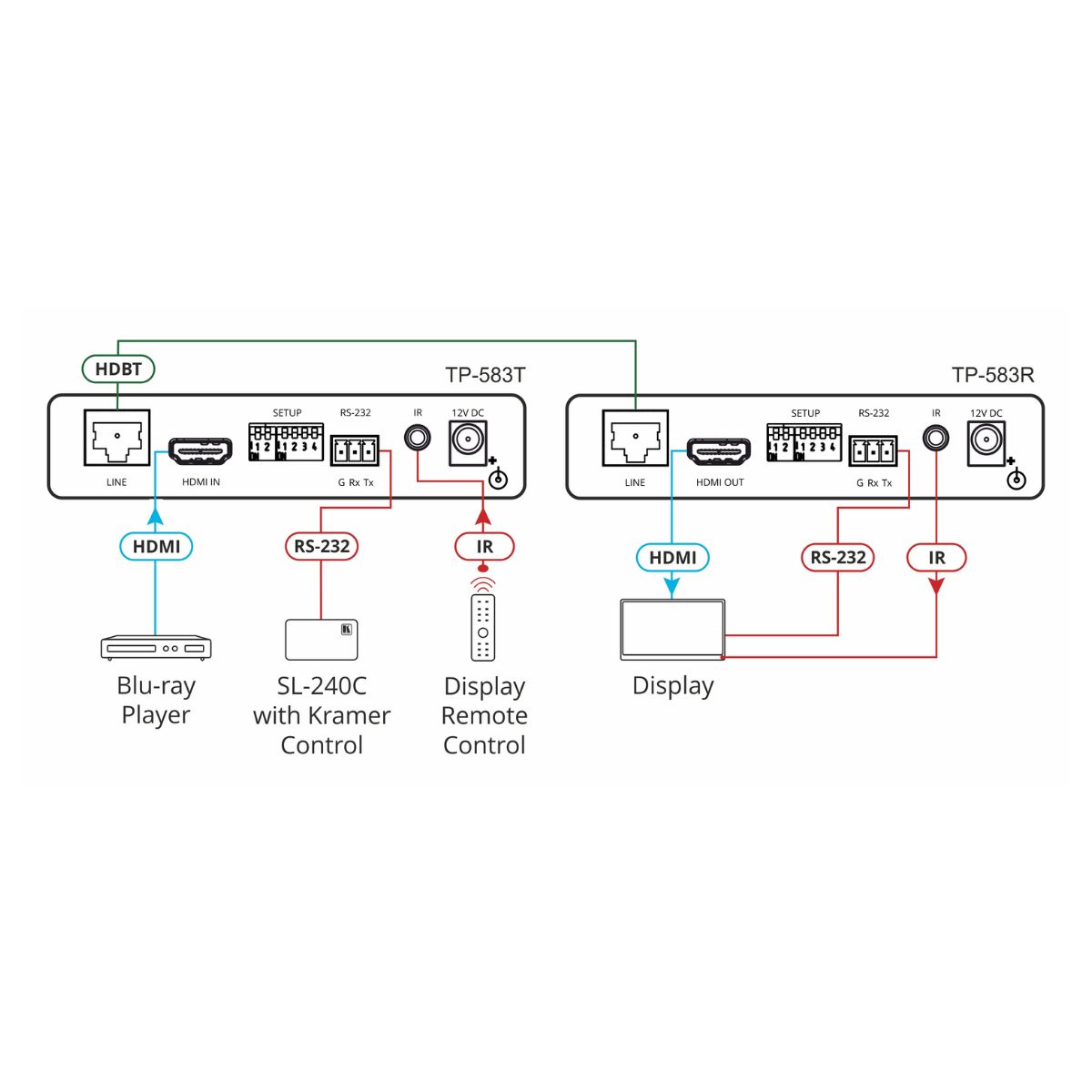

TP−583R is a high−performance, long−reach HDBaseT receiver for 4K HDR HDMI, RS−232 and IR signals over twisted pair. TP−583R converts the HDBaseT signal and outputs it to its HDMI and control ports. It enables extending video signals to up to 70m (230ft) over Kramer copper cables at up to 4K@60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT−compliant extenders at 4K@30Hz and HD video resolutions.

Contact to Seller
  • HDBaseT 1.0 receiver
  • Up to 40m (130ft) at 4K@60Hz (4:4:4)
  • Up to 70m (230ft) at up to 4K@30Hz (4:4:4)
  • Bidirectional RS–232 & IR control extension

Inputs
  • 1 HDBT: On an RJ–45 connector

Outputs
  • 1 HDMI: On a female HDMI connector

Ports
  • 1 RS-232: On a 3–pin terminal block connector for serial link extension
  • 1 IR: On a 3.5mm mini jack connector

Extension Line
  • Standard Compression: Up to 40m (130ft) at 4K@60Hz (4:4:4) or 4K@60Hz (4:2:0)
  • Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
  • High Compression: Up to 70m (230ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0), or full HD (1080p @60Hz 36bpp)

Video
  • Max Data Rate: Up to 18Gbps (6Gbps per graphic channel)
  • Standard Compression Max Resolution: 4096x2160@60Hz (4:4:4) 24bpp
  • High Compression Max Resolution: 3840x2160@60Hz (4:4:4) 24bpp
  • No Compression Max Resolution: 4096x2160@60Hz (4:2:0) 24bpp

EXTENDED BIDIRECTIONAL RS-232
  • 300 to 115200 baud rate
