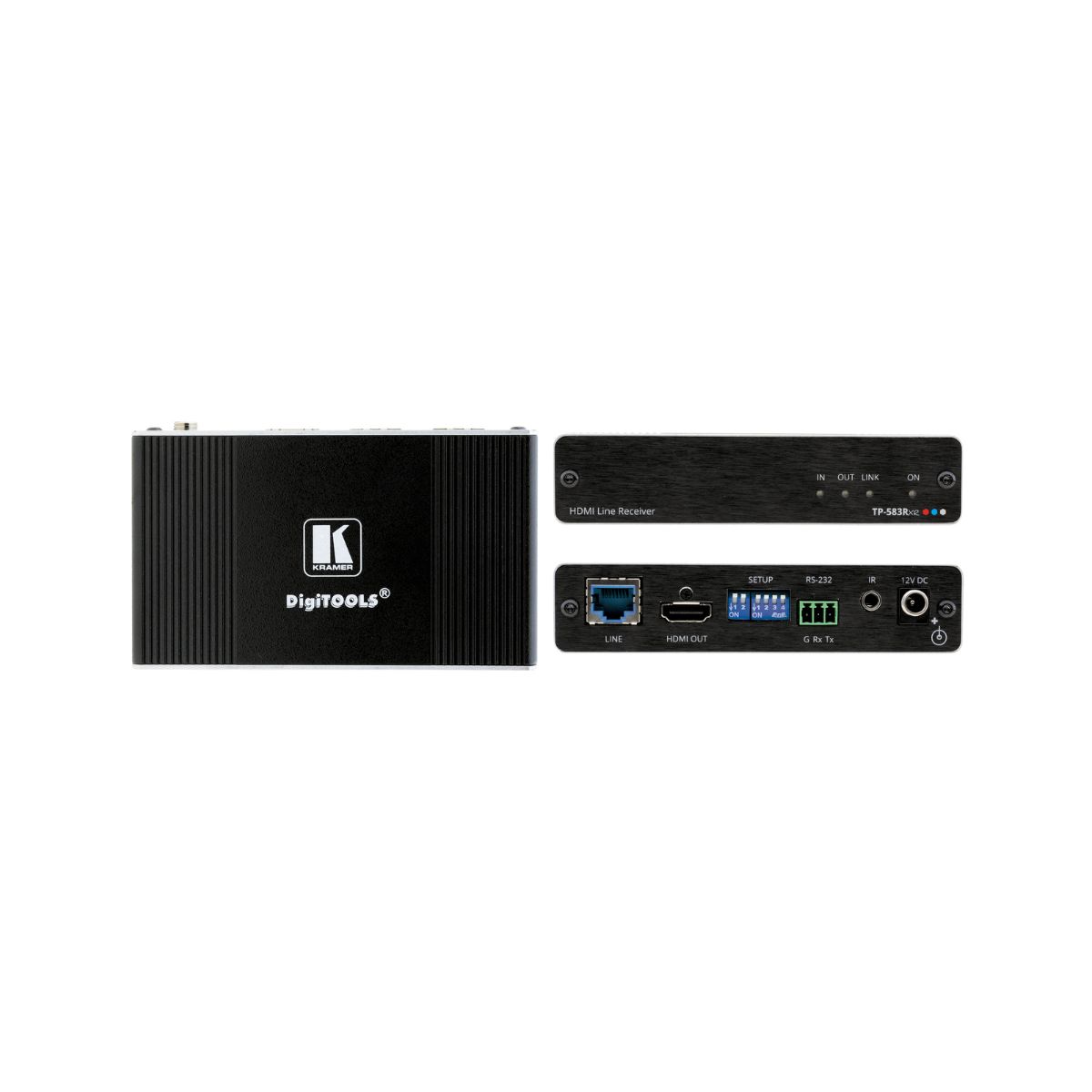

TP-583Rxr

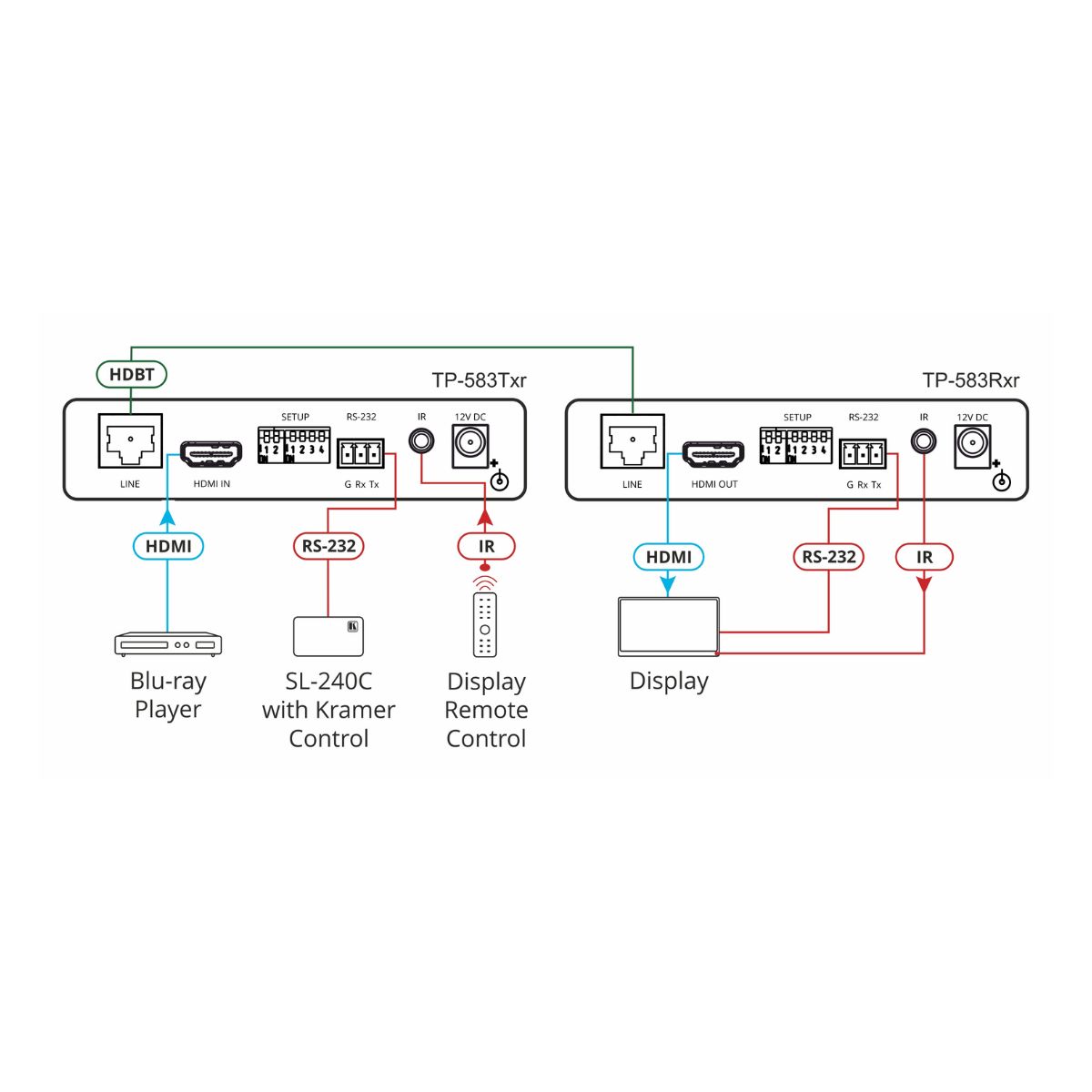

TP−583Rxr is a high−performance, extended−reach HDBaseT receiver for 4K HDR HDMI, RS−232 and IR signals over twisted pair. TP−583Rxr converts the HDBaseT signal and outputs it to its HDMI and control ports. It enables extending the video signal up to 100m (330ft) at 4K@60Hz (4:4:4) video resolution, up to 180m (590ft) at 4K@30Hz (4:4:4), and up to 200m (650ft) at HD video resolution over Kramer copper cables.

Contact to Seller
  • HDBaseT 1.0 receiver
  • Up to 100m (330ft) at 4K@60Hz (4:4:4)
  • Up to 180m (590ft) at 4K@30Hz (4:4:4)
  • Up to 200m (650ft) at 1080p
  • Bidirectional RS–232 & IR control extension

Inputs
  • 1 HDBT: On an RJ–45 connector

Outputs
  • 1 HDMI: On a female HDMI connector

Ports
  • 1 RS-232: On a 3–pin terminal block connector for serial link extension
  • 1 IR: On a 3.5mm mini jack connector

Extension Line
  • Standard Compression: Up to 100m (330ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0), or 4K@30Hz (4:4:4)
  • Up to 180m (590ft) at full HD (1080p @60Hz 24bpp)
  • High Compression: Up to 100m (330ft) at 4K@60Hz (4:4:4), or 4K@60Hz (4:2:0)

Video
  • Max Data Rate: Up to 18Gbps (6Gbps per graphic channel)
  • Standard Compression Max Resolution: 4096x2160@60Hz (4:4:4) 24bpp
  • High Compression Max Resolution: 3840x2160@60Hz (4:4:4) 24bpp
  • No-Compression Max Resolution: 4096x2160@60Hz (4:2:0) 24bpp
  • Compliance: HDCP 2.2, HDR 10

EXTENDED BIDIRECTIONAL RS-232
  • 300 to 115200 baud rate
