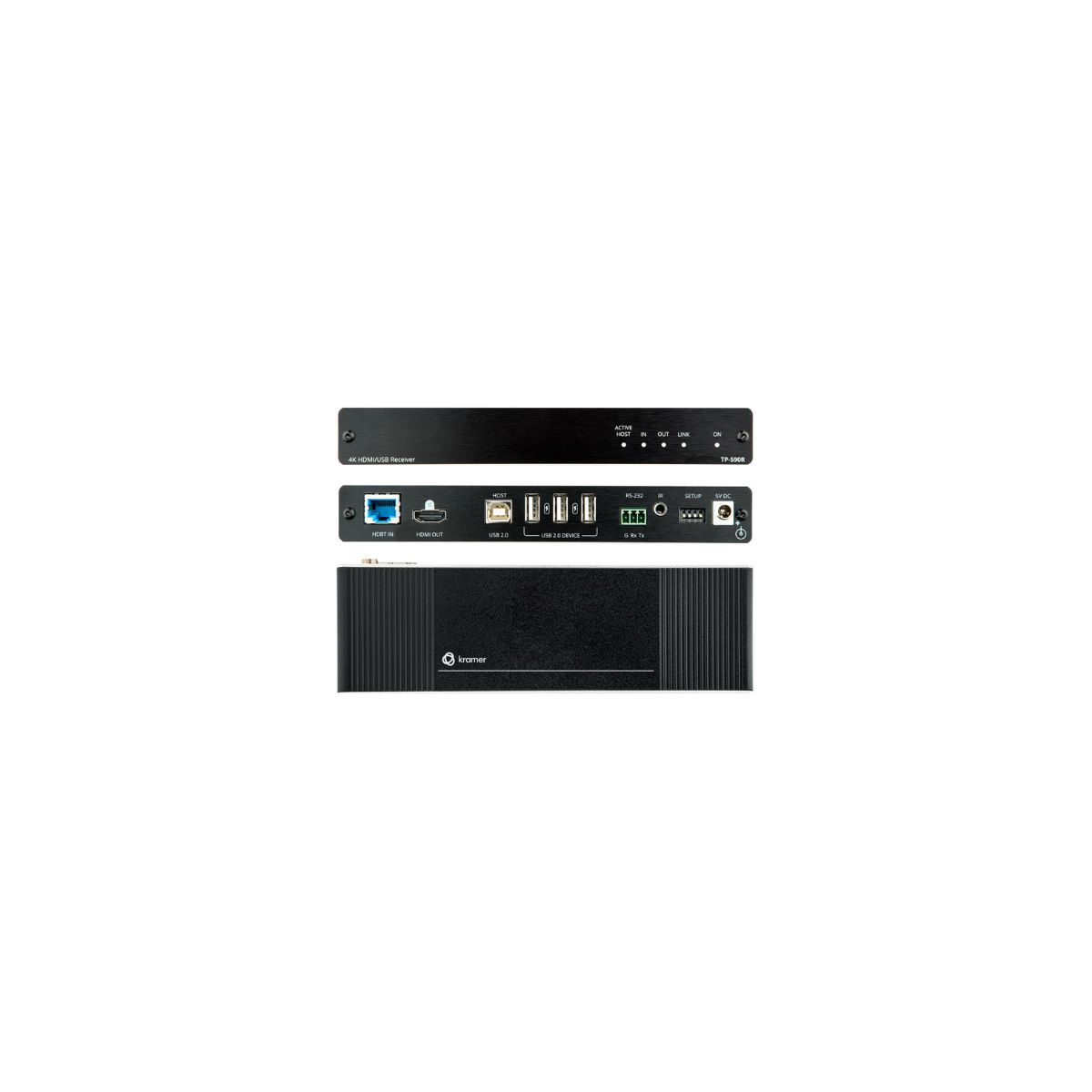

TP-590R

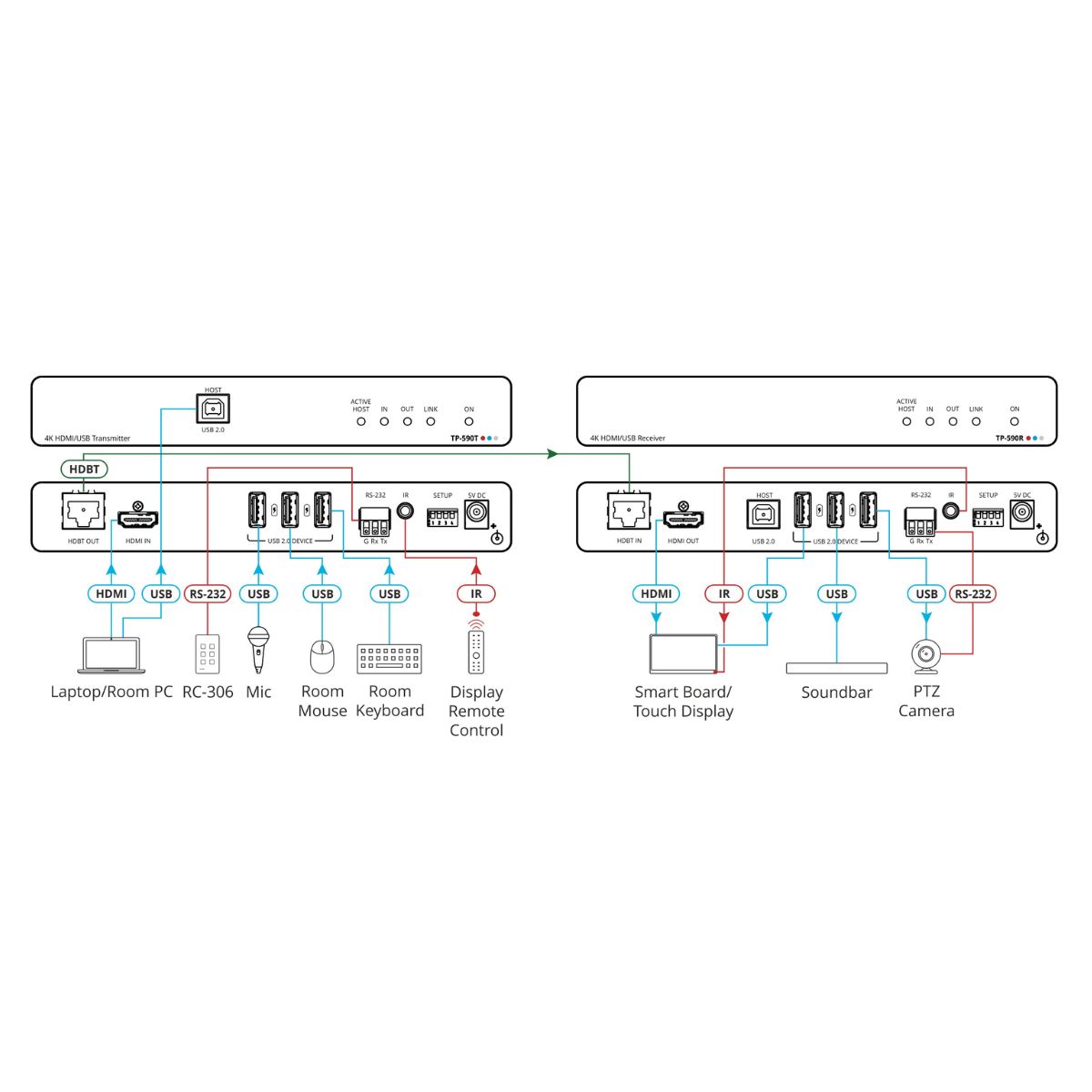

TP−590R is a high−performance, long−reach HDBaseT 2.0 receiver for 4K60Hz (4:2:0) HDMI, USB, RS−232, and IR signals over twisted pair. TP−590R receives the HDBaseT 2.0 signal and converts it back into the original input signals. It extends video signals up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Contact to Seller
  • Flexible USB 2.0 host & devices extension
  • Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Compatible with standard HDBaseT 2.0 systems

Inputs
  • 1 HDBT: On an RJ–45 female connector

Outputs
  • 1 HDMI: On an HDMI connector

Ports
  • 1 USB 2.0 Host: On a USB–B connector
  • 3 USB 2.0 Device: On USB Type–A connectors
  • 1 IR: On a 3.5mm mini jack for IR link extension,
  • 1 RS–232: On a 3–pin terminal block for serial link extension

USB Features
  • Integrated USB Hubs: 1

Extension Line
  • Up to 40m (130ft): At 4K @60Hz (4:2:0):
  • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp)
  • Note: When using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 2.0

Video
  • Max Data Rate: 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Max Resolution: 4K UHD @60Hz (4:2:0) 24bpp resolution
  • Content Protection: HDCP 2.3
  • HDMI Support: 4K as specified in HDMI 2.0
