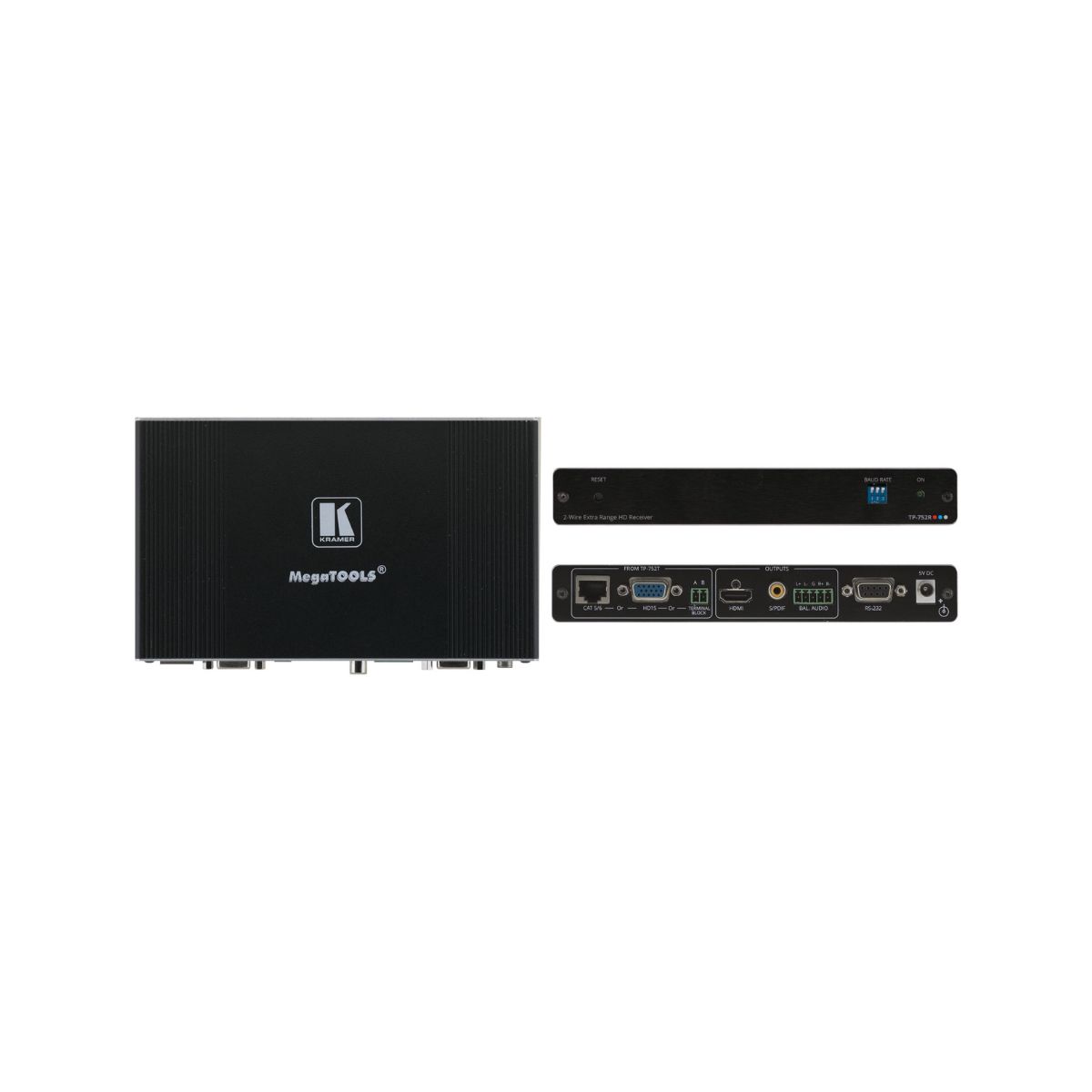

TP-752R

TP−752R is a high−performance receiver for extending 1080p (HD) HDMI signals over distances of up to 600m (2000ft) using any 2−wire cabling. TP−752R supports diverse cabling and connector options for typical long-distance and legacy installations.

Contact to Seller
  • Range — Extends HD signals up to 600m (2000ft)
  • Bi–directional RS–232 control/transmission
  • Uses existing legacy cables
  • Diverse cabling options

Inputs
  • 1 2-wire extra range HD signal on any one of the following connectors: RJ–45, 15–pin HD, or 2–pin terminal block

Outputs
  • 1 HDMI: On a female HDMI connector
  • 1 S/PDIF: On an RCA connector
  • 1 Balanced Stereo Audio: On a 5–pin terminal block connector

Ports
  • RS-232: On a 9–pin D–sub connector for serial link extension

Video
  • Max Resolution: 1080p60
  • Compliance: HDCP 1.4

Audio
  • Support: 2.0 channel PCM, 48kHz/44.1kHz sampling rate
  • Bandwidth: 12kHz
  • Analog THD + NOISE: 0.08% @1kHz at nominal level

System Latency
  • 0.5sec
