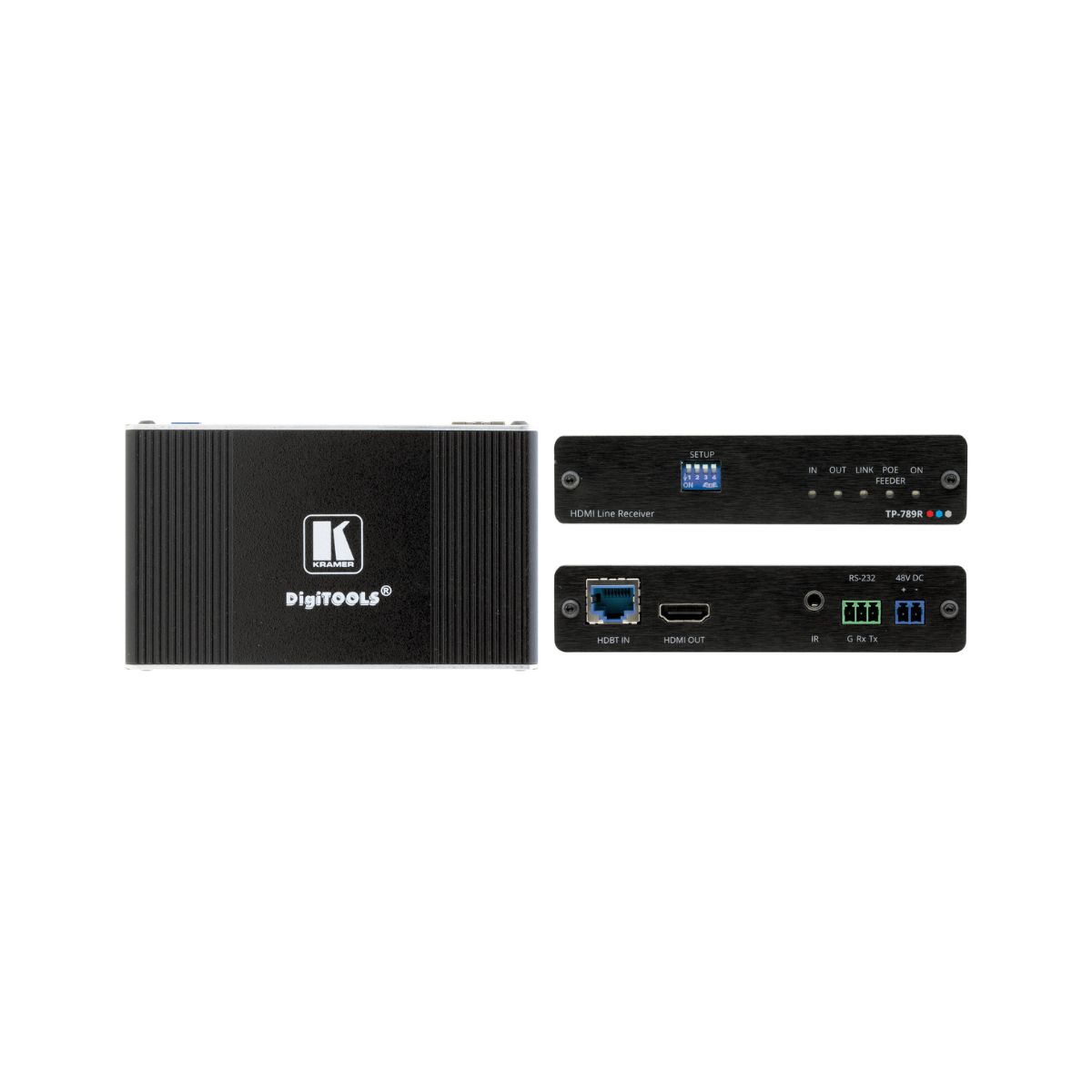

TP-789R

TP−789R is a high−performance, long−reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS−232 and IR signals and two−way powering over twisted pair. It extends video signals to up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Contact to Seller
  • HDBaseT 1.0 receiver
  • Bidirectional PoE (Power over Ethernet/HDBaseT)
  • Up to 70m (230ft) at 1080p
  • Up to 40m (130ft) at 4K@60Hz (4:2:0)
  • Control extension

Inputs
  • 1 HDBT: On a female RJ–45 connector

Outputs
  • 1 HDMI: On a female HDMI connector

Ports
  • 1 IR: On a 3.5mm mini jack connector for IR link extension
  • 1 RS-232: On a 3–pin terminal block connector for serial link extension and device firmware upgrade

Extension Line
  • Up to 40m (130ft): At 4k@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p@60Hz)
  • Note: When using Kramer HDBaseT cables
  • Standards Compliance: HDBaseT 1.0

Video
  • Max Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max Resolution: 4K@60Hz (4:2:0) 24bpp resolution

Extended RS-232
  • 300 to 115200 baud rate
