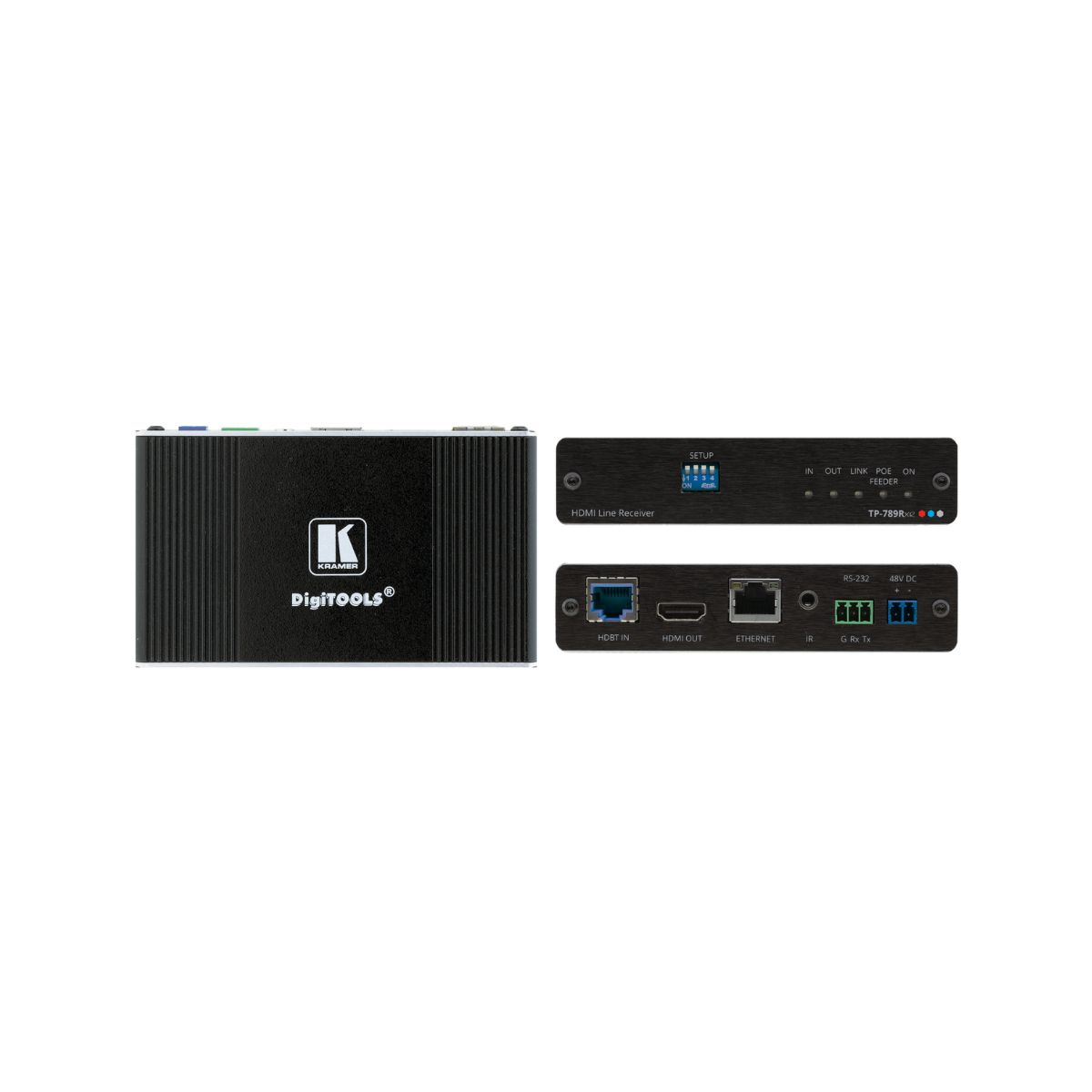

TP-789Rxr

TP−789Rxr is a high−performance, extended−reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, Ethernet, RS−232 and IR signals and 2−way powering over twisted pair. It extends video signals to up to 100m (330ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Contact to Seller
  • HDBaseT 1.0 receiver
  • Bidirectional PoE (Power over Ethernet/HDBaseT)
  • Up to 180m (590ft) at 1080p
  • Up to 100m (330ft) at 4K@60Hz (4:2:0)
  • Ethernet & control extension

Inputs
  • 1 HDBT: On a female RJ–45 connector

Outputs
  • 1 HDMI: On a female HDMI connector

Ports
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 RS−232: On a 3–pin terminal block connector for serial link extension and device firmware upgrade
  • 1 100BaseT Ethernet: On an RJ–45 female connector for LAN extension

Extension Line
  • Up to 100m (330ft): At 4K@60Hz (4:2:0)
  • Up to 130m (430ft): At full HD (1080p @60Hz 36bpp)
  • Up to 180m (590ft): At HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)

Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0) 24bpp resolution

Extended Ethernet
  • Up to 100Mbps extended line rate bandwidth
