UHD-OUT2-F16

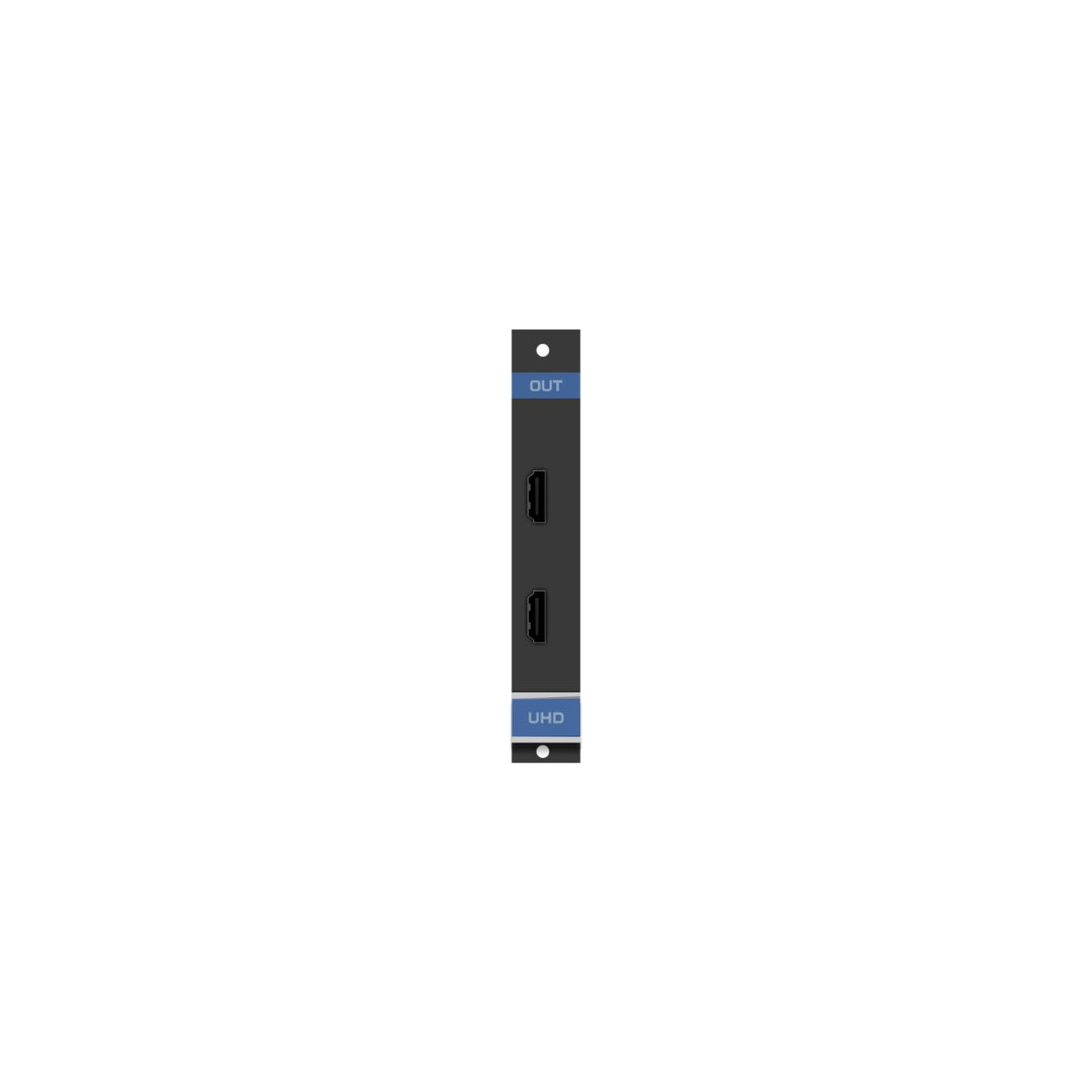

UHD−OUT2−F16 is a two−channel 4K@60Hz (4:2:0) HDMI output card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The UHD−OUT2−F16 outputs two HDMI signals from the chassis.

Contact to Seller
  • Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).
  •  Resolution Support — Up to 4K@60Hz (4:2:0).
  •  HDMI Support — 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  EDID Capture — Copies and stores the EDID from a display device.
  •  3D Pass–Through.
Download Product catalog

PORTS
  • 2 HDMI

BANDWIDTH PER CHANNEL
  • 2.97Gbps per graphics channel

TOTAL BANDWIDTH
  • 8.91Gbps data rate

MAXIMUM RANGE
  • 10m (32ft) — 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) — 1080p 12 bit (deep color)

3D PASS THROUGH
  • Supported

HDMI SUPPORT
  • 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, 7.1 multi–channel audio
