UHDA-OUT4-F32

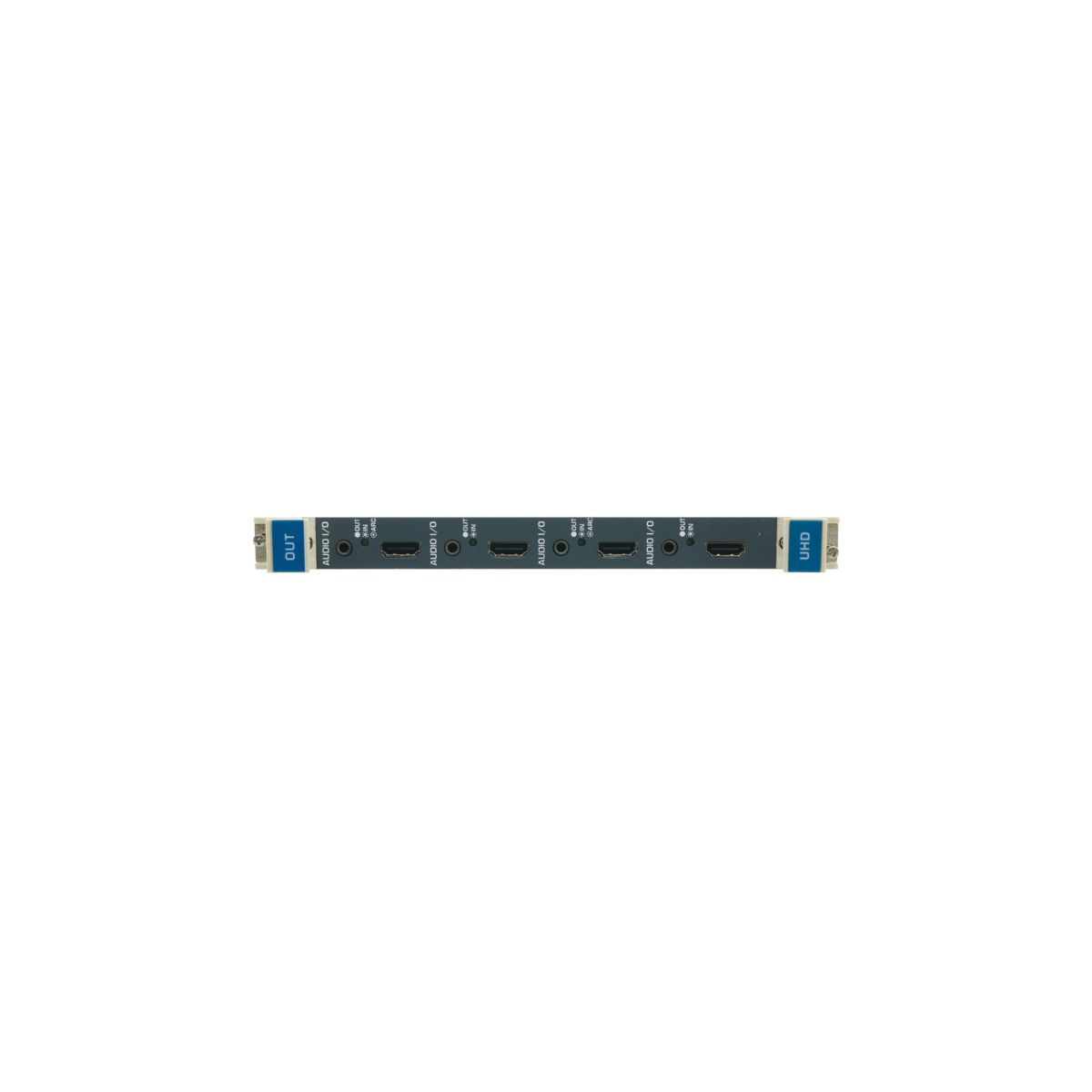

UHDA−OUT4−F32 is a four−channel 4K@60Hz (4:2:0) HDMI output card with configurable analog audio features for the VS−3232DN−EM Modular Multi−Format Digital Matrix Switcher. UHDA−OUT4−F32 outputs four 4K HDMI signals with selectable embedded, de−embedded, or ARC unbalanced stereo analog audio.

Contact to Seller
  • Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
  •  Max. Resolution — 4K@60Hz (4:2:0).
  •  HDMI Support — 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
  •  Selectable Analog Audio Mode — On the top and third jacks, select embedded, de–embedded, or ARC. On the second and bottom jacks, select embedded or de–embedded.
  •  HDTV Compatible.
  •  HDCP Compliant.
Download Product catalog

Outputs
  • 4 HDMI, 4 Analog audio on 3.5mm mini jacks

BANDWIDTH PER CHANNEL
  • 2.97Gbps per graphics channel

TOTAL BANDWIDTH
  • 8.91Gbps data rate

MAXIMUM RANGE
  • 10m (32ft) — 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) — 1080p 12 bit (deep color)

3D PASS THROUGH
  • Supported

STANDARD COMPLIANCE
  • HDCP 1.4, HDTV compatible
