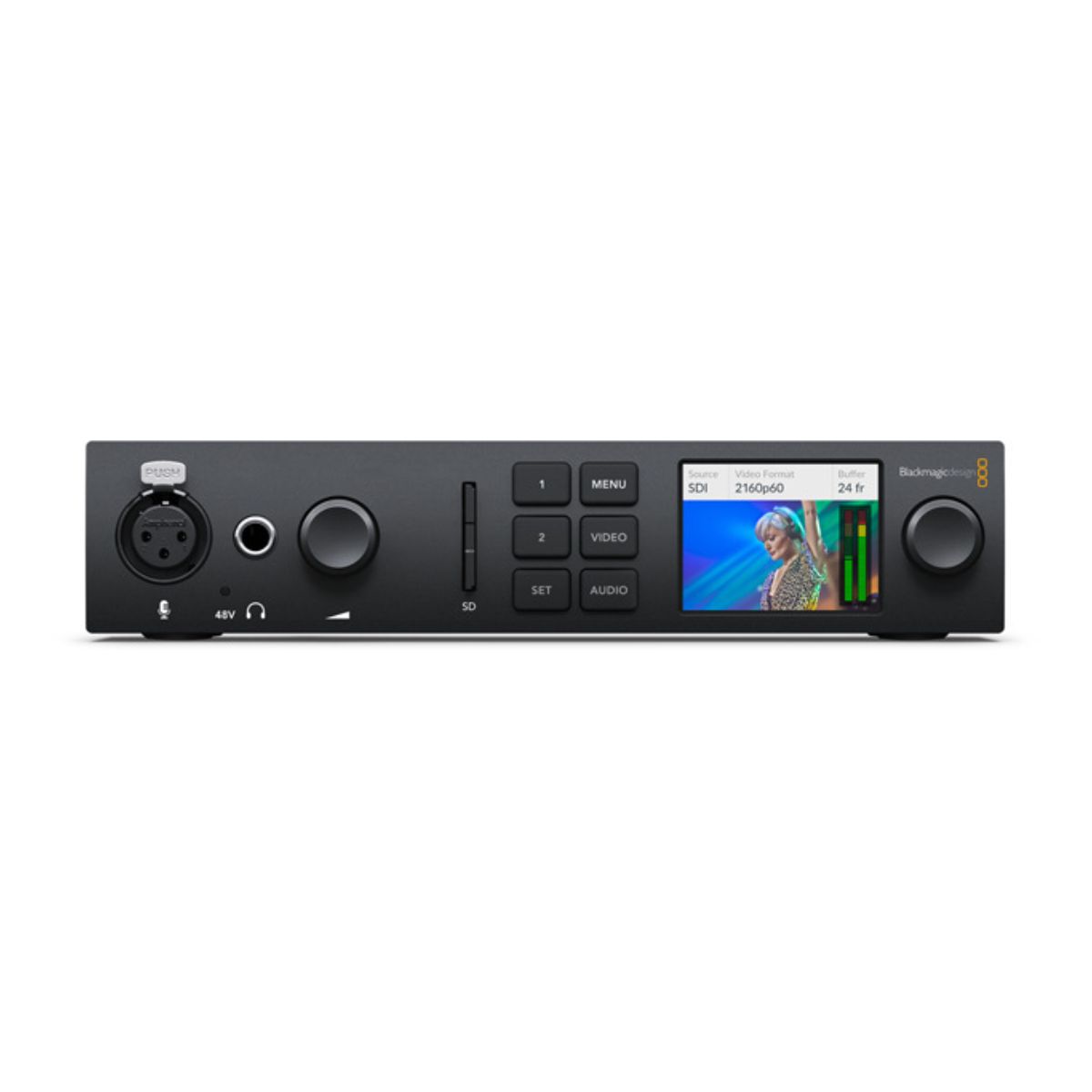

UltraStudio 4K Mini
UltraStudio 4K Mini is a portable Thunderbolt 3 capture and playback solution packed with the latest broadcast technology! You get broadcast-quality 8 and 10‑bit high dynamic range capture in all formats up to 4K DCI at 60p, and 12‑bit high dynamic range capture in all formats up to 4K DCI at 30p. Plus, the built-in SD card reader lets you mount camera media directly on your computer so you can start editing immediately!

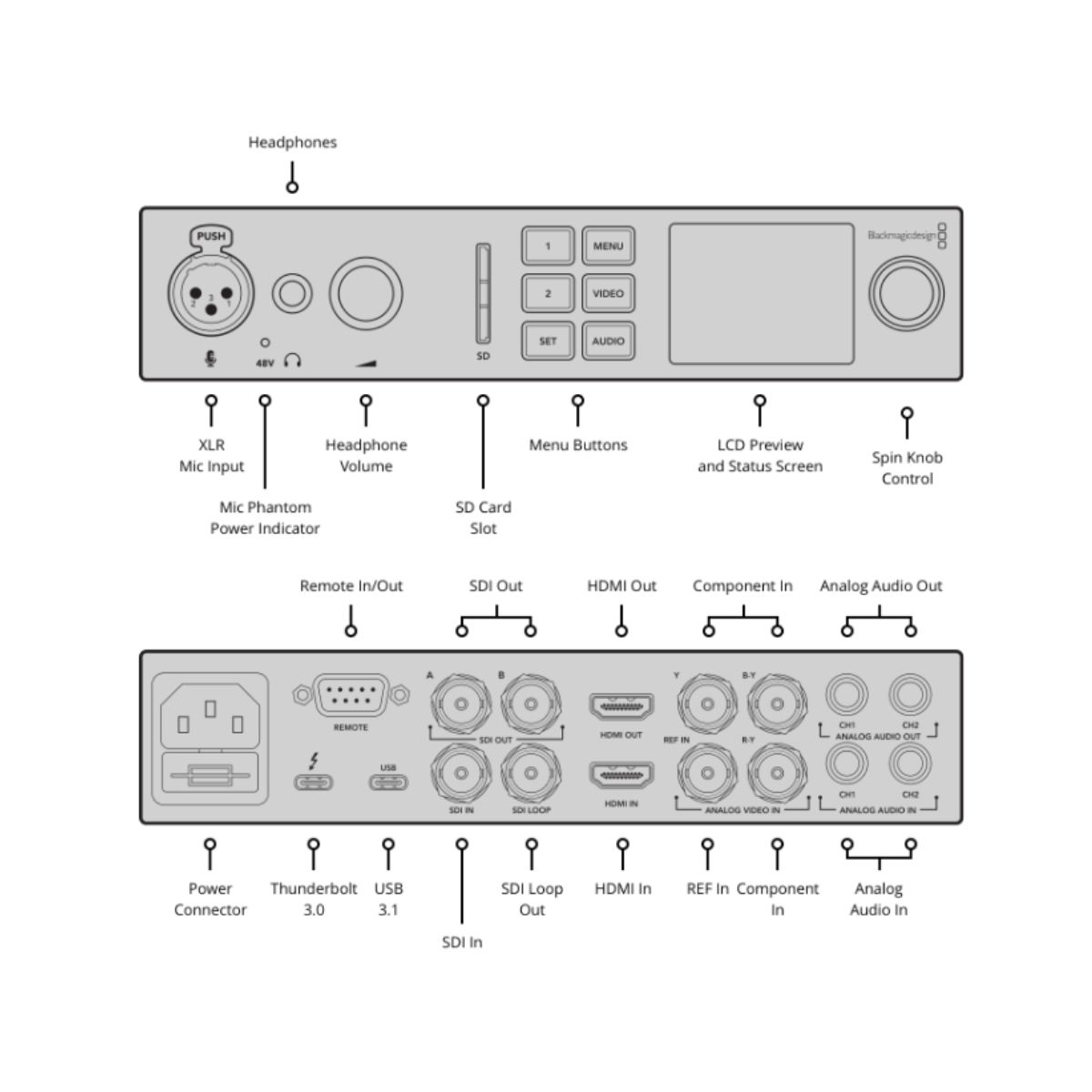

Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
2 x program out, 1 x loop out. |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
Analog Video Inputs |
Component YUV or Composite NTSC/PAL. The component is switchable between SD and HD. |
|
Analog Audio Inputs |
2 channels of professional balanced analog audio with 1/4 inch Jack connectors. |
|
Analog Audio Outputs |
2 channels of professional balanced analog audio with 1/4 inch Jack connectors. |
|
SDI Audio Inputs |
16 Channels embedded in SD/HD/2K/UHD/4K. |
Power Requirements
Power Supply
1 x Internal 100 - 240V AC
Power Usage
75.3W max
