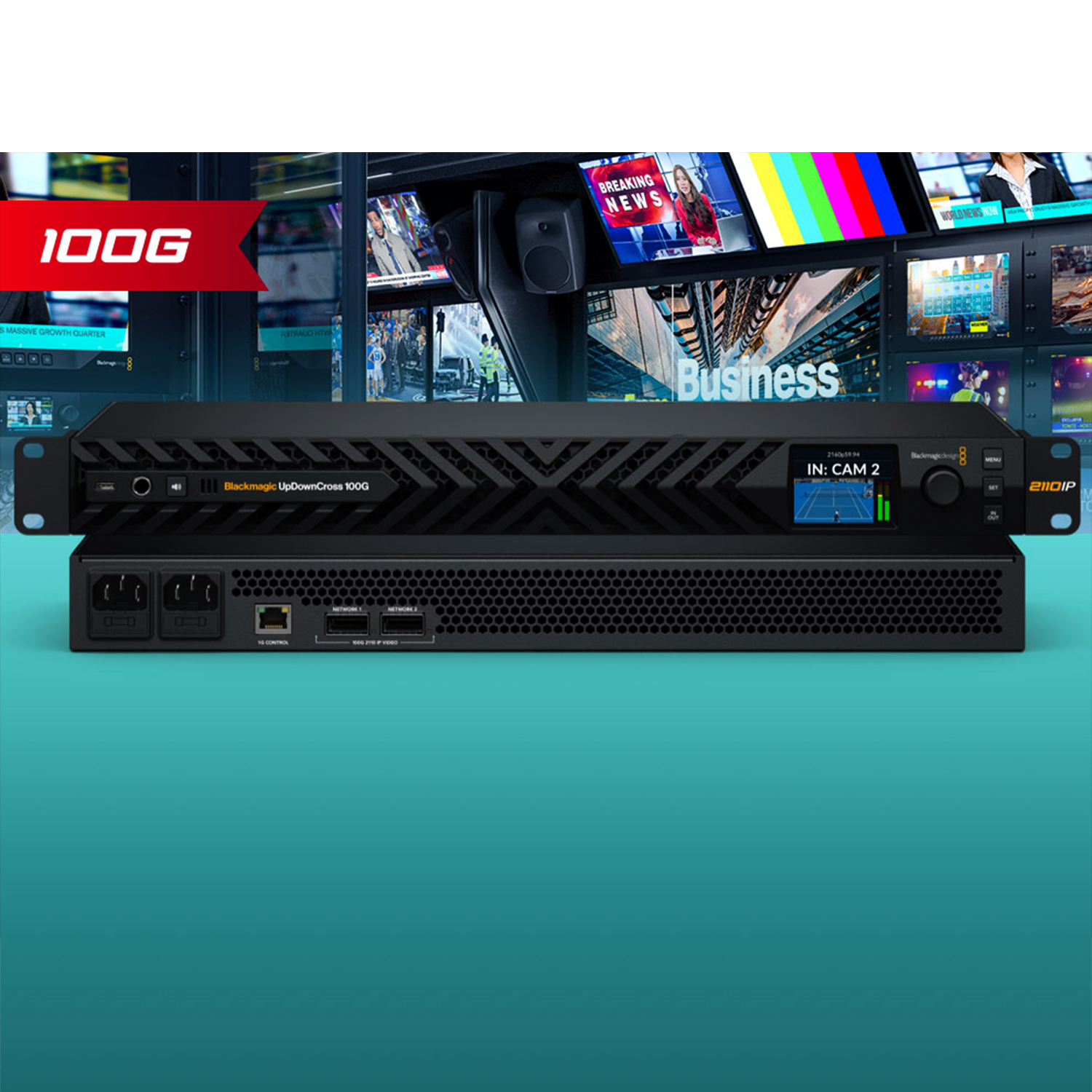

UpDownCross 100G
Get 8 channels of Up, Down, and Cross conversion over 100G Ethernet SMPTE-2110! Supports SD, HD and Ultra HD and SMPTE-2022-7 redundancy.
Connections
- Total Video Inputs
- 9
- Total Outputs
- 4
- Total Aux Outputs
- 4
- SDI Rates
- 1.5G, 3G
- HDMI Video Inputs
- 8 x HDMI type A, 10-bit HD switchable.
- 2 channel embedded audio.
- HDMI Video Outputs
- 3
- HDMI Program Outputs
- 3
- Total Audio Inputs
- 2 x XLR Combo with phantom power.
- 1 x BNC 32 Ch MADI digital audio.
- Total Audio Outputs
- 1 x 6.35mm headphone jack
- Timecode Connection
- None
- Reference Input
- None
- Video Input Re-Sync
- On all 8 HDMI inputs and remote sources
|
Operating Temperature |
5° C to 40° C (41° - 104° F) |
|
Storage Temperature |
-10° to 60° C (14° to 140° F) |
|
Relative Humidity |
0% to 90% non-condensing |
