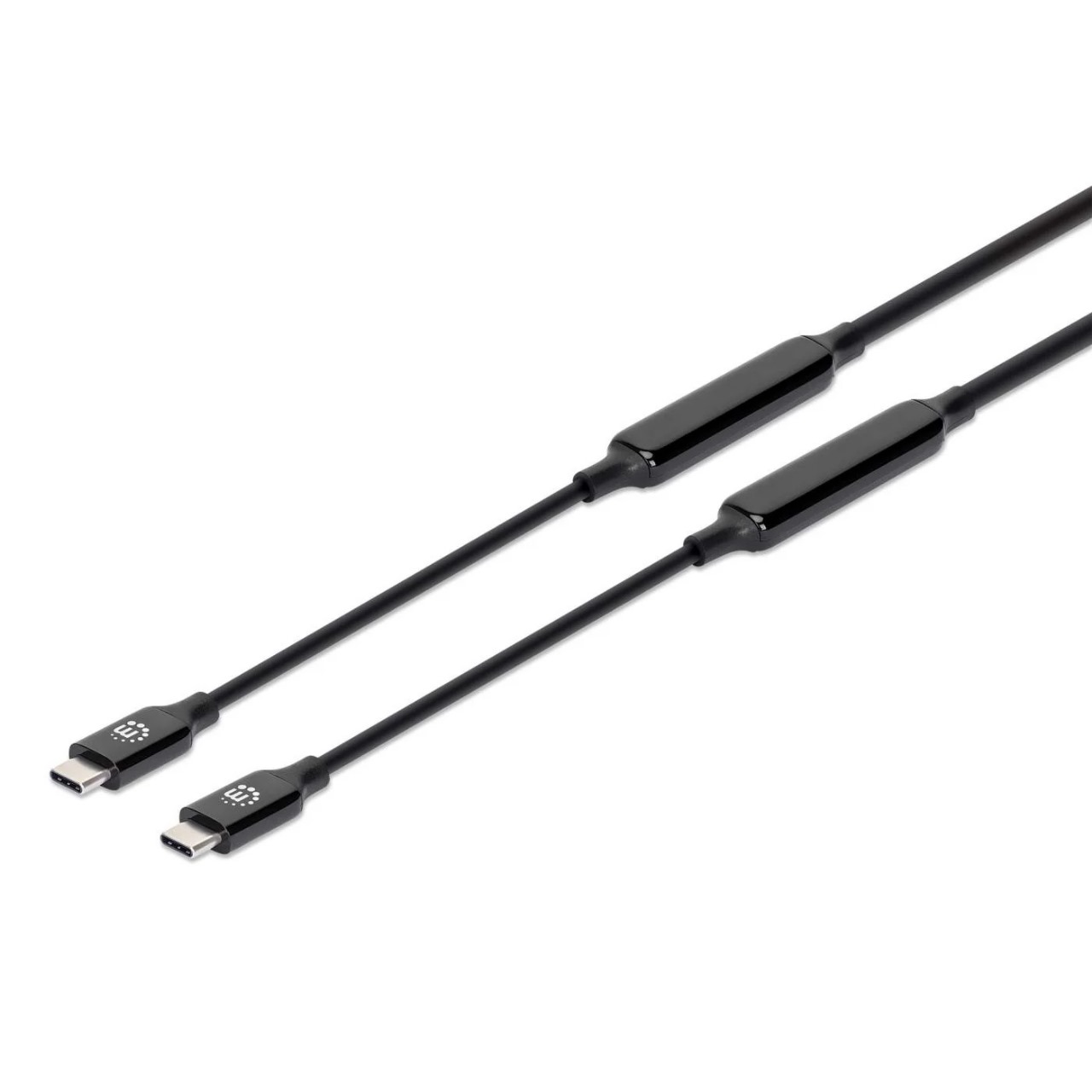

USB 3.2 Gen 2 Type-C 5 m (16 ft.) Active 355971Device Cable (355971)

The Manhattan USB 3.2 Gen 2 Type-C Active Device Cable connects USB-C devices to USB-C ports and supports ultra-fast data transfer speeds up to 10 Gbps. Aluminum foil and Mylar braid double-shielding with gold-plated contacts provide reliable, high-quality connectivity. The reversible USB-C connector allows easy connection in either direction.

Contact to Seller
  • USB-C male to USB-C male for connecting a USB-C device to a USB-C port
  • USB 3.2 Gen 2 compliant with SuperSpeed+ transfer rates up to 10 Gbps; built-in retimer maintains full 10G up to 5 m (16 ft.)
  • Overcomes the USB-C distance limitation for power, data, and video at a range up to five times higher without signal loss
  • No signal loss, ideal for laptop docking stations

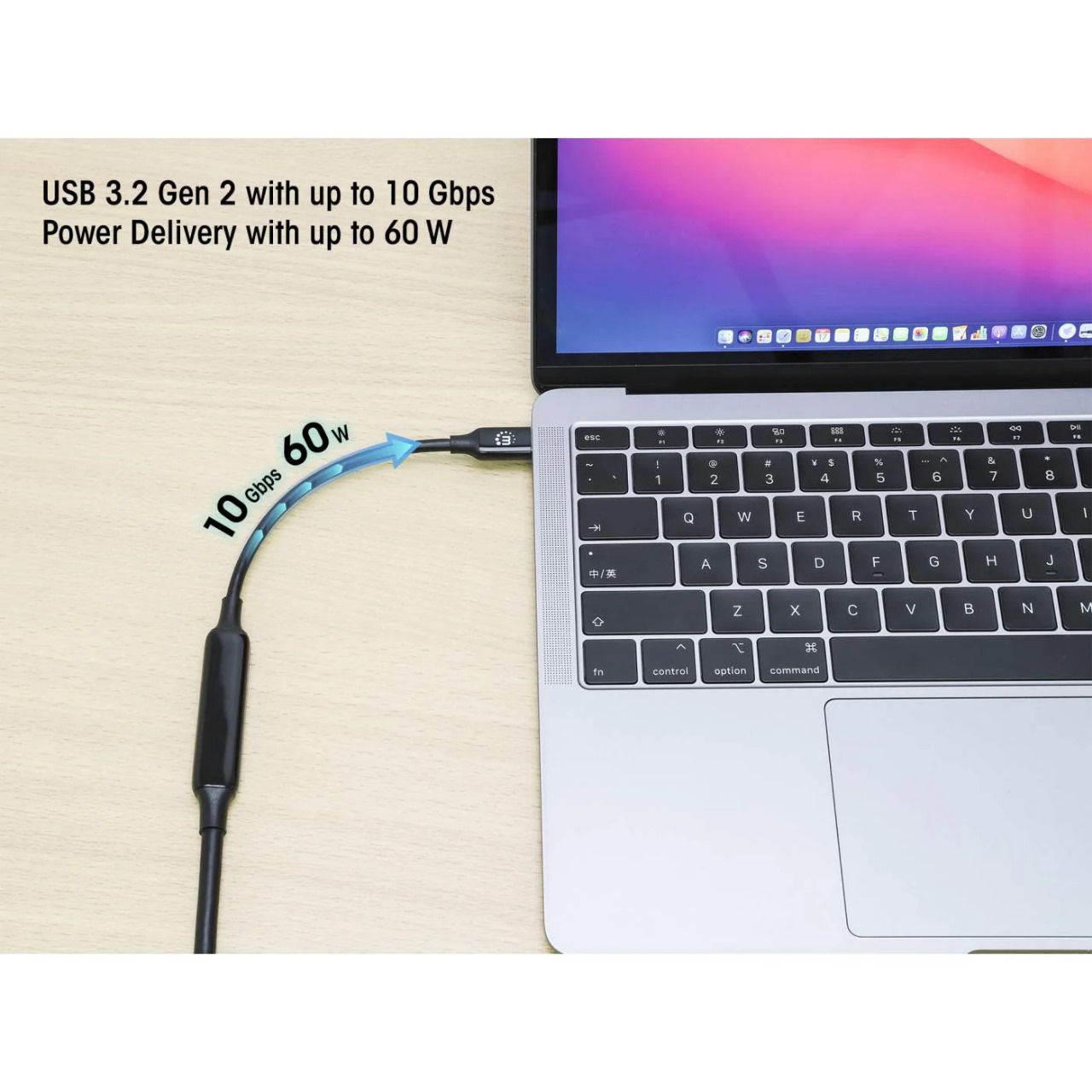

  • Supports USB Power Delivery (PD) and Quick Charge™ (QC) up to 60 W
  • Charges a USB-C powered device such as a notebook, MacBook Pro®, or tablet from a USB-C PD wall charger or power bank
  • Double-shielded to reduce EMI and other interference sources
  • Gold-plated contacts for corrosion-free connections
  • USB-C compliance with DisplayPort 1.4 Alternate Mode (DP Alt Mode) for resolutions up to 8K@60Hz on supported devices and displays
  • Supports current up to 3 A
  • Bidirectional design; can be plugged in both directions
Download Product catalog
USB 3.2 Gen 2
CE
RoHS
FCC
General

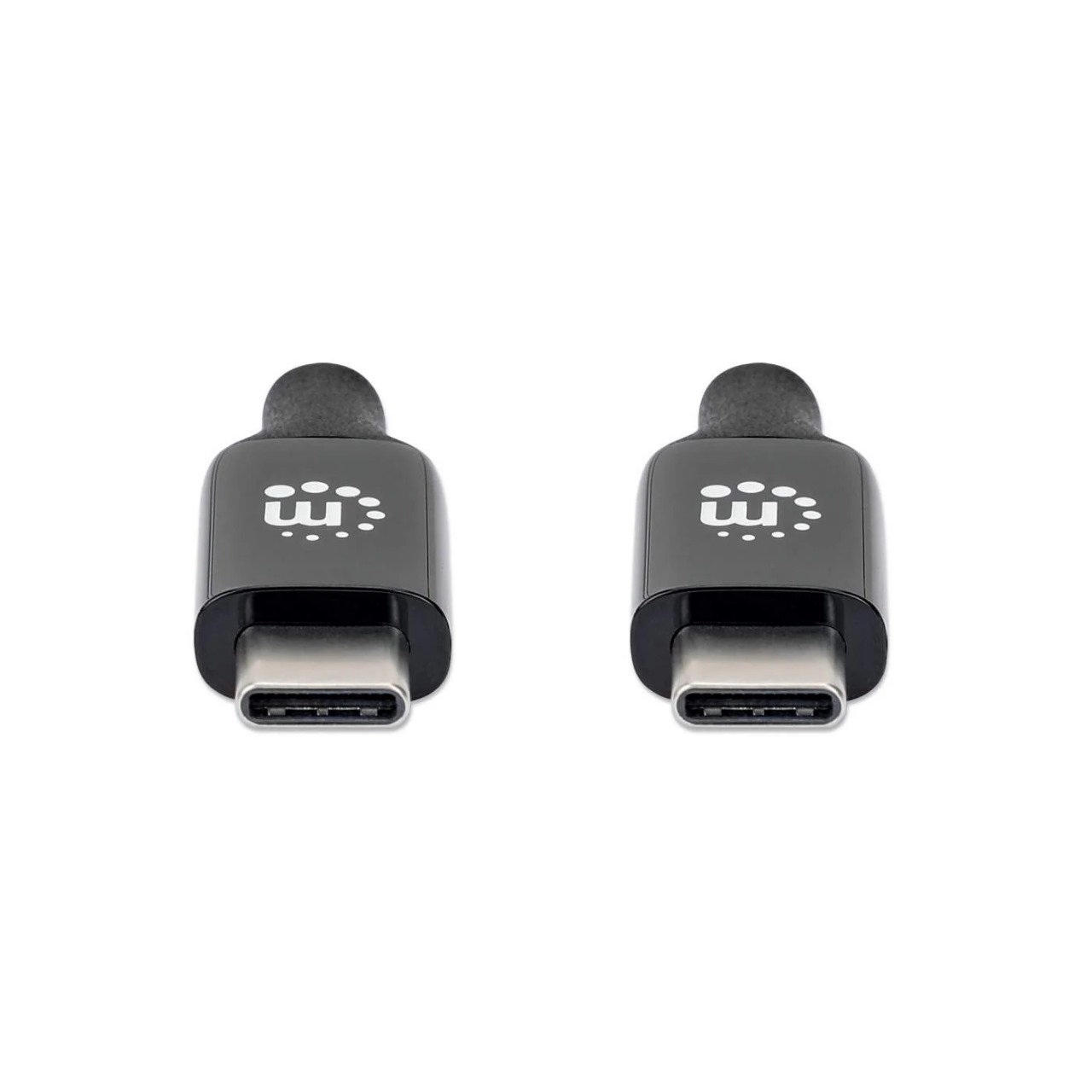

Two USB-C 24-pin males
Double shielding: aluminum foil and braid
Gold-plated contacts
Wire: Pure bare copper
Molded PVC boot with strain relief
Thermal plastic casing
30/22 AWG
Length: 5 m (16 ft.)
Outer diameter (OD): 6.2 mm (0.24 in.)
