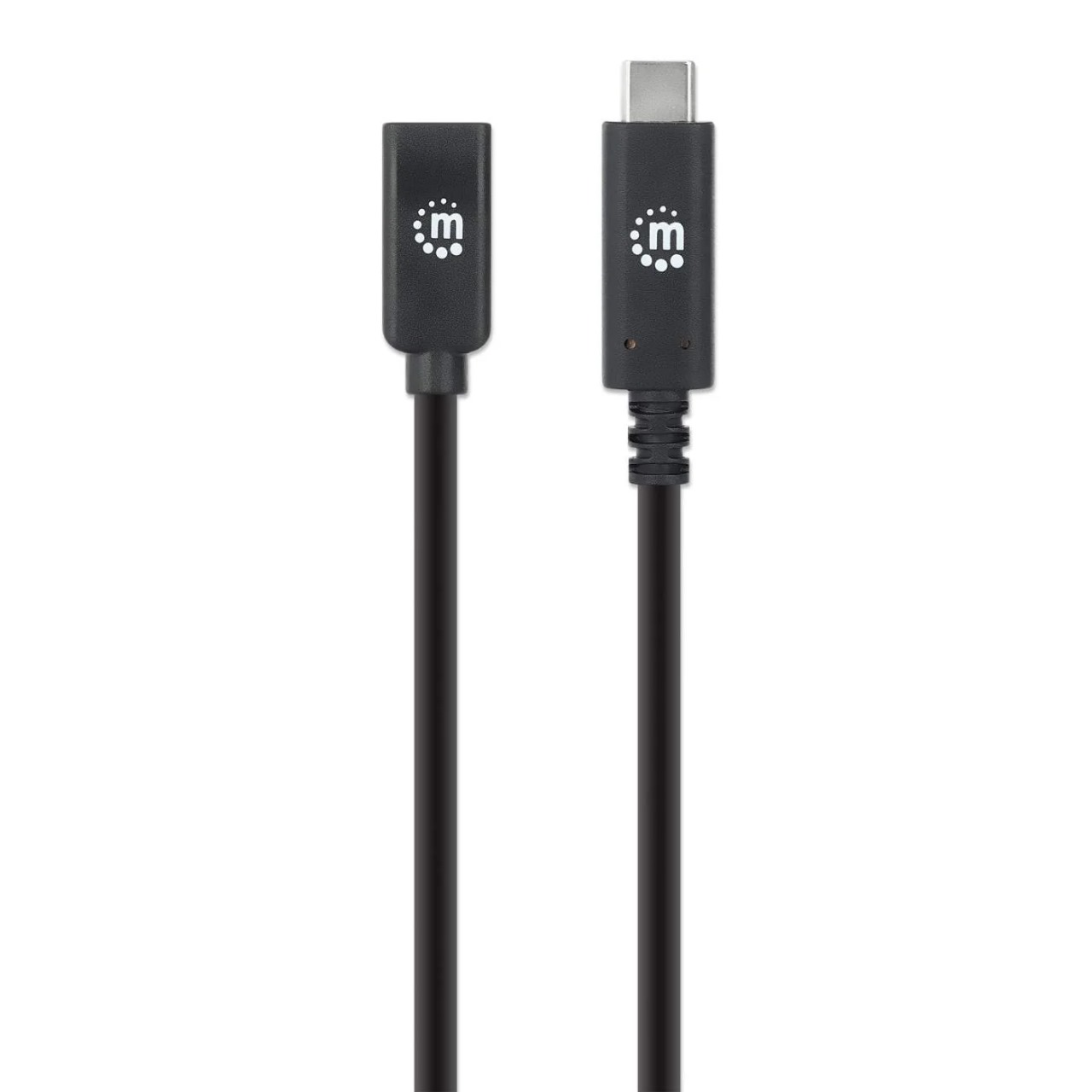

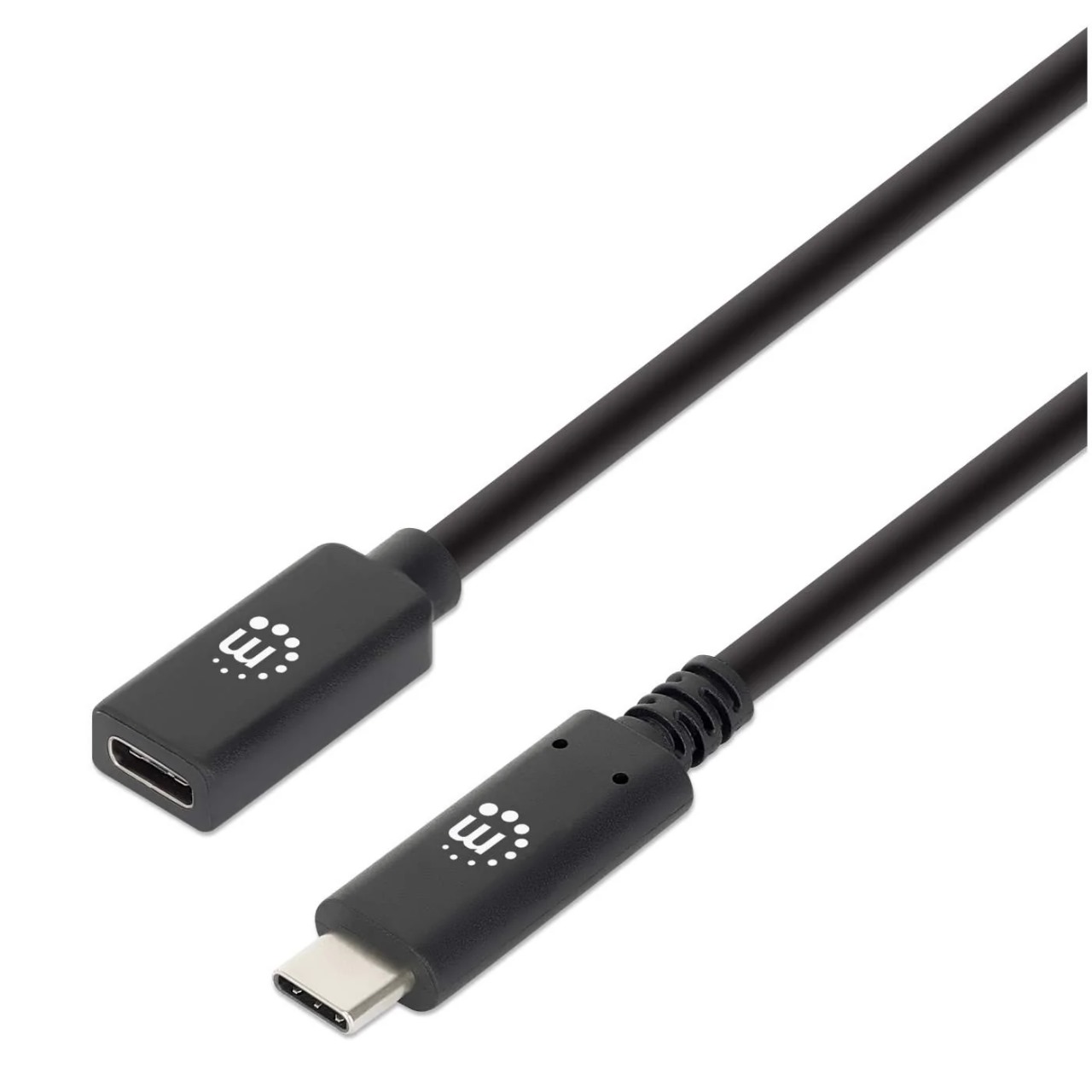

USB 3.2 Gen 2 Type-C Extension Cable (355230)

The Manhattan SuperSpeed+ USB-C Extension Cable provides better access to a Type-C port or connection. This extension cable can be used to extend the distance of a Type-C cable, create easier access to a Type-C port, or prevent port wear and tear. Ideal for use with any USB Type-C plug-and-play device, the Manhattan SuperSpeed+ USB-C Extension Cable supports fast, reliable data transfer rates up to 10 Gbps on Windows and Mac systems and current up to 5 amps (100 W). Nickel-plated contacts, shielding, and fully molded boots with strain relief provide dependable connections, maximum conductivity, and minimal data loss with reduced EMI interference.

Contact to Seller
  • Extends port access for easier device management or adds length to a shorter cable
  • USB-C male to USB-C female
  • Connects and extends a USB 3.2 Gen 2 Type-C device cable to a Gen 2 Type-C port
  • Supports speeds of up to 10 Gbps
  • Supports current of up to 5 A (100 W)
  • USB-C compliance with DisplayPort 1.2 Alternate Mode (DP Alt Mode) for resolutions up to 4K@60Hz on supported devices and displays
  • SuperSpeed+ USB for ultra-fast data transfer rates with zero data degradation

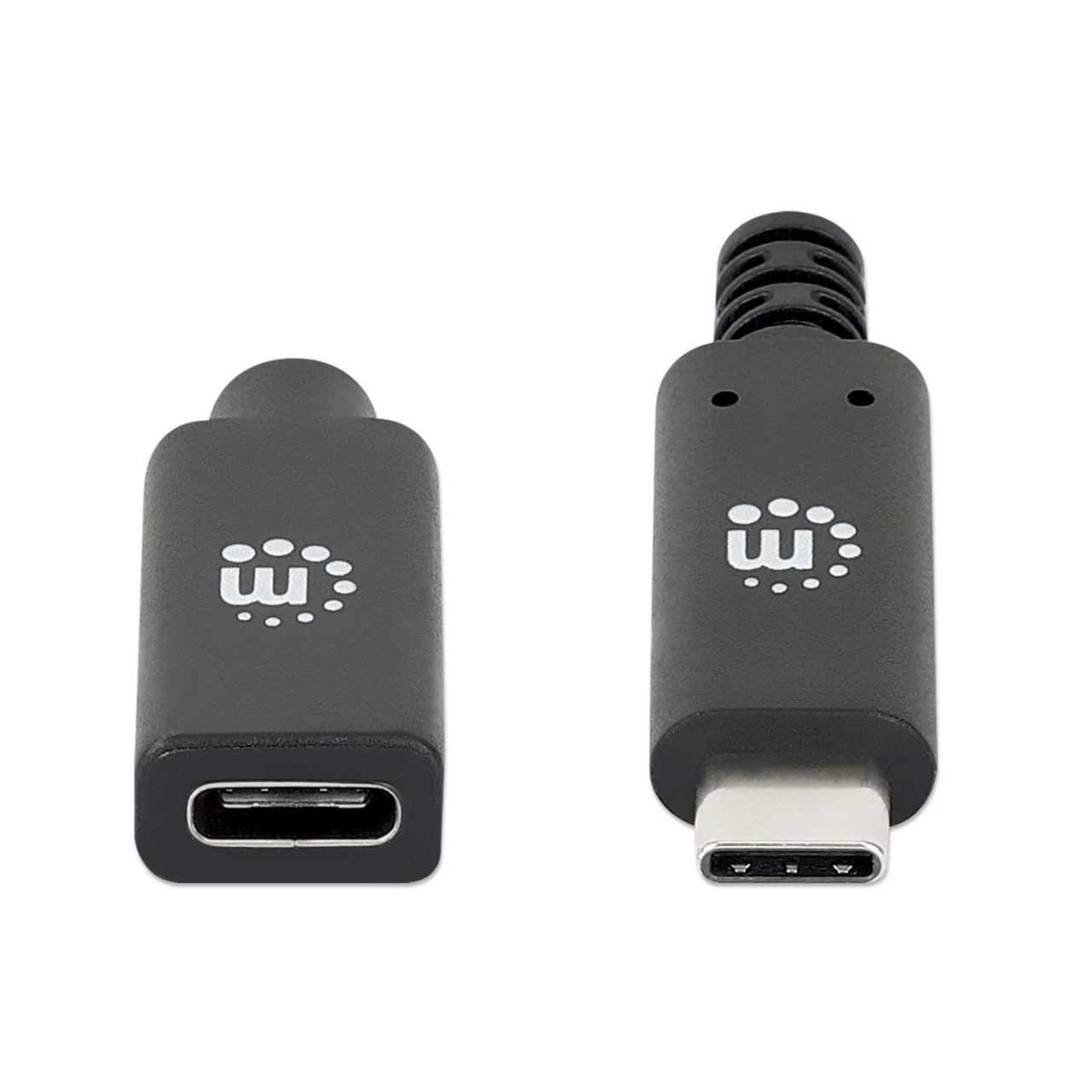

USB-C male
USB-C female
Nickel plated
Molded PVC boot

Cable

Shielded
Withstanding voltage: 300 VDC, 10 ms
Insulation resistance: 10 MOhm min.
Contact resistance: 2 Ohm max
Thermal plastic casing
