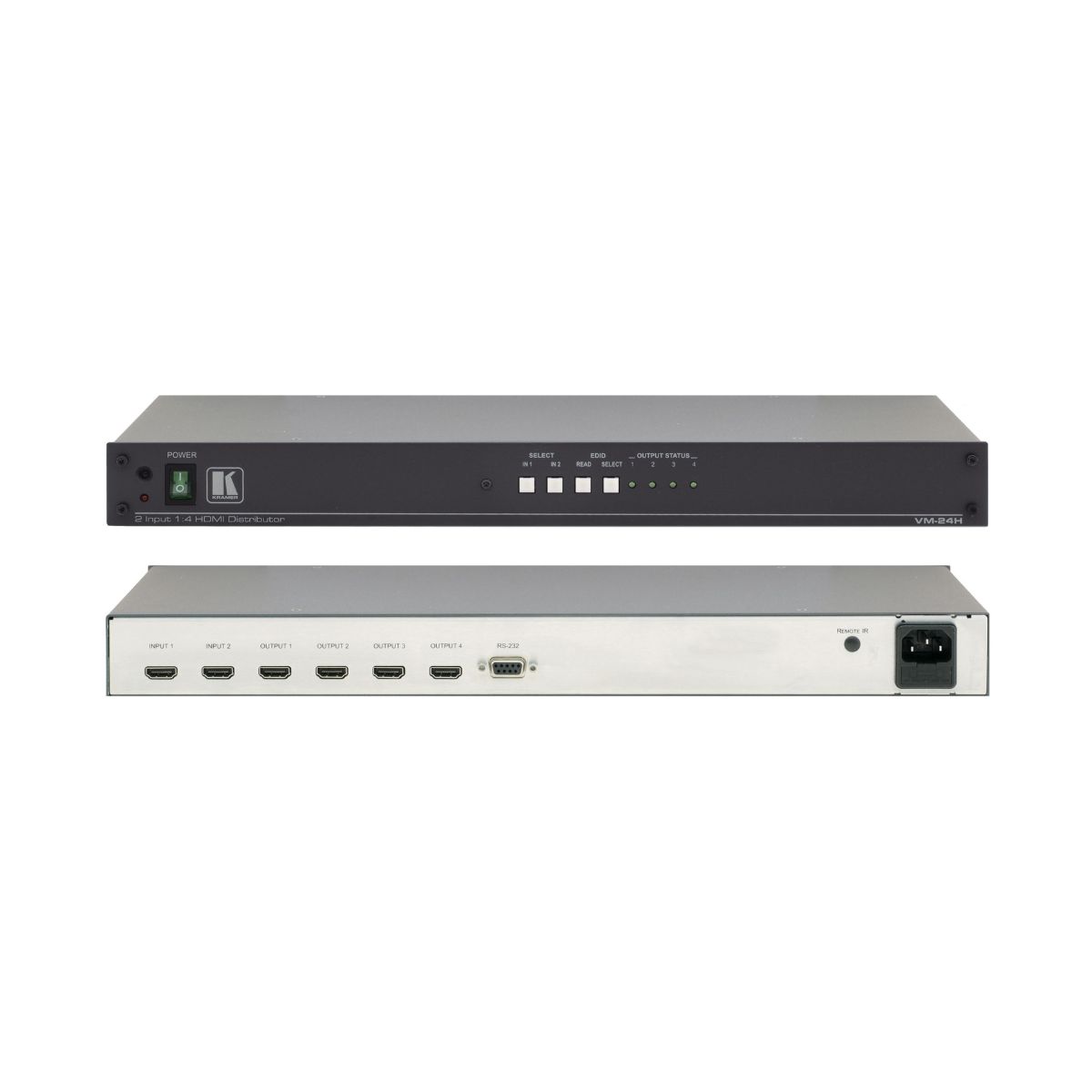

VM-24H

The VM−24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs.

Contact to Seller
  • Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
  •  3D Pass–Through.
  •  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  •  Active Output LED Indicators.
  •  Control — Front panel, RS–232, IR switching.
Download Product catalog

INPUTS
  • 2 HDMI connectors

OUTPUTS
  • 4 HDMI connectors

BANDWIDTH
  • 6.75Gbps (2.25Gbps per graphic channel)

COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP

CONTROLS
  • EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS–232, IR

INDICATOR LEDs
  • Output status LEDs

POWER CONSUMPTION
  • 100–240V AC, 50/60Hz, 16VA
