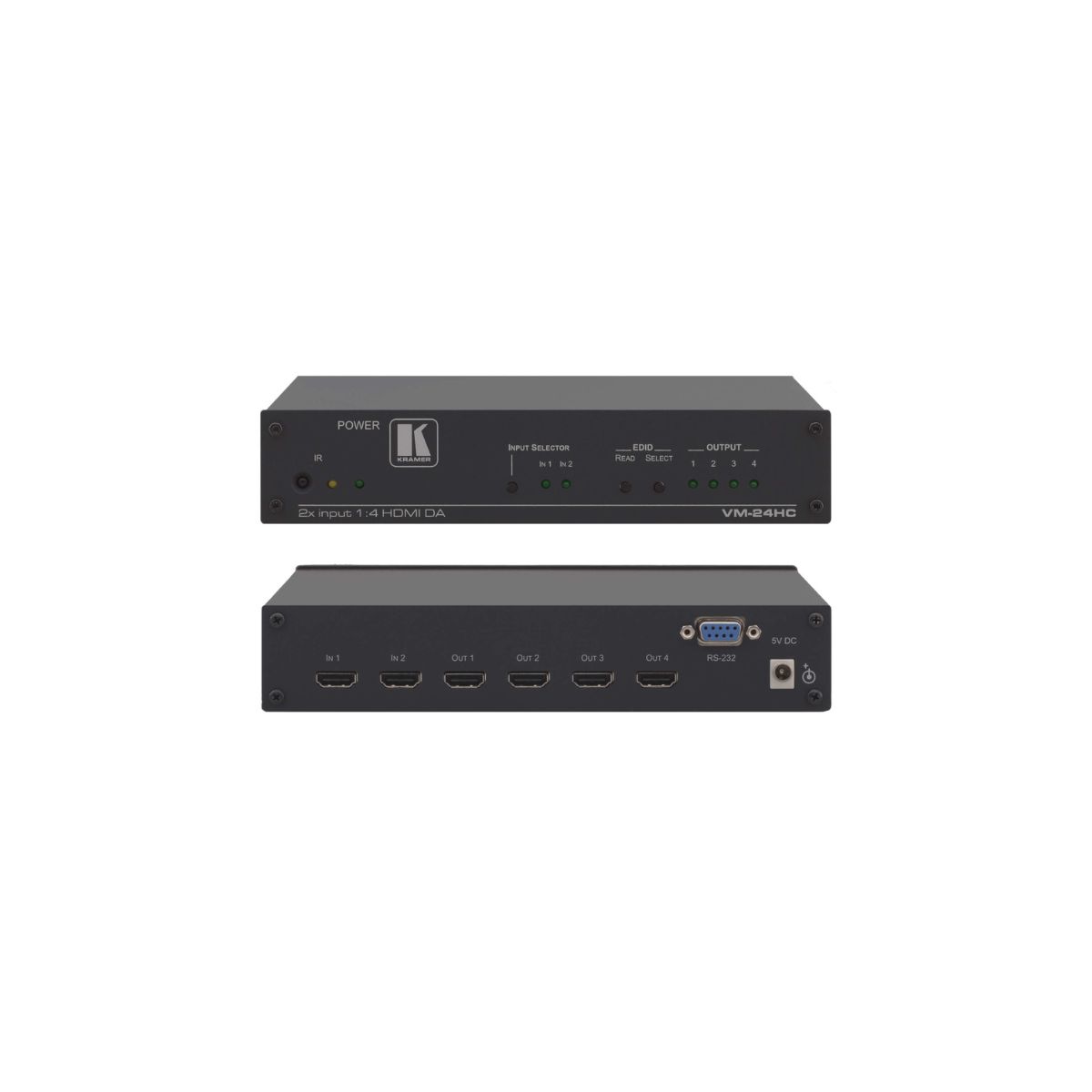

VM-24HC

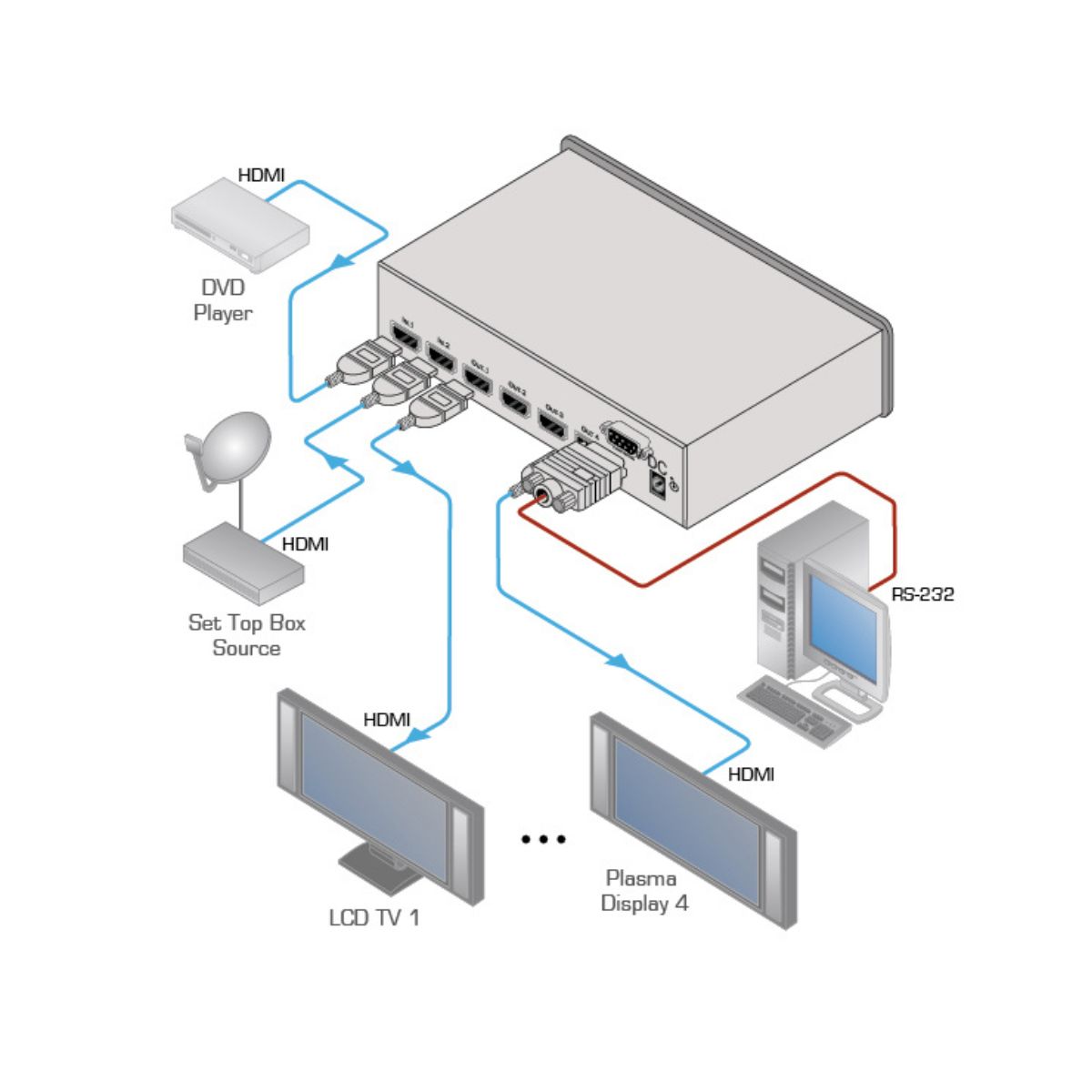

The VM−24HC is a high−performance switcher and distribution amplifier for HDMI signals. The unit accepts one of two HDMI inputs and distributes the selected signal to four HDMI outputs.

Contact to Seller
  • Max. Data Rate — 6.75Gbps (2.25Gbps per graphics channel).
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  •  EDID Handling — Acquires the EDID from one output, from all connected outputs (auto–mix) or uses a default EDID.
  •  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  •  HDMI Support — With Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
  •  3D Pass–Through.
Download Product catalog

INPUTS
  • 2 HDMI connectors

OUTPUTS
  • 4 HDMI connectors

MAX. DATA RATE
  • 6.75Gbps (2.25Gbps per graphic channel)

COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP

CONTROLS
  • EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS–232, IR

INDICATORS
  • POWER, IR, OUTPUT LEDs

POWER CONSUMPTION
  • 5V DC, 1.1A

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE
  • –40° to +70°C (–40° to 158°F)

HUMIDITY
  • 10% to 90%, RHL non–condensing

Accessories
  • Included: Power supply, IR remote control transmitter (upon request)

Product Dimensions
  • 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
