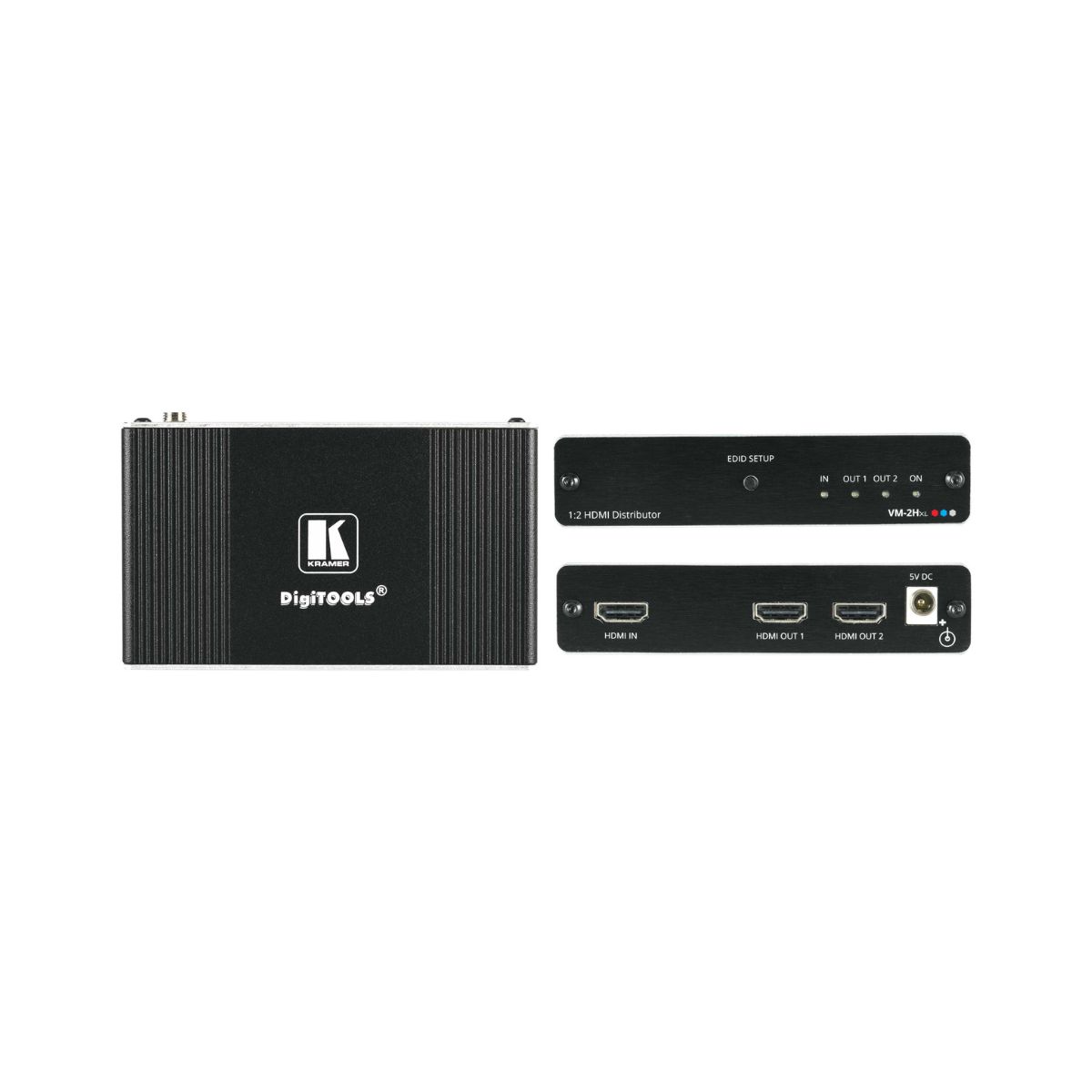

VM-2Hxl

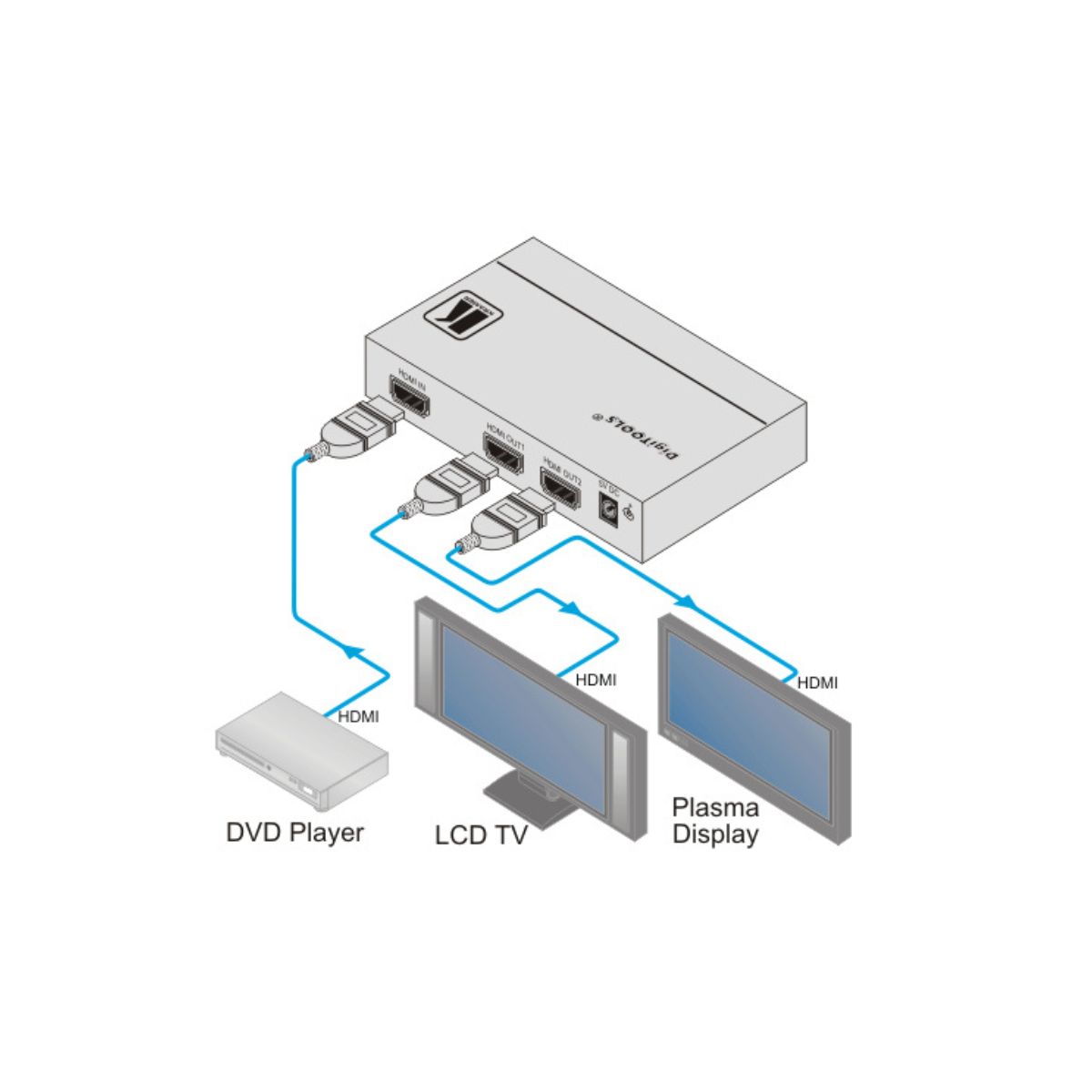

The VM−2Hxl is a distribution amplifier for HDMI signals. The unit reclocks and equalizes the signal and distributes it to two identical outputs.

Contact to Seller
  •  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
  •  3D Pass–Through.
  •  EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  •  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
Download Product catalog

INPUT
  • 1 HDMI connector

OUTPUTS
  • 2 HDMI connectors

MAX. DATA RATE
  • 6.75Gbps (2.25Gbps per graphic channel)

COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP

CONTROLS
  • EDID SETUP button, input select button

INDICATOR LEDs
  • IN 1, IN 2, OUT 1, OUT 2, and ON LEDs

POWER CONSUMPTION
  • 5V DC, 910mA

INCLUDED ACCESSORIES
  • Power supply, bracket installation kit

Product Dimensions
  • 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
