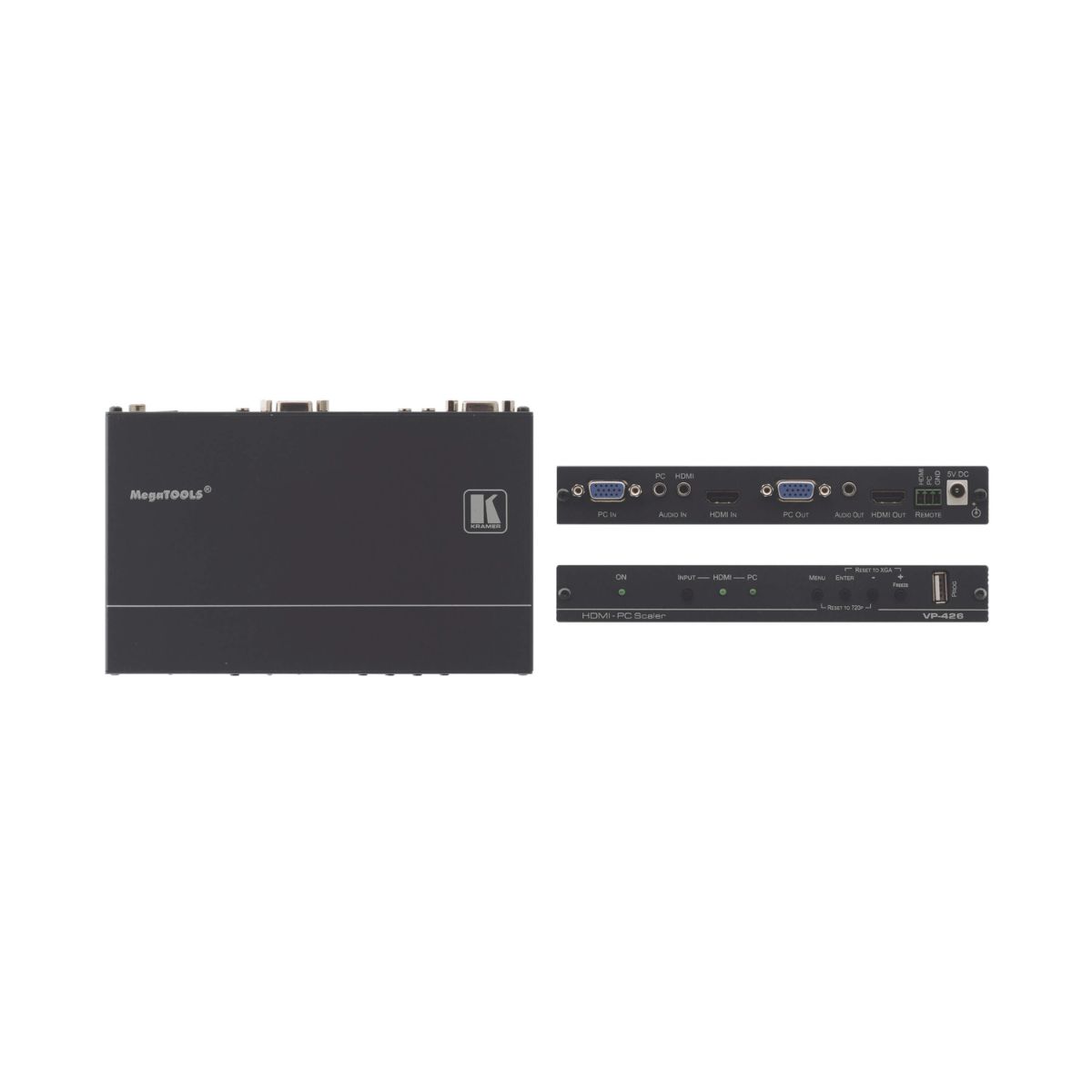

VP-426

The VP−426 is a high−performance digital scaler for computer graphics/HDTV and HDMI signals. The unit up− or down−scales computer graphics and HDTV signals to resolutions of up to WUXGA and 1080p.

Contact to Seller
  •  Inputs — RGBHV, YPbPr, or HDMI.
  •  Outputs — RGBHV and HDMI simultaneously.
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  Input Auto–Scanning.
  •  EDID Capture — Copies and stores the EDID from a display device.
  •  Analog/Embedded Audio Support.
Download Product catalog

INPUTS

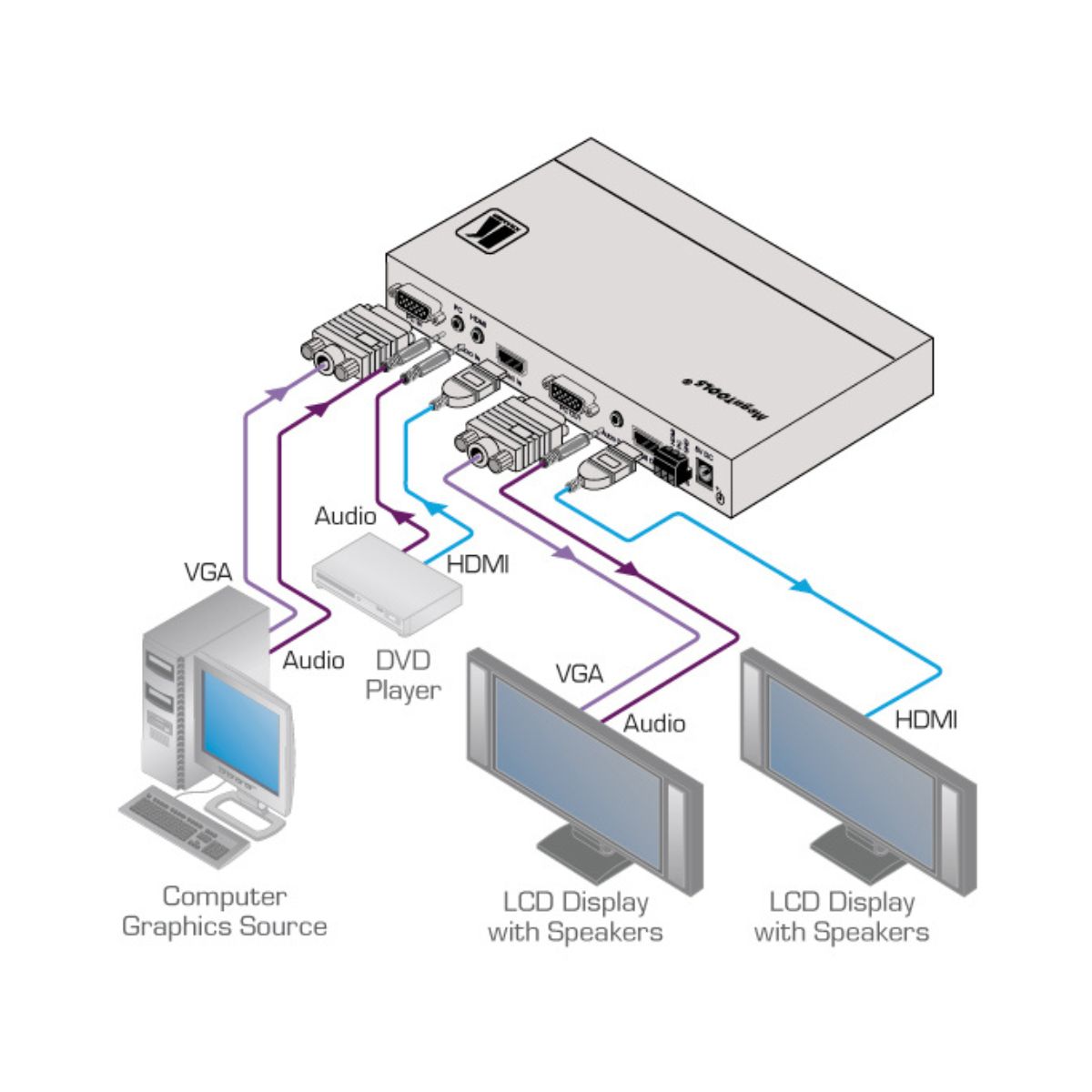

  • 1 PC/HD (RGBHV/YPbPr) on a 15–pin HD connector, 1 HDMI connector, 2 unbalanced stereo audio connectors on 3.5mm mini jacks

OUTPUTS
  • 1 PC (RGBHV) on a 15–pin HD connector, 1 HDMI connector, 1 unbalanced stereo audio connector on a 3.5mm mini jack

INPUT RESOLUTIONS
  • Component: 480i, 576i, 480p, 576p, 720p@60Hz, 720p@50Hz, 1080i@60Hz, 1080i@50Hz, 1080p@60Hz, 1080p 50Hz, 1080p@24Hz, 1080p@25Hz, 1080p@30Hz

OUTPUT RESOLUTIONS
  • NATIVE, 480i, 480p, 720p@60Hz, 1080i@60Hz, 1080p@60Hz, 576i, 576p, 720p@50Hz, 1080i@50Hz, 1080p@50Hz, 640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1366x768, 1680x1050, 1920x1200, 1280x800, 1440x900, 1400x1050, 1600x900

OUTPUT REFRESH RATE
  • 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions

VIDEO LATENCY
  • Progressive input: 30ms (approx.)
  • interlaced input: 50ms (approx.)
