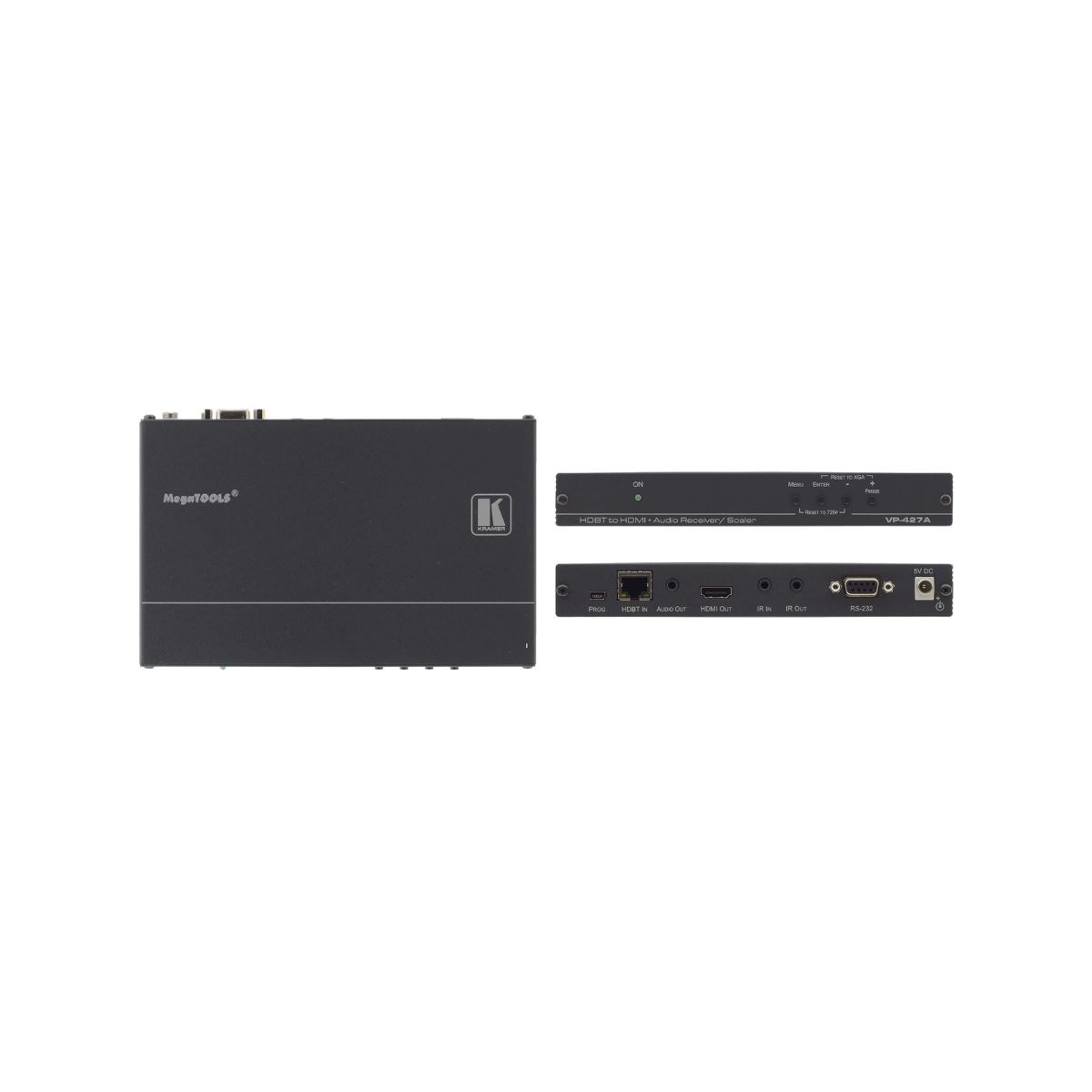

VP-427A

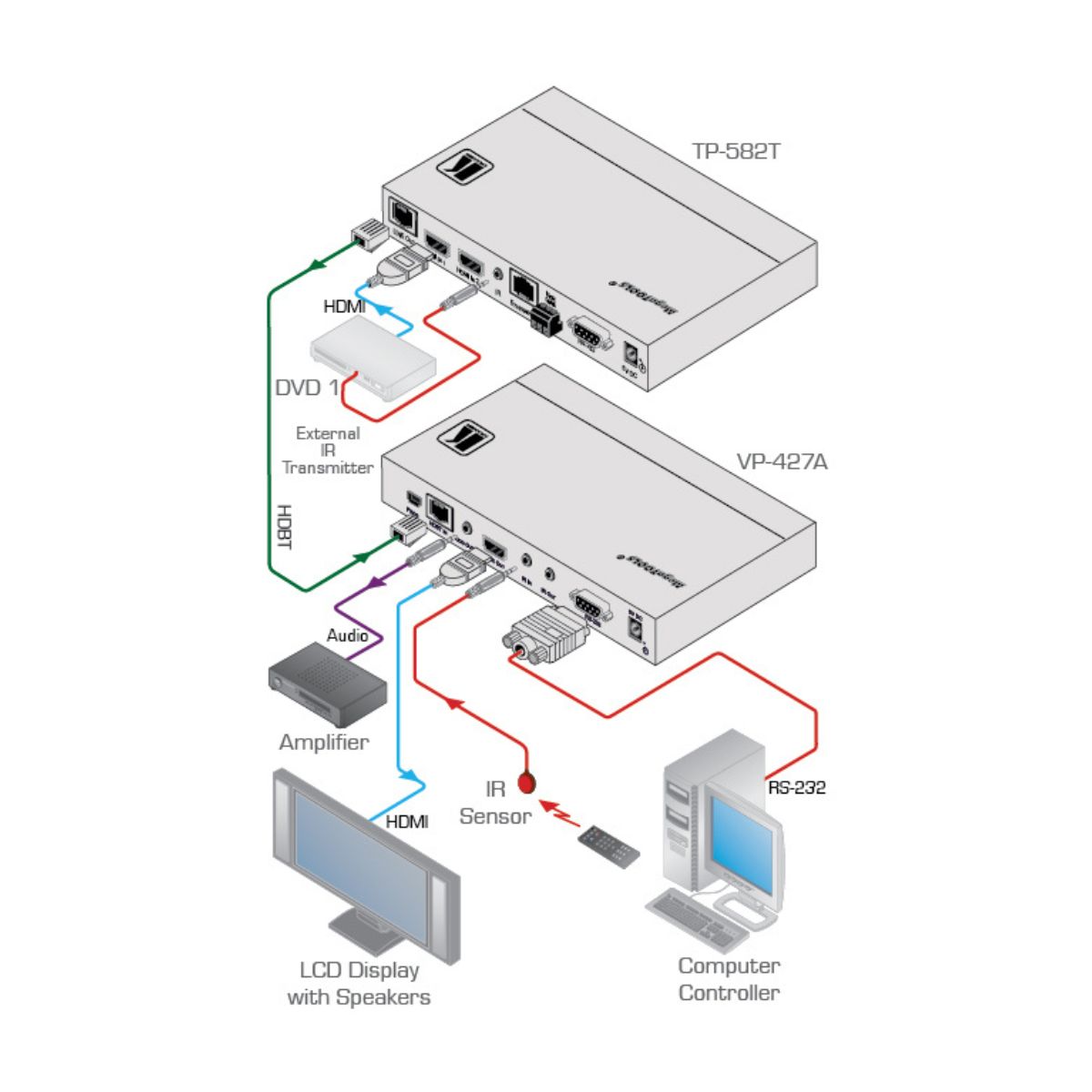

The Kramer VP−427A is a receiver/scaler for HDBaseT twisted pair, HDMI, bidirectional RS−232, and IR signals. The unit receives an HDBaseT signal that it converts to HDMI, IR, and RS−232 signals. It up− or down−scales the picture to match the resolution of the HDMI monitor. It includes a simultaneous analog audio output of the embedded HDMI audio.

Contact to Seller
  •  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
  •  Bidirectional RS–232 Port — For embedding/de–embedding control commands in the HDBaseT data stream.
  •  Infrared Input and Output Ports — For controlling devices over the HDBaseT data stream.
  •  System Range — Up to 70m (230ft).
  •  Embedded Audio — Support for LPCM 2CH.

INPUTS
  • 1 HDBaseT twisted pair on an RJ–45 connector, 1 IR on a 3.5mm mini jack

OUTPUTS
  • 1 HDMI connector, 1 IR on a 3.5mm mini jack, 1 unbalanced stereo audio on a 3.5mm mini jack

PORTS
  • 1 bidirectional RS–232 port on a 9–pin D–sub connector

OUTPUT RESOLUTIONS
  • Native, 480p, 570p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, 1280x800, 1280x1084, 1360x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200

OUTPUT REFRESH RATE
  • 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions

LATENCY
  • 30ms approx
