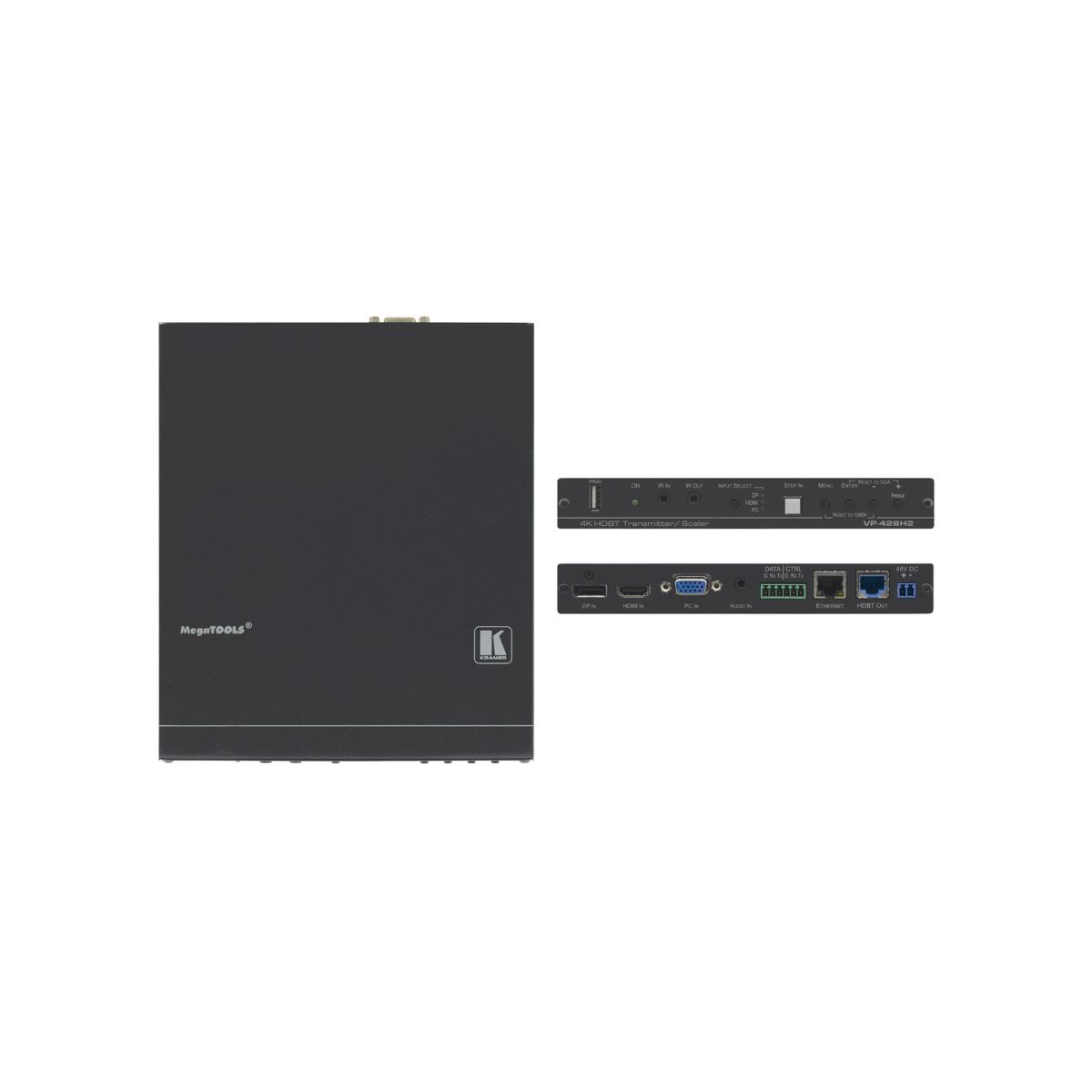

VP-428H2

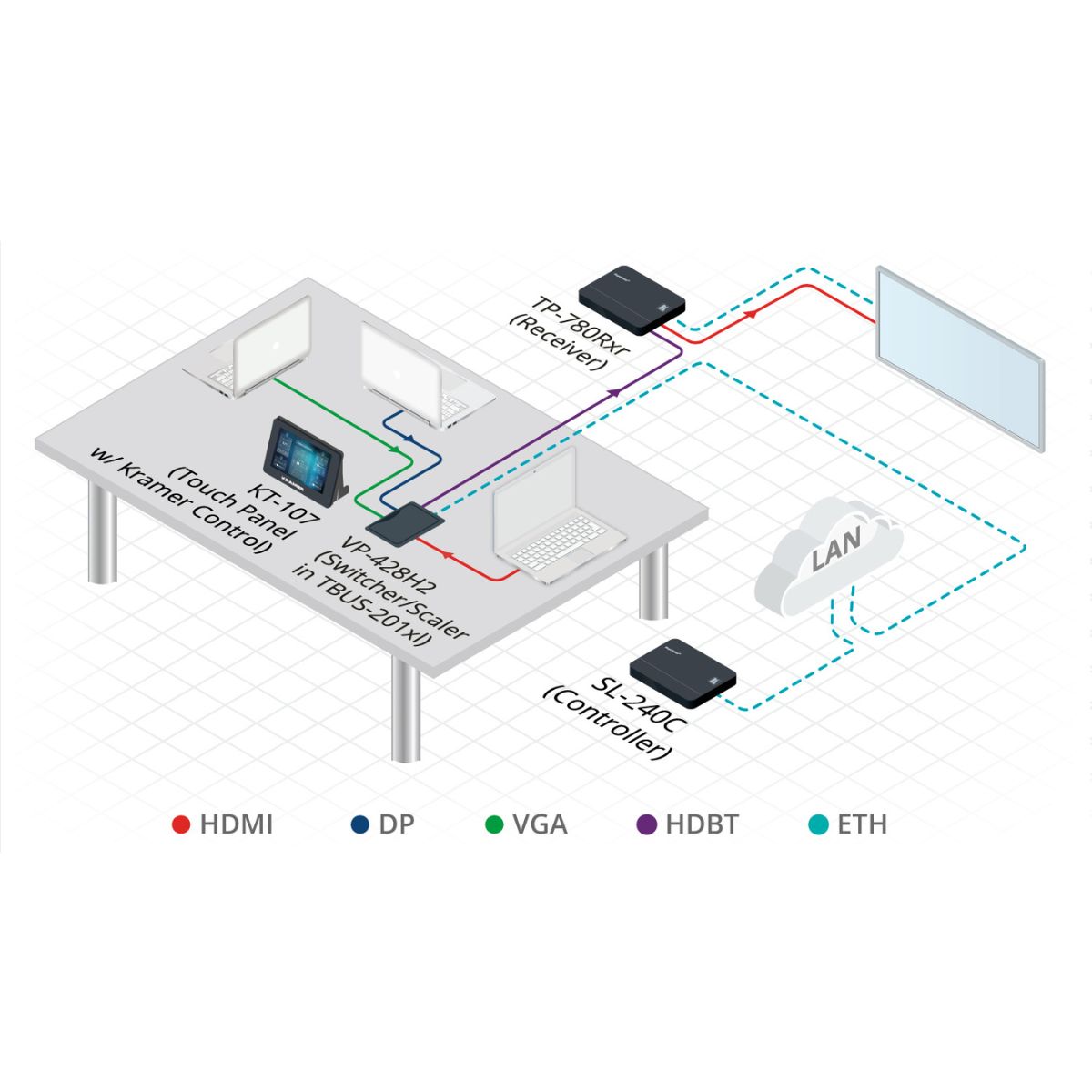

VP−428H2 is an HDBaseT 4K transmitter/scaler with HDMI, DP and VGA inputs. VP−428H2 supports HDBaseT tunneling of Ethernet, bidirectional RS−232 and IR signals, as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal, up−scales, down-scales, or bypasses the video, according to the settings selected by the user, and converts it for sending via HDBaseT, together with the tunneled data and PoE.

Contact to Seller
  • HDMI, DP, VGA Inputs
  • HDBaseT Tunneling of Ethernet, RS–232 and IR signals, and PoE
  • Supports up to 4K@60 4:4:4 on the HDMI and DP inputs
  • Supports up to 4K@60 4:2:0 on the HDBaseT output
  • Upscales and downscales to/from all resolutions
Download Product catalog

Inputs
  • 1 DP: On a DisplayPort connector
  • 1 HDMI: On a female HDMI connector
  • 1 PC: On a 15–pin HD connector
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack
  • 1 IR: On a 3.5mm mini jack

Outputs
  • HDBaseT: On an RJ–45 port
  • 1 IR: On a 3.5mm mini jack

Ports
  • 1 Ethernet: On an RJ–45 female connector for port tunneling
  • 1 USB: On a female USB–A connector
  • 1 DATA RS-232: On a 3–pin terminal block for serial link extension
  • 1 CTRL RS-232: On a 3–pin terminal block for device control

Video
  • Max Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Input Resolution: 4K@60Hz (4:4:4)
  • Max. Output Resolution: 4K@60Hz (4:2:0)
  • Standards Compliance Support: HDCP 2.2 and DP 1.2A. Supports 4K60, CEC, xvYCC color (on input), Dolby TrueHD/DTS–HD Master Audio as specified in HDMI 2.0
  • Switching Time Between Inputs: 2 to 3 seconds

Power
  • Source: 48V DC, 1.36A
  • Consumption: 48V DC, 410mA

Enclosure
  • Cooling: Convection ventilation
  • Type: Aluminum
