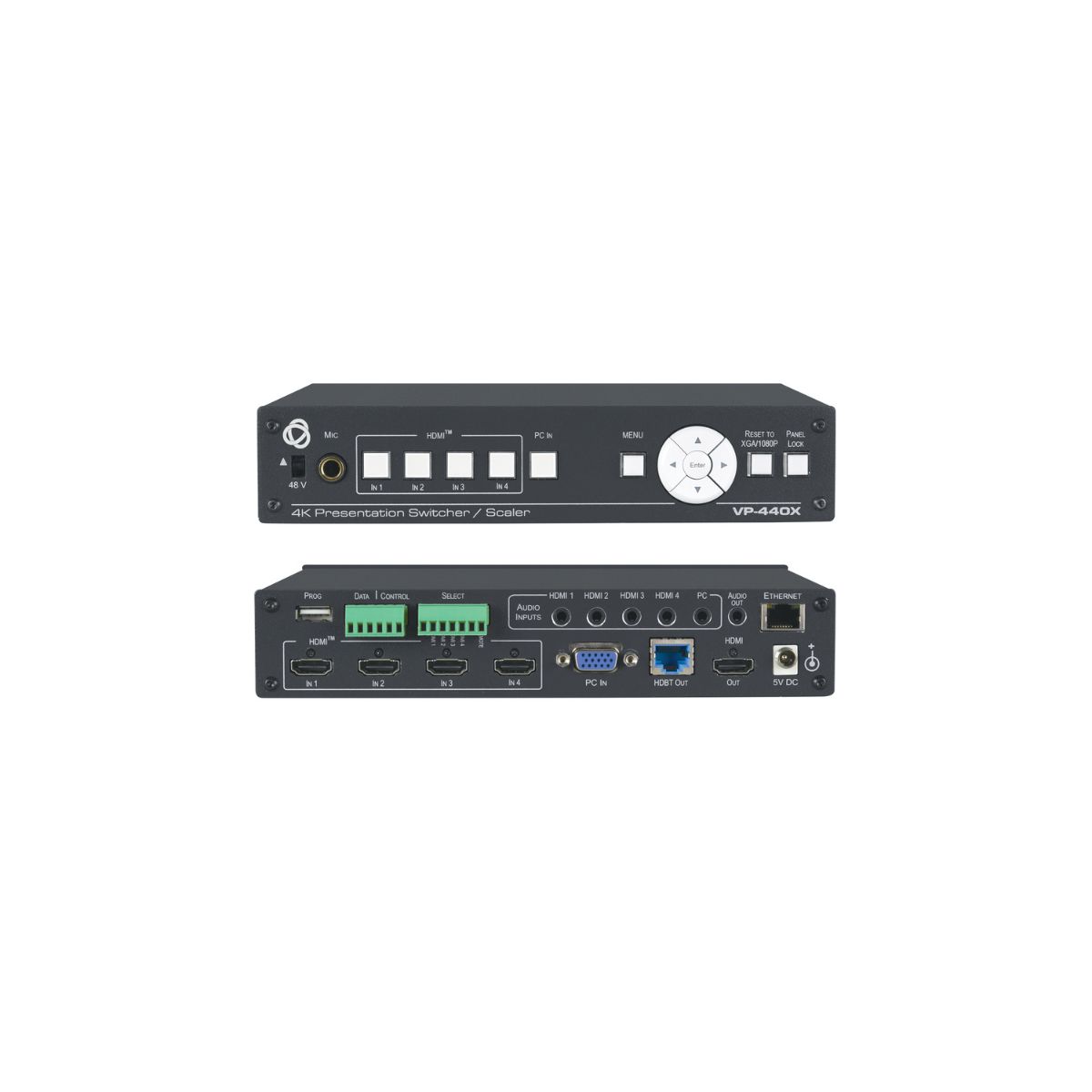

VP-440X

VP−440X is a high−performance 18G 4K HDR presentation switcher/scaler with four HDMI inputs and one computer graphics (VGA) input. It scales the video, embeds the audio, and outputs the signal to two identical outputs – one HDMI and one HDBaseT – together with an analog stereo audio output. Via HDBaseT, it extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Contact to Seller
  • 4 HDMI inputs
  • Supports up to 4K@60 4:4:4 on the HDMI output
  • Supports up to 4K@60 4:2:0 on the HDBaseT output
  • HDBaseT Max. Range: 70m (230ft) at 1080p, 40m (130ft) at 4K@60Hz (4:2:0)
  • Analog audio and microphone embedding
  • CEC Support for display ON/OFF
  • Upscales and downscales to/from all resolutions
Download Product catalog

Inputs
  • 4 HDMI: On female HDMI connectors
  • 1 VGA: On a 15–pin HD connector
  • 5 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack
  • 1 Microphone: On a 6.3mm jack

Outputs
  • 1 HDMI: On a female HDMI connector
  • 1 HDBaseT: On an RJ–45 connector
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack

Ports
  • 1 Ethernet: 100Mbps, on an RJ–45 female connector
  • 1 DATA RS-232: On a 3–pin terminal block for serial link extension
  • 1 CTRL RS-232: On a 3–pin terminal block for device control
  • 6 Contact Closure Switches: On a 7–pin terminal block connector
  • 1 USB: On a female USB–A connector for firmware upgrade

Extension Line
  • Compliance: HDBaseT 1.0
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p @60Hz 24bpp)
  • Note: When using Kramer HDBaseT cables

Power
  • Source: 5V DC, 4A
  • Consumption: 18–19W

Enclosure
  • Cooling: Convection ventilation
  • Type: Aluminum
  • Size: 1/2 19"
