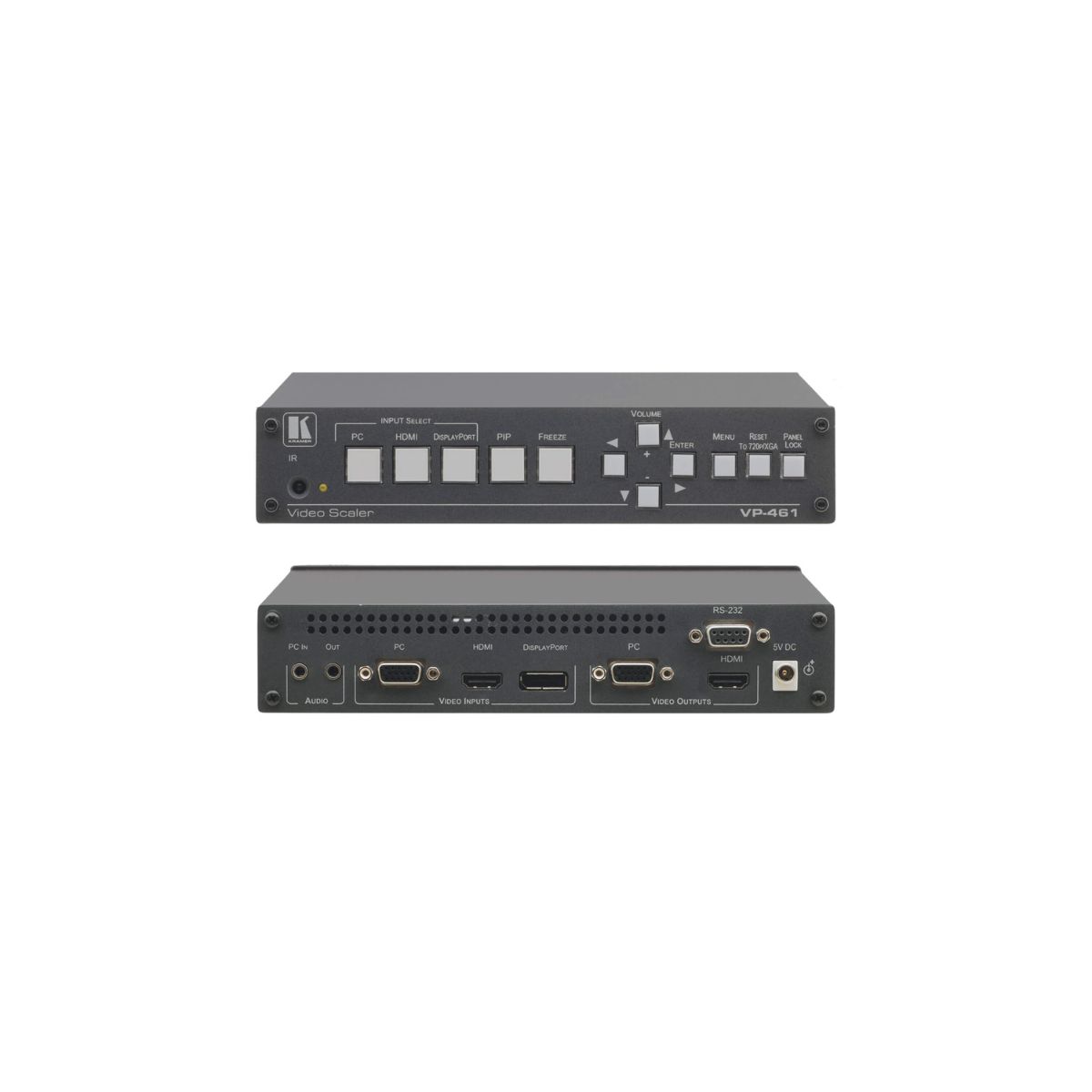

VP-461

The VP−461 is a high−quality presentation switcher and scaler with PIP for computer graphics, HDMI, and DisplayPort signals. It scales the video, embeds the audio, and outputs the signal to the HDMI output, as well as to the computer graphics video output, together with an unbalanced audio output.

Contact to Seller

INPUTS
  • 1 computer graphics on a 15–pin HD connector, 1 HDMI connector, 1 DisplayPort connector, 1 unbalanced stereo audio on a 3.5mm mini jack connector

OUTPUTS
  • 1 computer graphics on a 15–pin HD connector, 1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack connector

COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI Deep Color

POWER CONSUMPTION
  • 5V DC, 2.90A

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE
  • –40° to +70°C (–40° to 158°F)



Download Product catalog
  •  HDTV Compatible.
  •  40 Output Resolutions — Up to WUXGA, 1080p, and 2K.
  •  HDMI Deep Color Support.
  •  Luma Keying — Via PIP window.
  •  Vertical Keystoning.
  •  Built–in ProcAmp — Color, sharpness, contrast, brightness, and gamma are set individually for each input.
  •  Powerful Noise Reduction Filters — Temporal, block, mosquito, and combing.
