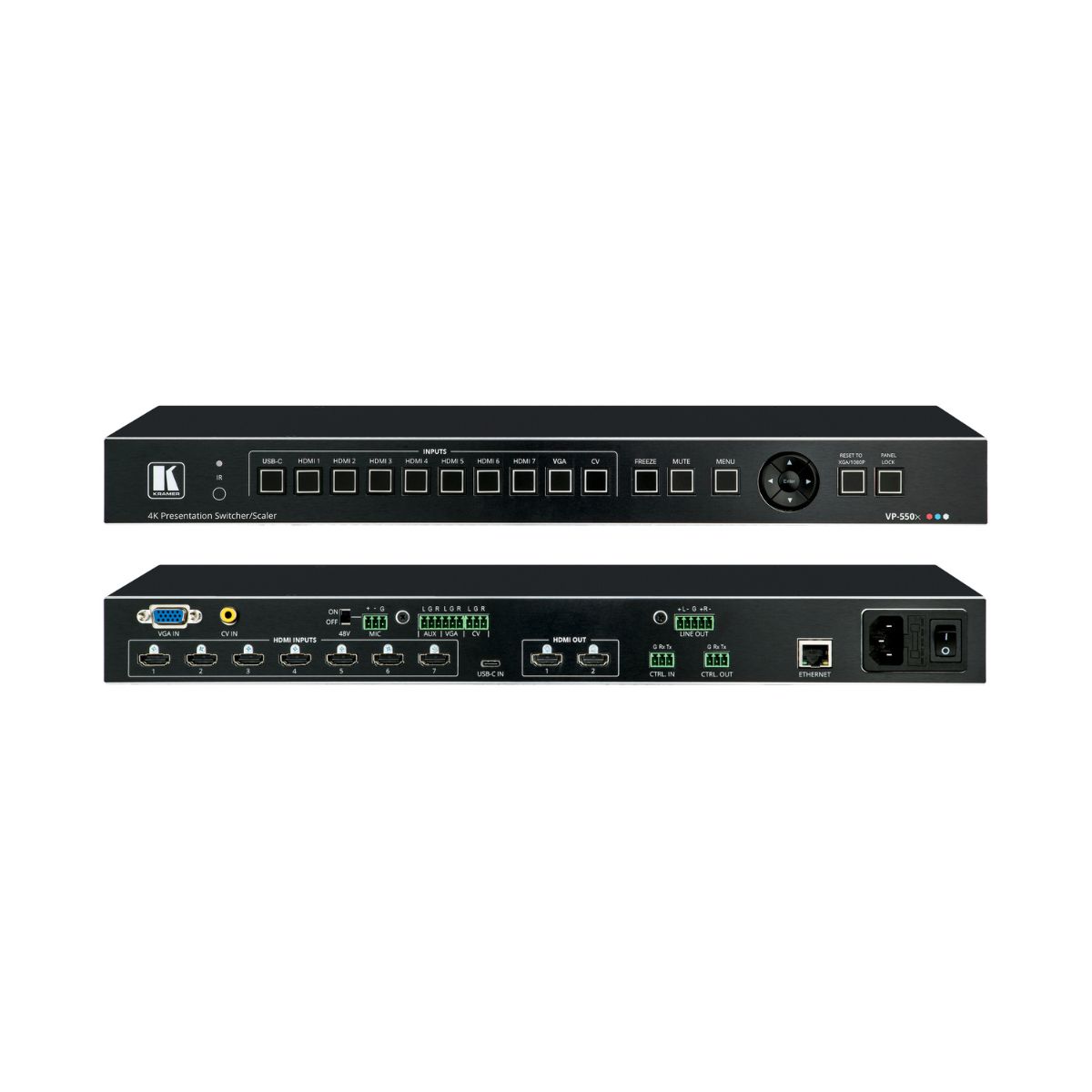

VP-550X

VP−550X is a versatile, professional presentation scaler/switcher for 4K@60 (4:4:4) HDMI, USB−C, VGA, and composite video signals. The unit scales the video and provides options to use the embedded digital audio or to select analog audio input signals. After processing and scaling, the embedded AV signal is sent to the 2 mirrored HDMI outputs simultaneously, and the audio is also sent to a balanced stereo audio output.

Contact to Seller

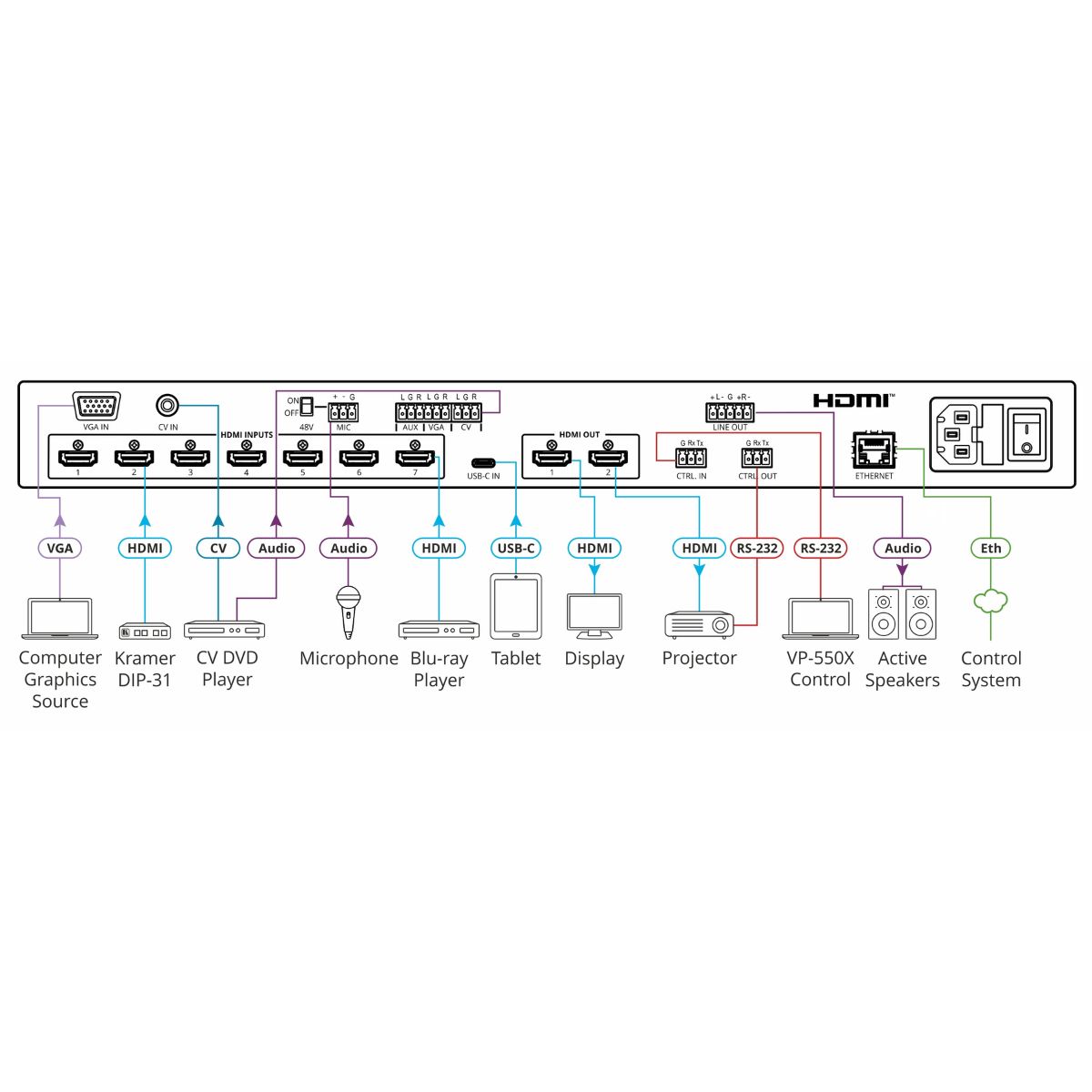

Inputs
  • 7 HDMI: On female HDMI connectors
  • 1 USB (providing power): On a USB Type–C connector
  • 1 Computer Graphics: On a 15–pin HD connector
  • 1 Composite Video: On an RCA connector
  • 3 Unbalanced Stereo Analog Audio (AUX, VGA, and CV): On 3–pin terminal blocks
  • Microphone: On 3–pin terminal block

Outputs
  • 2 HDMI: On female HDMI connectors
  • 1 Balanced Analog Stereo Audio: On a 5–pin terminal block

Ports
  • 1 RS–232 (Data): On a 3–pin terminal block
  • 1 RS–232 (Control): On a 3–pin terminal block
  • 1 Ethernet: 100Mbps, on an RJ–45 connector

User Interface
  • Controls: IR remote, Input selection, freeze, mute, XGA/1080p reset, and panel lock buttons, OSD menu
  • Indicators: IR, selected input LEDs

Power
  • Source: 100–240V AC 50/60Hz
  • Consumption: 1A

Enclosure
  • Size: 19”
  • Type: Aluminum
  • Cooling: Convection ventilation



Download Product catalog
  • Versatile Powering Options — Receives power from a universal power supply (100–240V AC) and provides up to 18W of power to the USB–C input, HDTV Compatible.
  •  4K and Legacy Inputs — 7 HDMI and 1 USB–C 4K@60 (4:4:4) inputs, 1 VGA input, and 1 CV (composite video) input.
  •  Non–Volatile Memory — Saves final settings before shutdown and retains them for the next power up.
  •  Convenient Control Options — Local control via front panel buttons (input selection, audio mute, freeze, and front panel lock), RS–232, IR remote, and OSD. Long–distance control via Ethernet using embedded web pages.
  •  Easy Installation — 19” enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100–240V AC power connection.
