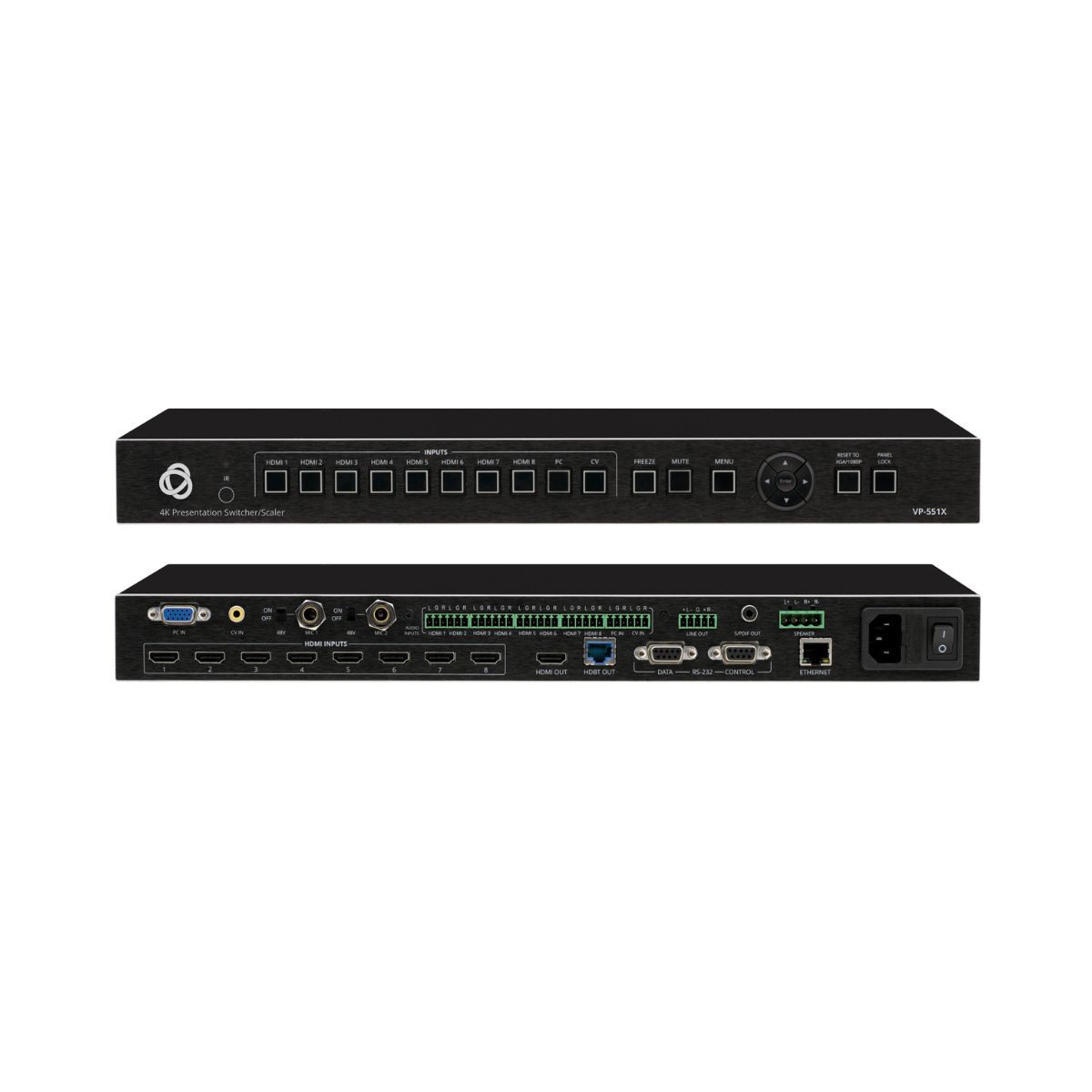

VP-551X

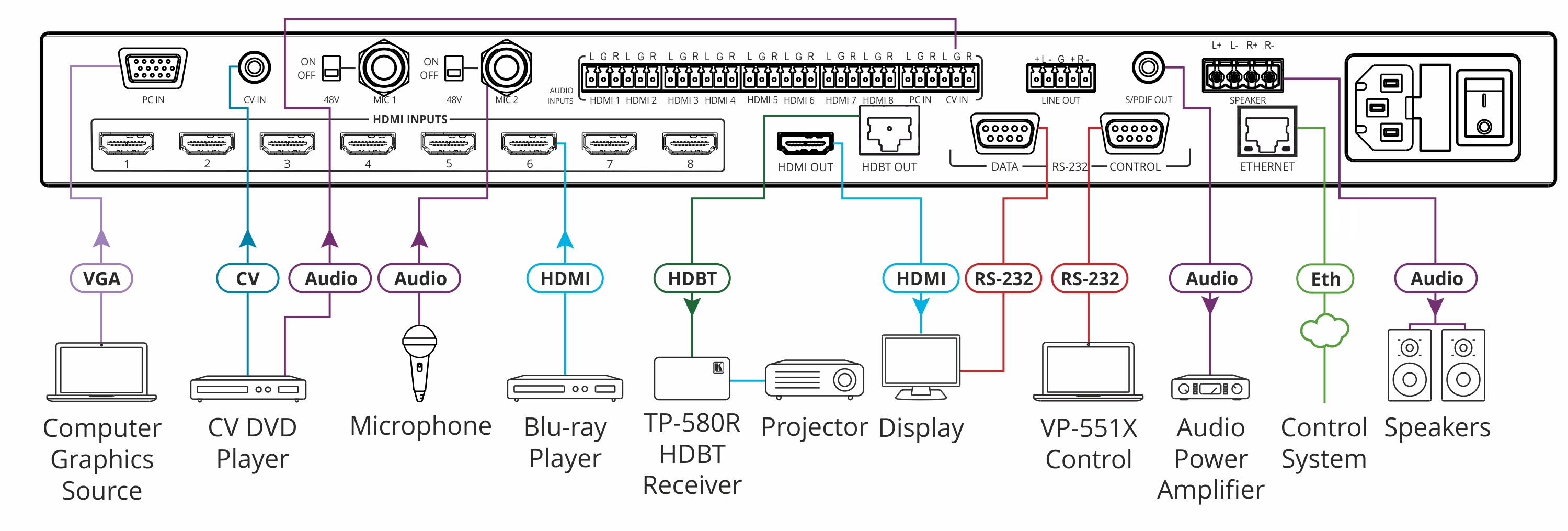

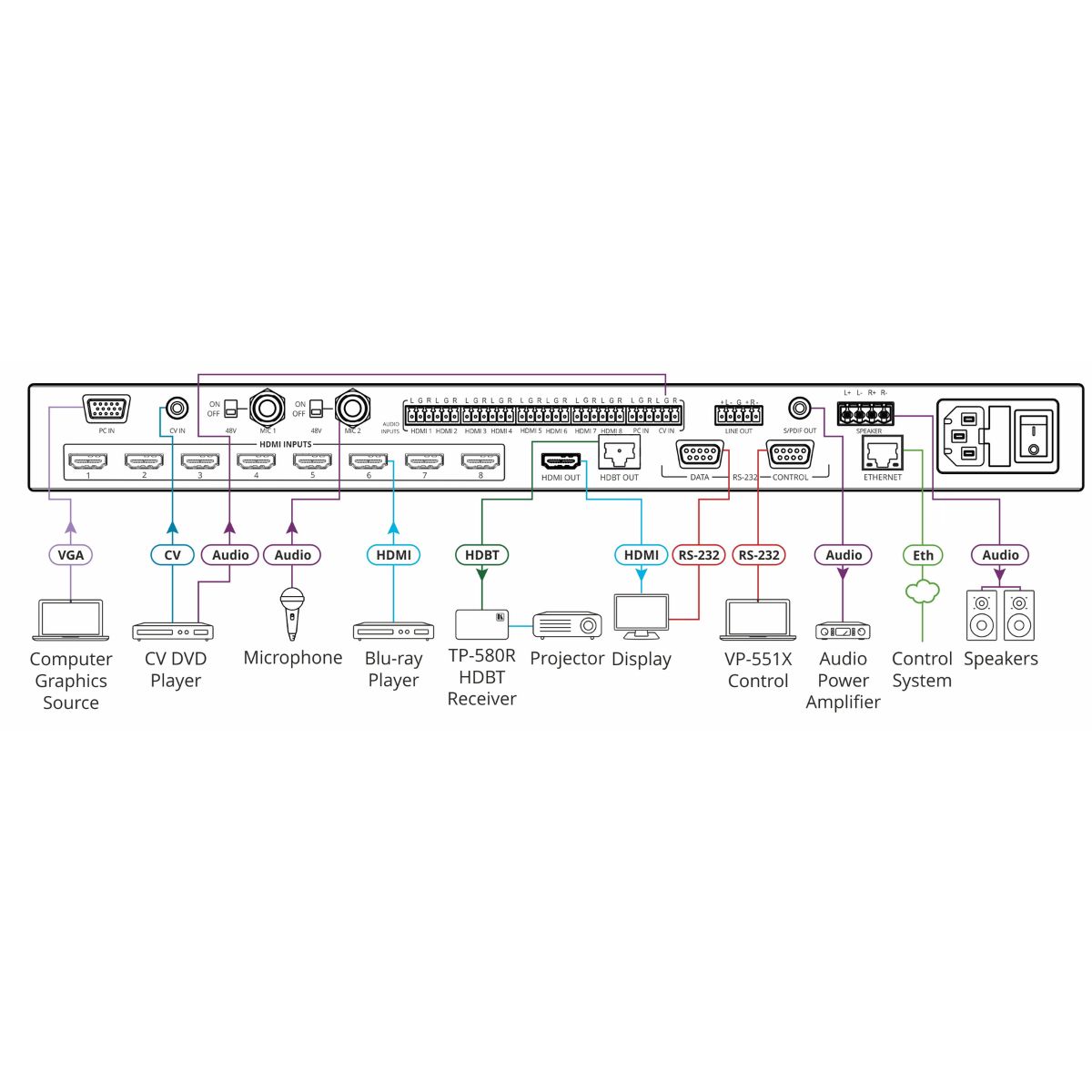

VP−551X is a versatile, professional presentation scaler/switcher for 4K@60 (4:4:4) HDMI, VGA, and composite video signals. The unit scales the video and provides options to use the embedded HDMI audio or to select the companion audio channel from one of ten analog audio input signals. After processing and scaling, the embedded AV signal is sent to the HDMI and the HDBaseT outputs simultaneously, and the audio is also sent to a balanced stereo audio output, S/PDIF digital output, and a pair of loudspeakers.

Contact to Seller

Inputs
  • 8 HDMI: On female HDMI connectors
  • 1 Computer Graphics: On a 15–pin HD connector
  • 1 Composite Video: On an RCA connector
  • 8 Unbalanced Stereo Analog Audio: On 3–pin terminal blocks (1 to accompany each of the HDMI inputs)
  • 1 Unbalanced Stereo Analog Audio: On a 3–pin terminal block (to accompany the Computer Graphics input)
  • 1 Unbalanced Stereo Analog Audio: On a 3–pin terminal block (to accompany the CV input)
  • 2 Microphone: On 6mm jacks

Outputs
  • 1 HDBaseT: On an RJ–45 connector
  • 1 HDMI: On a female HDMI connector
  • 1 Balanced Analog Stereo Audio: On a 5–pin terminal block
  • 1 Digital Audio: On a female S/PDIF connector
  • 1 Speaker: On a 4–pin terminal block

Ports
  • 1 RS–232 (Data): On a 3–pin terminal block
  • 1 RS–232 (Control): On a 3–pin terminal block
  • 1 Ethernet: 100Mbps, on an RJ–45 connector

Analog Audio
  • Speaker Output: 2x20W into 4Ω

User Interface
  • Controls: IR remote, Input selection, freeze, mute, XGA/1080p reset, and panel lock buttons, OSD menu
  • Indicators: IR, selected input LEDs

Power
  • Source: 100–240V AC 50/60Hz
  • Consumption: 130VA



Download Product catalog
  • 2 Mic Inputs
  • 48V Phantom Power for Microphone
  • Control — RS–232, Ethernet & IR
  • Speaker Output
  • PoE Provider
