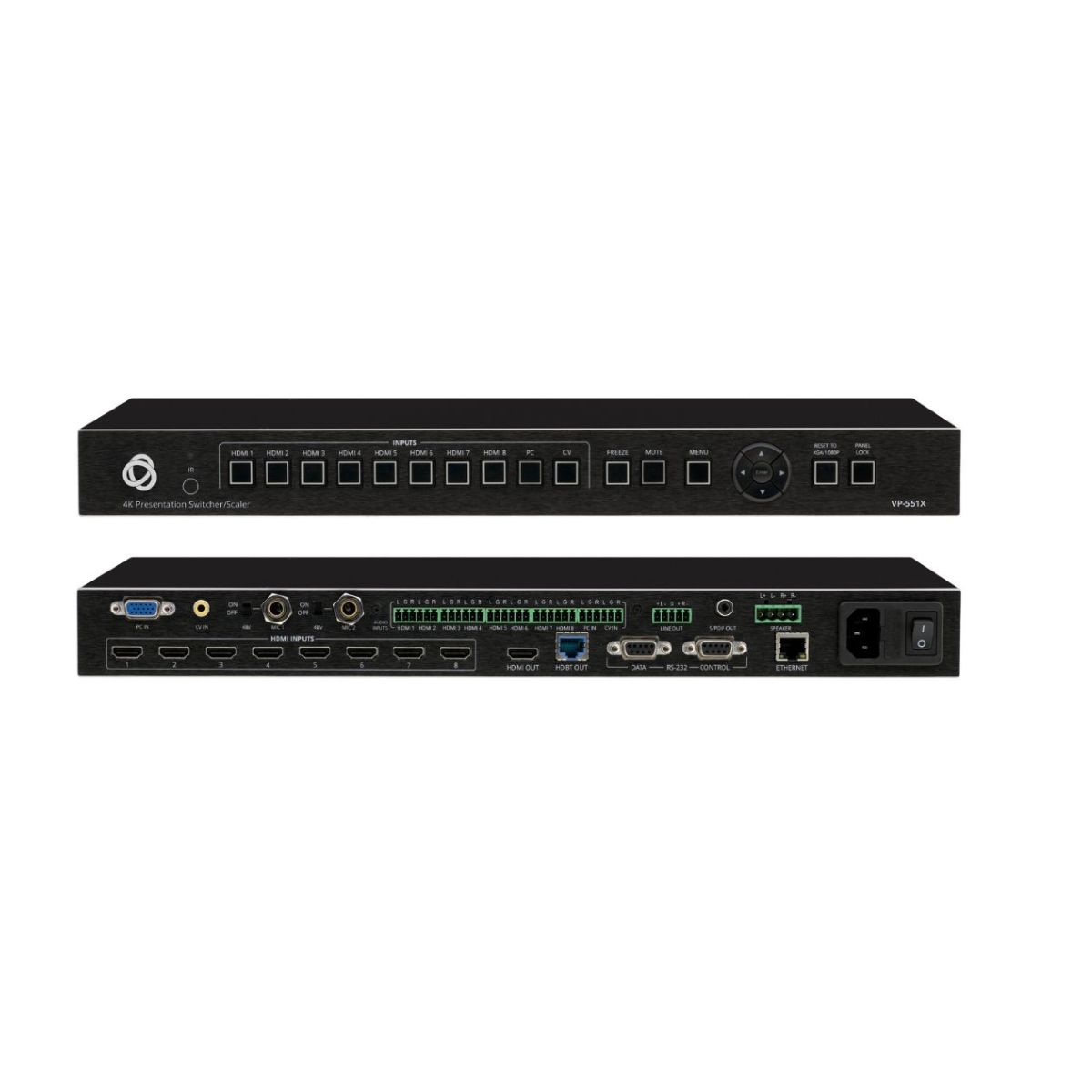

VP-551X 10–Input 18G 4K

The VP-551X is a versatile professional presentation scaler and switcher supporting 4K@60Hz (4:4:4) HDMI, VGA, and composite video signals. It provides advanced video scaling and flexible audio processing, allowing users to select either embedded HDMI audio or companion audio from multiple analog inputs. The processed AV signal is simultaneously transmitted through HDMI and HDBaseT outputs, while audio is also available via balanced stereo output, S/PDIF digital output, and integrated loudspeaker outputs.

Contact to Seller
  • 2 Mic Inputs
  • 48V Phantom Power for Microphone
  • Control — RS–232, Ethernet & IR
  • Speaker Output
  • PoE Provider
Download Product catalog
Inputs 8 HDMI: On female HDMI connectors
  1 Computer Graphics: On a 15−pin HD connector
  1 Composite Video: On an RCA connector
  8 Unbalanced Stereo Analog Audio: On 3−pin terminal blocks (1 to accompany each of the HDMI inputs)
  1 Unbalanced Stereo Analog Audio: On a 3−pin terminal block (to accompany the Computer Graphics input)
  1 Unbalanced Stereo Analog Audio: On a 3−pin terminal block (to accompany the CV input)
Outputs 1 HDBaseT: On an RJ–45 connector
  1 HDMI: On a female HDMI connector
  1 Balanced Analog Stereo Audio: On a 5–pin terminal block
  1 Digital Audio: On a female S/PDIF connector
  1 Speaker: On a 4−pin terminal block
Video Max. HDBT Range 130m (430ft) at 1080p@60Hz 36bpp) 100m (330ft) at 4k @60Hz (4:2:0)
Ports 1 RS–232 (Data): On a 3–pin terminal block
  1 RS–232 (Control): On a 3–pin terminal block
  1 Ethernet: 100Mbps, on an RJ–45 connector
Analog Audio Speaker Output: 2x20W into 4Ω
User Interface Controls: IR remote, Input selection, freeze, mute, XGA/1080p reset, and panel lock buttons, OSD menu
  Indicators: IR, selected input LEDs
