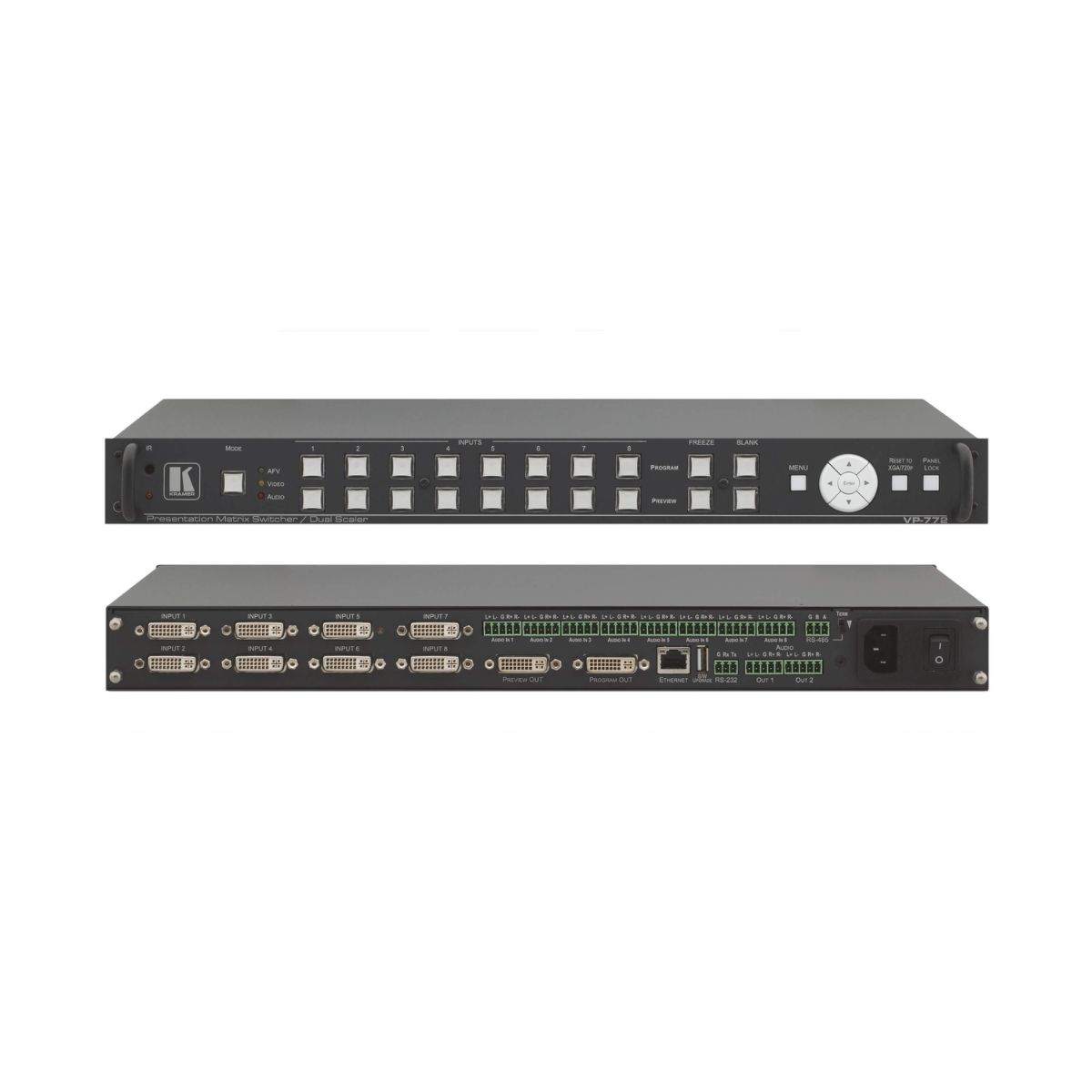

VP-772

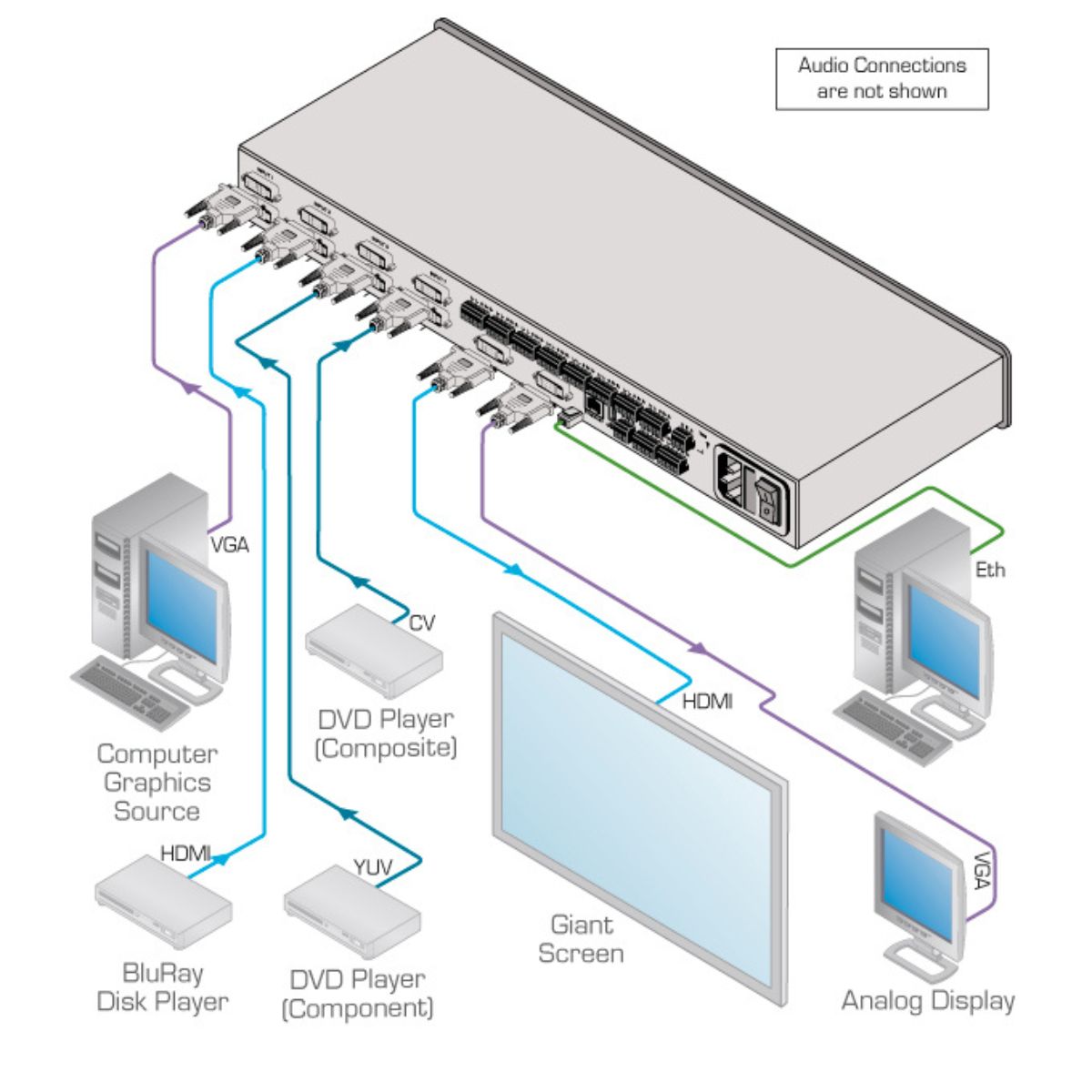

VP−772 is an eight−input high−quality dual scaler with special effect transitions for the rental and staging and the live events market, and for other applications where a dual scaler is needed, with an option to output in 4K30 UHD (3840x2160) in single output mode. It features DVI−U inputs (including analog, DVI, and HDMI support) and balanced stereo audio. The unit scales and processes the selected video and audio inputs, and outputs to two independent DVI−I outputs (program and preview) together with two balanced stereo audio outputs.

Contact to Seller
  • Dual independent scalers with seamless switching through many transition effects in FX Mode
  • K–IIT XL™ PIP — Two fully customizable windows
  • Eight DVI–U input connectors with configurable input type — HDMI, VGA, Component and Composite Video
  • Max Output Resolutions — 4K30 UHD (3840x2160)
  • Luma & Chroma Keying
  • Built–In Test Patterns
  • Advanced EDID Management
  • Audio breakaway
  • Control options: IR RS–232, Ethernet with Web browser, front panel and OSD
Download Product catalog

INPUTS
  • 8 DVI–U (DVI–D, HDMI, PC, YPbPr, and CV) on DVI–I connectors, 8 balanced stereo audio on 5–pin terminal block connectors

OUTPUTS
  • 2 DVI–I (DVI–D, HDMI, and PC) on DVI–I connectors, 2 balanced stereo audio on 5–pin terminal block connector

COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI (deep color) and HDCP

CONTROLS
  • Front panel buttons, OSD, IR remote control, RS–232 on a terminal block connector, Ethernet

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE
  • –40° to +70°C (–40° to 158°F)
