VP-774A

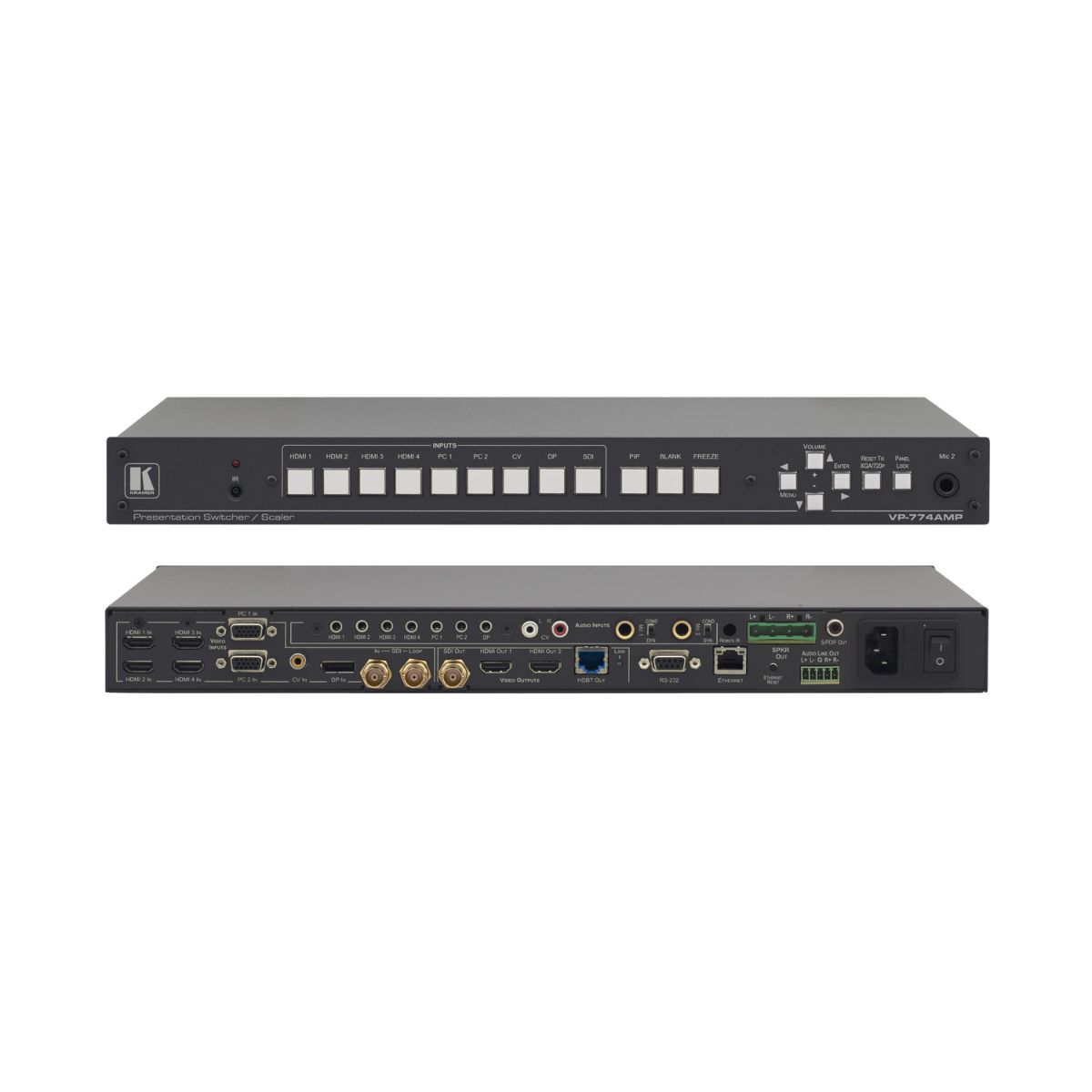

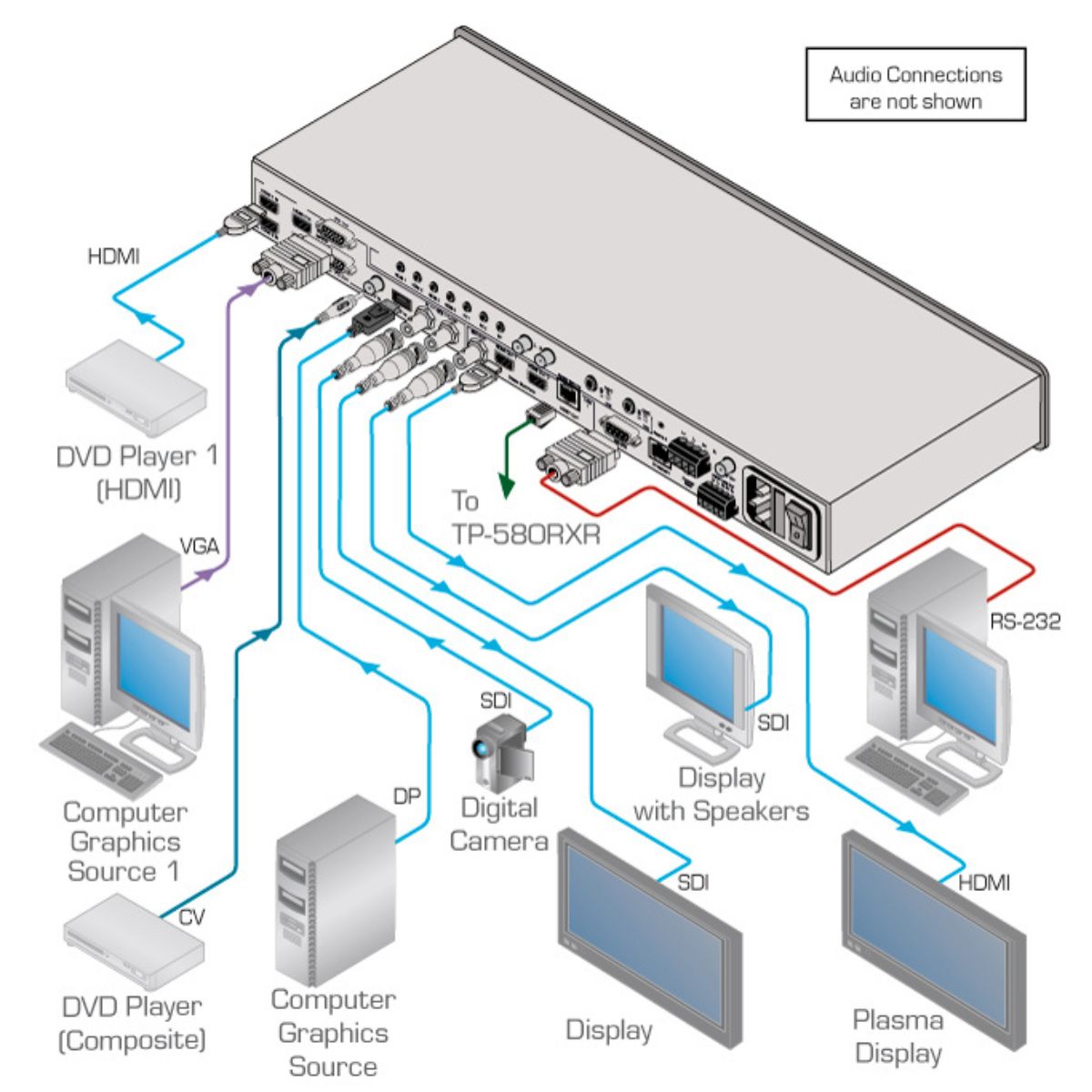

The VP−774AMP is a high−performance presentation switcher and scaler. It accepts one of nine inputs: one DisplayPort (DP), one composite video, two computer graphics, one 3G HD−SDI, and four HDMI signals. It scales the video, embeds the audio, and simultaneously outputs the signal to two identical HDMI, one HDBaseT, and one 3G HD−SDI output, together with S/PDIF and balanced stereo audio outputs. The unit also includes an audio amplifier and speaker outputs.

Contact to Seller

INPUTS
  • 4 HDMI (Deep Color) connectors,
  • 2 VGA on 15–pin HD connectors,
  • 1 composite video on an RCA connector,
  • 1 DisplayPort connector,
  • 4 HDMI, 2 VGA, 1 DP, 1 CV unbalanced stereo audio on left and right RCA connectors,
  • 2 mic on 3.5mm mini jack connectors, 1 3G HD–SDI on a BNC connector

OUTPUTS
  • 2 HDMI (Deep Color) connectors,
  • 1 HDBaseT on an RJ–45 connector,
  • 1 S/PDIF digital audio on an RCA connector,
  • 1 balanced stereo audio on a 5–pin terminal block connector, 1 3G HD–SDI on a BNC connector, 1 stereo speaker output, 2x10W, on a 4–pin terminal block connector

STANDARDS COMPLIANCE
  • Supports HDMI (Deep Color), HDCP, DisplayPort 1.1a

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE
  • –40° to +70°C (–49° to 158°F)

HUMIDITY
  • 10% to 90%, RHL non–condensing



Download Product catalog
  • Max. Data Rate — 6.75Gbps (2.25Gpbs per graphic channel).
  •  Multi–Standard SDI Support — SDI (SMPTE 259M), HD–SDI (SMPTE 292M), and 3G HD–SDI (SMPTE 424M).
  •  Scaled Outputs — 2 HDMI, 1 HDBaseT, 1 3G HD–SDI (all outputs work simultaneously).
  •  Output Resolutions — HDTV and computer graphics up to 2K and 1080p/UXGA with selectable refresh rates.
  •  HDMI Deep Color Support — For all inputs and outputs.
  •  Luma Keying — Via PIP window.
  •  Vertical Keystone Operation.
  •  Built–in Proc–Amp — With enhanced functions such as color correction, gamma, and dither.
