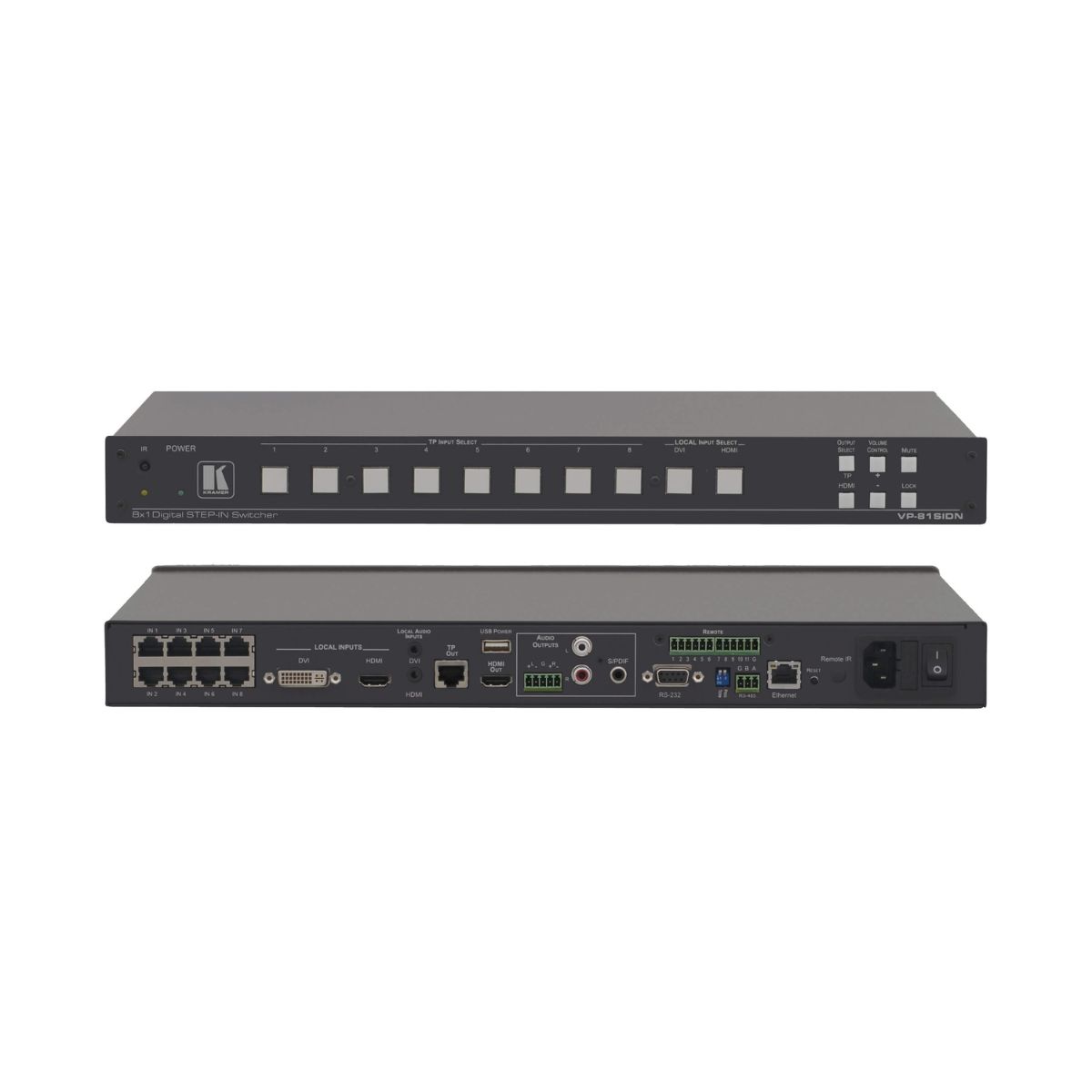

VP-81SIDN

The VP−81SIDN is a high−performance digital switcher for DGKat twisted pair, DVI and HDMI signals. The unit has DVI and HDMI local inputs and eight DGKat inputs from HDMI, DVI, DisplayPort, and computer graphics video step−in modules, each of which has a step−in button to select the input on the switcher.

Contact to Seller
  •  Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  Cascades Up to Four Units — Via the HDMI port to provide up to 8 twisted pair inputs.
  •  Step–In Support — Supports the SID range of DGKat Step–in Commander panels for remote inputs and remote step–in control.
  •  USB Power Port — Provides power to USB devices and KW–11.
Download Product catalog

INPUTS
  • 8 DGKat twisted pair on RJ–45 connectors
  • 1 DVI–D, 1.2Vpp on a DVI Molex 24–pin (F) connectors, DDC signal 5Vpp (TTL), 1 HDMI
  • 2 unbalanced stereo audio (1 for DVI and 1 for HDMI) on 3.5mm mini jacks

OUTPUTS
  • 1 DGKat twisted pair on an RJ–45 connector, 1 HDMI
  • 1 balanced stereo audio on a 5–pin detachable terminal block, 1 unbalanced stereo audio on 2 RCA connectors, 1 digital audio on an RCA connector, 1 USB power port

BANDWIDTH
  • 4.95Gbps (1.65Gbps per graphic channel)

STANDARDS
  • HDMI with Deep Color, x.v.Color™ and 3D

POWER CONSUMPTION
  • 100–240V AC, 50/60Hz 68VA

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)
