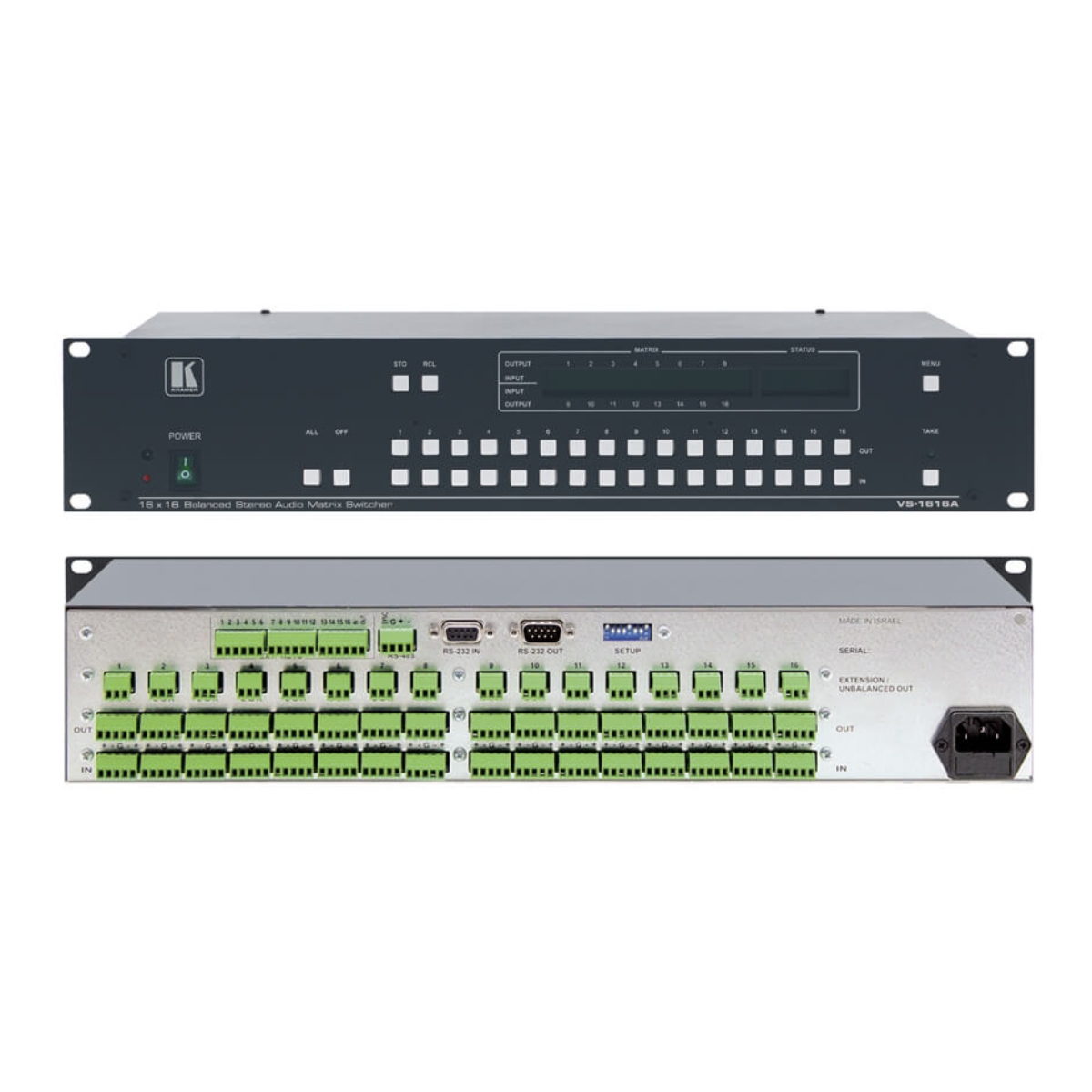

VS-1616A Stereo Audio Matrix Switcher Highlights
The VS-1616A is a high-performance matrix switcher for balanced stereo audio signals, allowing flexible routing of any input to any or all outputs simultaneously for professional audio distribution applications.
- xpandable to 96x96 Using Multiple Units.
- S/N Ratio — 82.2dB unweighted (1Vpp).
- Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
- Take Button — Executes multiple switches all at once.
- Control — Front panel, RS–232 (K–Router™ Windows®–based Kramer software is included), RS–485, contact closure, & IR remote (available upon request).
| INPUTS | 16 balanced stereo audio, +4dBu/10kΩ on detachable terminal blocks |
| OUTPUTS | 16 balanced stereo audio, +4dBu/50Ω on detachable terminal blocks |
| MAX. OUTPUT LEVEL | 20Vpp |
| BANDWIDTH (-3dB) | 100kHz |
| S/N RATIO | 82.2dB unweighted |
| CROSSTALK | −80dB @1kHz |
| COUPLING | COUPLING |
| AUDIO THD + NOISE | 0.04% |
| AUDIO 2nd HARMONIC | 0.002% @1kHz |
| CONTROL | Front panel buttons, RS−232, RS−485, contact closure, & IR remote (available upon request |
| INDICATORS | 8−character display on the front panel |
| POWER CONSUMPTION | 115/230V AC, 50/60Hz, 23VA |
| INCLUDED ACCESSORIES | Power cord, Windows®−based Kramer control software, null−modem adapter |
| Product Dimensions | 19" x 7.24 x 2U (43.6cm x 18.40cm x 8.80cm) W, D, H |
