VS-1616D

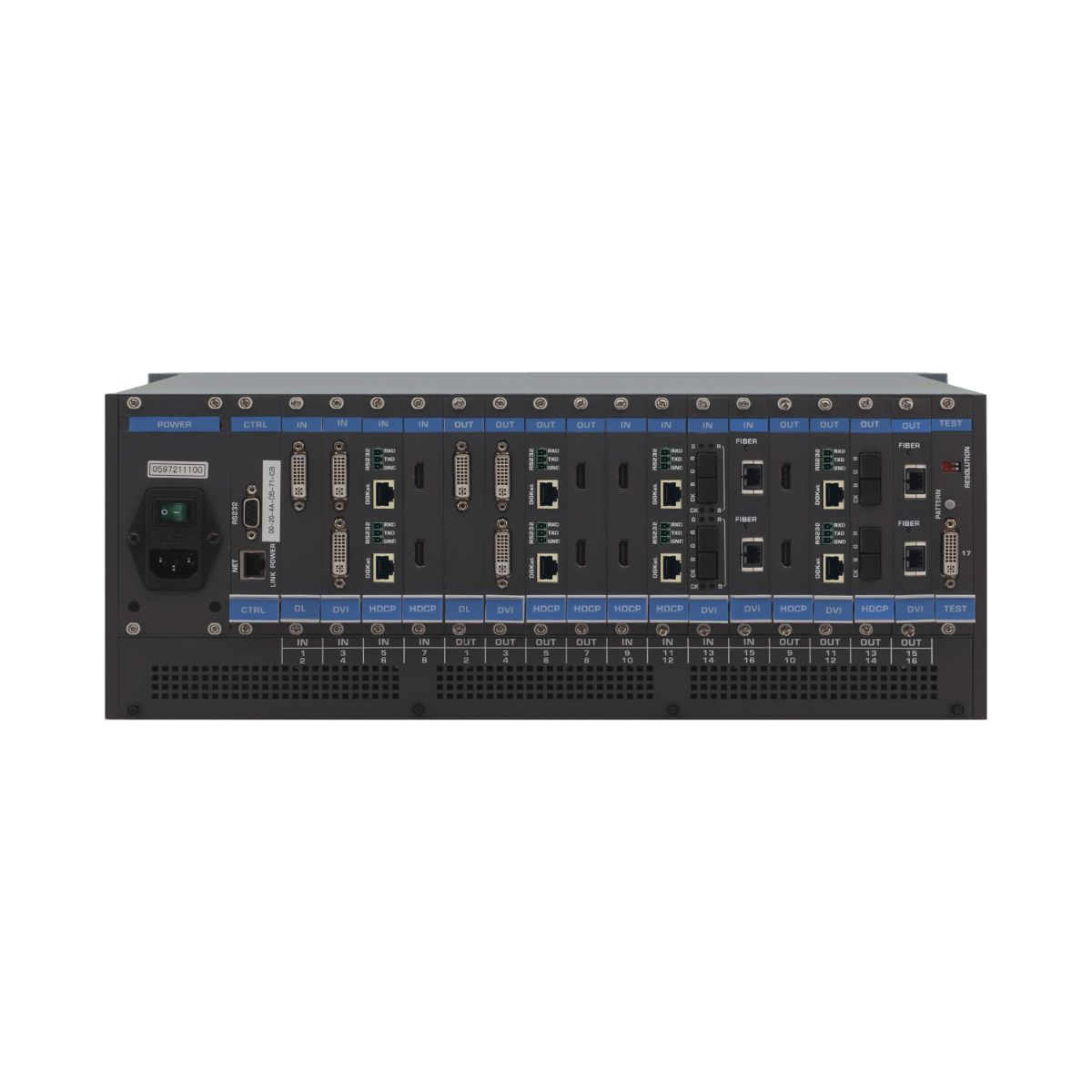

The VS−1616D is a high−performance matrix switcher chassis for AV signals. The unit is modular and populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. The chassis includes a power supply, control module and a test module that can monitor and test any input and output in the matrix. VS−1616D supports a wide variety of input and output cards for different AV signals.

Contact to Seller
  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel) when using compatible cards.
  •  HDTV Compatible.
  •  HDCP Compliant — With DVI (HDCP), HDMI, F670, HDBaseT, HDMI with audio and DGKat modules.
  •  HDMI Support.
  •  Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  •  Optional Fast Switching Support — For fraction-of-a-second switching.
Download Product catalog

INPUTS
  • 2 to 16 (in increments of 2) of various inputs
  • See ACCESSORIES & RELATED PRODUCTS

OUTPUTS
  • 2 to 16 (in increments of 2) of various outputs
  • See ACCESSORIES & RELATED PRODUCTS

MAX. DATA RATE
  • 10.2Gbps (3.4Gbps per graphic channel) depending on the cards used

MAX RESOLUTION
  • Up to 4K @60Hz (4:2:0)

CONTROLS
  • Front panel buttons, infrared remote control transmitter, RS–232, Ethernet

SWITCHING
  • Confirm or At Once for immediate switching
