VS-1616DN-EM

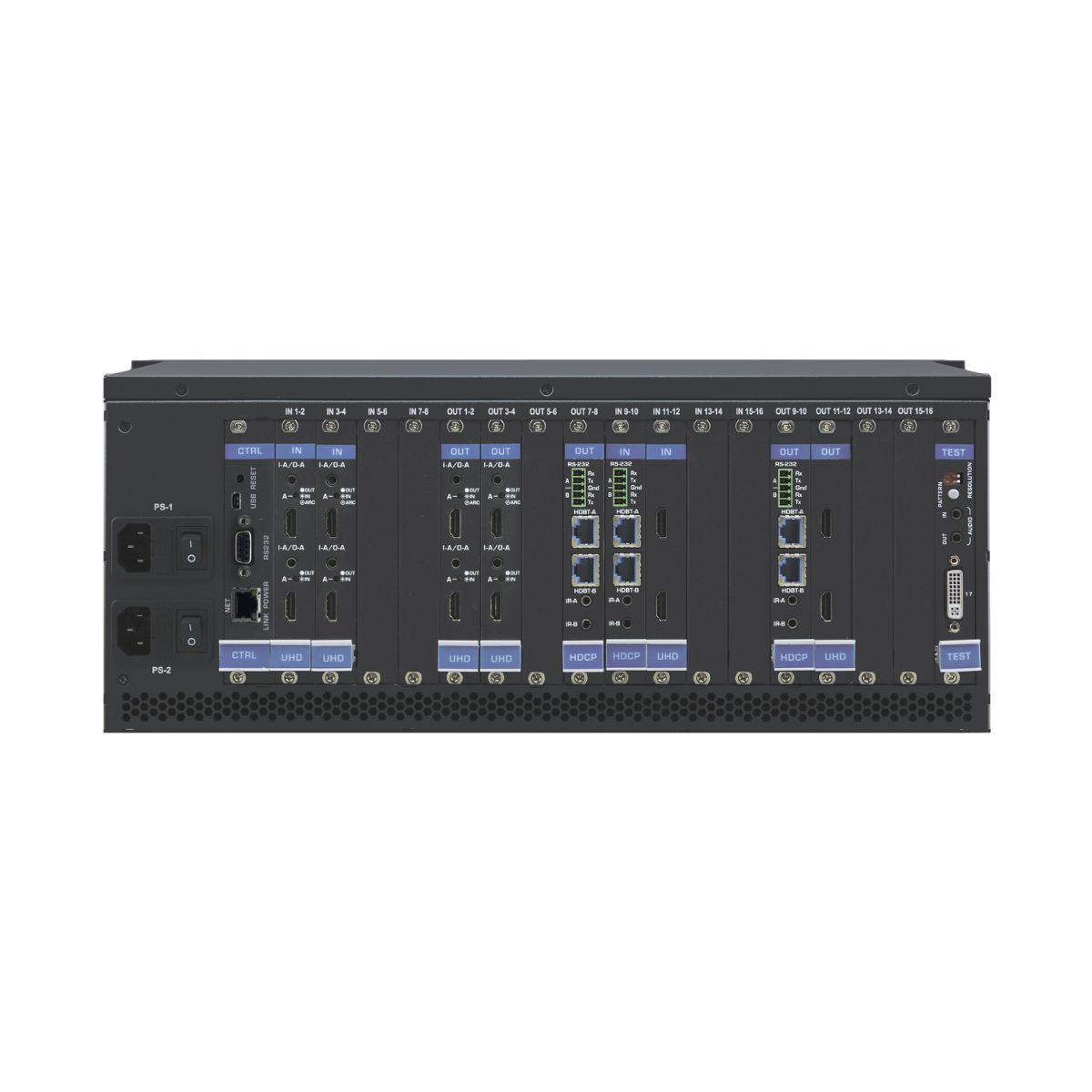

VS−1616DN−EM is a high−performance 2x2 to 16x16 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals. The unit is a multi−format digital switcher, populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. The chassis includes optional dual, redundant power supplies, a control module, and a test module that can monitor and test any input and output in the matrix. VS−1616DN−EM supports a wide variety of input and output cards for different AV signals.

Contact to Seller
  • HDTV Compatible.
  •  HDCP Compliant — With DVI (HDCP), HDMI, F670, HDBaseT, and HDMI with audio and DGKat modules.
  •  HDMI Support.
  •  Cables — For optimum range and performance, use recommended Kramer cables.
  •  Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
Download Product catalog

INPUTS
  • 2 to 16 (in increments of 2) of various inputs
  • See ACCESSORIES & RELATED PRODUCTS

OUTPUTS
  • 2 to 16 (in increments of 2) of various outputs
  • See ACCESSORIES & RELATED PRODUCTS

MAX. DATA RATE
  • 10.2Gbps (3.4Gbps per graphic channel), depending on the cards used

MAX RESOLUTION
  • 4K@60Hz (4:2:0)

CONTROLS
  • Front panel buttons, infrared remote control transmitter (38kHz–modulated), RS–232, Ethernet, mini USB port, in/out audio testing jacks, and reset button (for future use)

SWITCHING
  • Confirm or At Once for immediate switching
