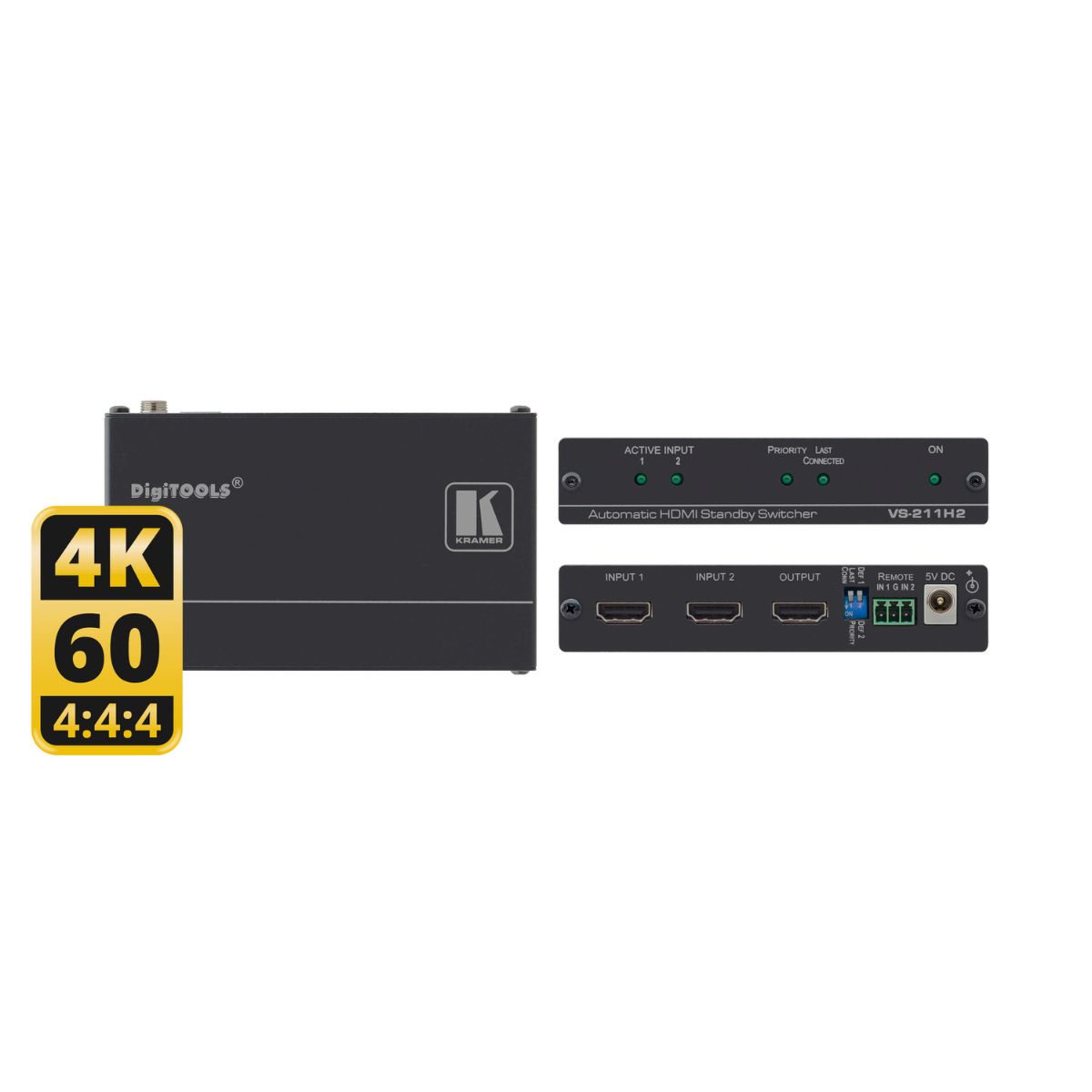

VS-211H2

VS−211H2 is a high−performance auto switcher for 4K@60Hz (4:4:4) HDMI video signals. Offering priority and last−connected auto switching scheme options, it automatically switches input signals to the output connection, according to the selected switching scheme, and based on active video signals detection.

Contact to Seller
  • Up to 18Gbps Data Rate
  • Up to 4K@60Hz (4:4:4) resolution
  • HDR and HDCP 2.2 compliant
Download Product catalog

Inputs
  • 2 HDMI: On female HDMI connectors

Outputs
  • 1 HDMI: On a female HDMI connector

Ports
  • 2 Contact-Closure Switches: On a 3–pin terminal block connector for remote device operation

Video
  • Max. Data Rate: 17.82GBPS (5.94Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:4:4)
  • HDMI Support: Deep Color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
  • Standards Compliance: HDR10, HDCP 2.2 (does not support conversion to HDCP 1.4)

User Interface
  • Controls: Status/priority DIP switches, contact closure remote control

REGULATORY
  • Certification: EMC EN 55032, IEC 60950–1(ed.2), IEC 60950–1(ed.2)am1, IEC 60950–1(ed.2)am2
