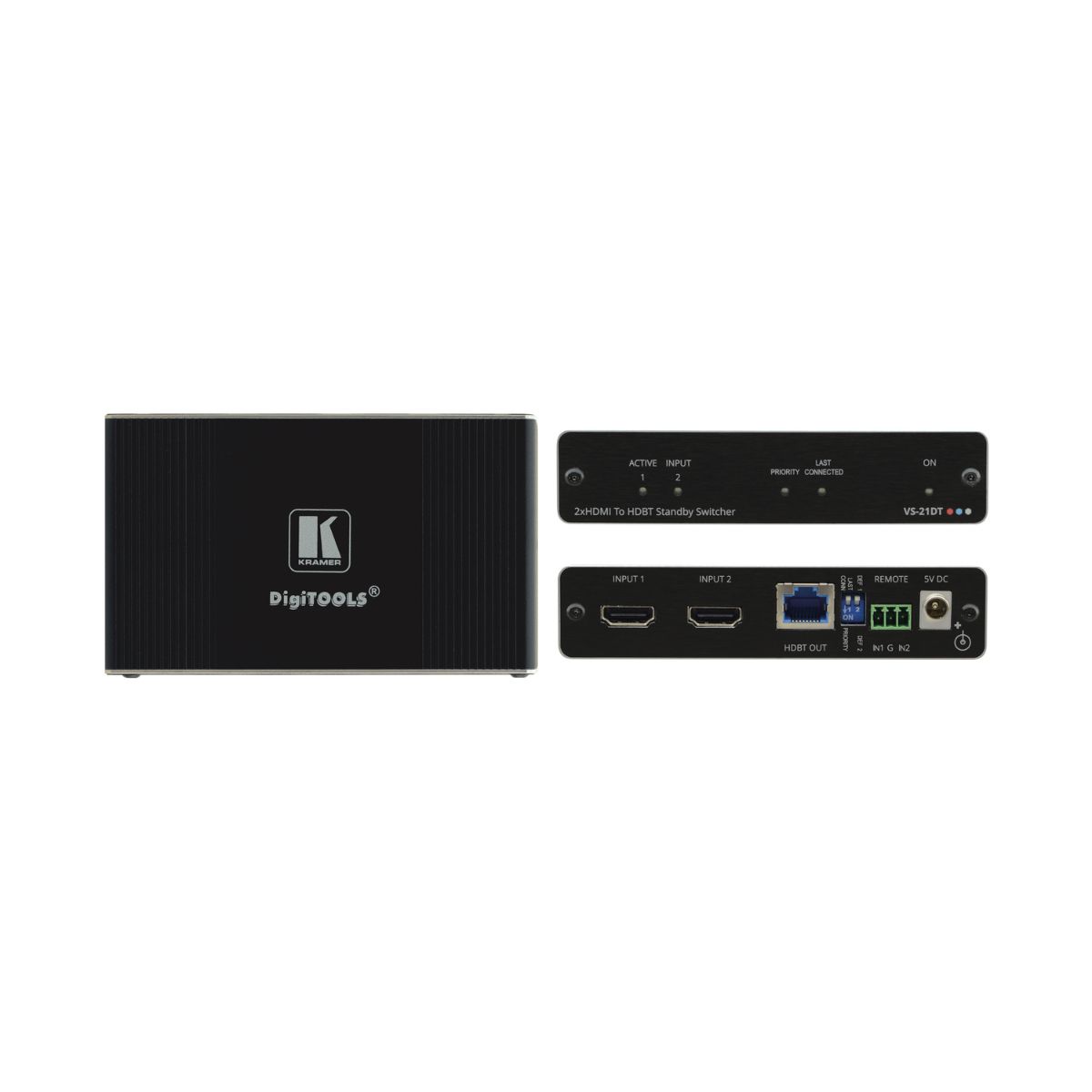

VS-21DT

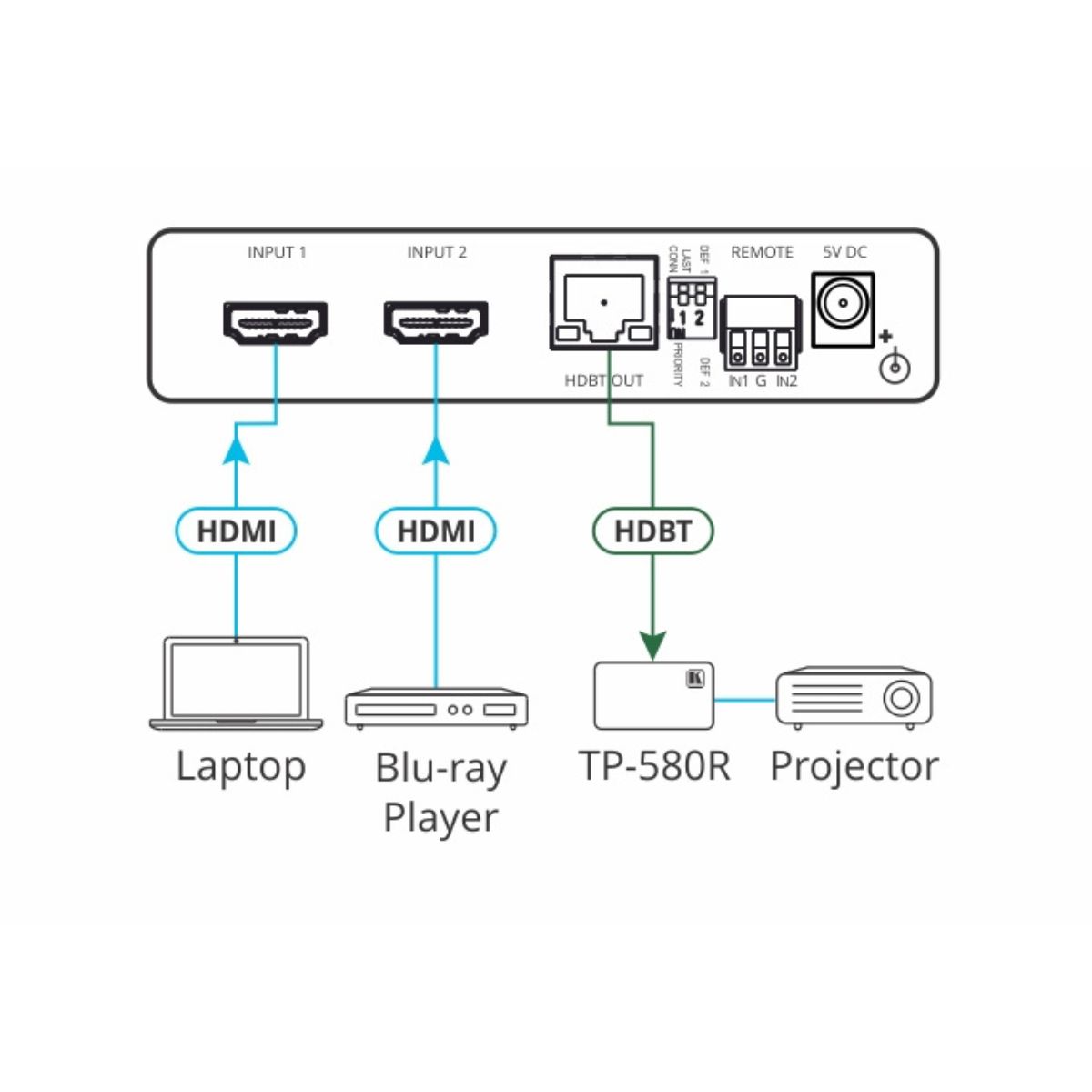

VS−21DT is a high−performance automatic switcher for 4K, HDBaseT, HDMI, and HDCP 2.2 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Contact to Seller
  •  Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
  •  Max. Resolution — 4K@60Hz (4:2:0).
  •  HDCP 2.2 Compliant.
  •  Supports HDBT 1.0 extension up to 40m reach at 4K@60Hz (4:2:0).
  •  Kramer Equalization and re–Klocking Technology.
  •  HDTV Compatible.
Download Product catalog

Inputs
  • 2 HDMI: On female HDMI connectors

Outputs
  • 1 HDBT 1.0: On an RJ–45 connector

Video
  • Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0)
  • Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4)

User Interface
  • Controls: DIP–switches for selecting switching mode (Priority/Last Connected), contact closure connectors for remote control switches
  • Indicators: Active input, switching mode (Priority/Last Connected) and ON

Power
  • Source: 5V DC
  • Consumption: 1A

REGULATORY CERTIFICATION
  • EMC EN 55032
  • IEC 60950–1(ed.2)
  • IEC 60950–1(ed.2)am1
  • IEC 60950–1(ed.2)am2
