VS-34FD

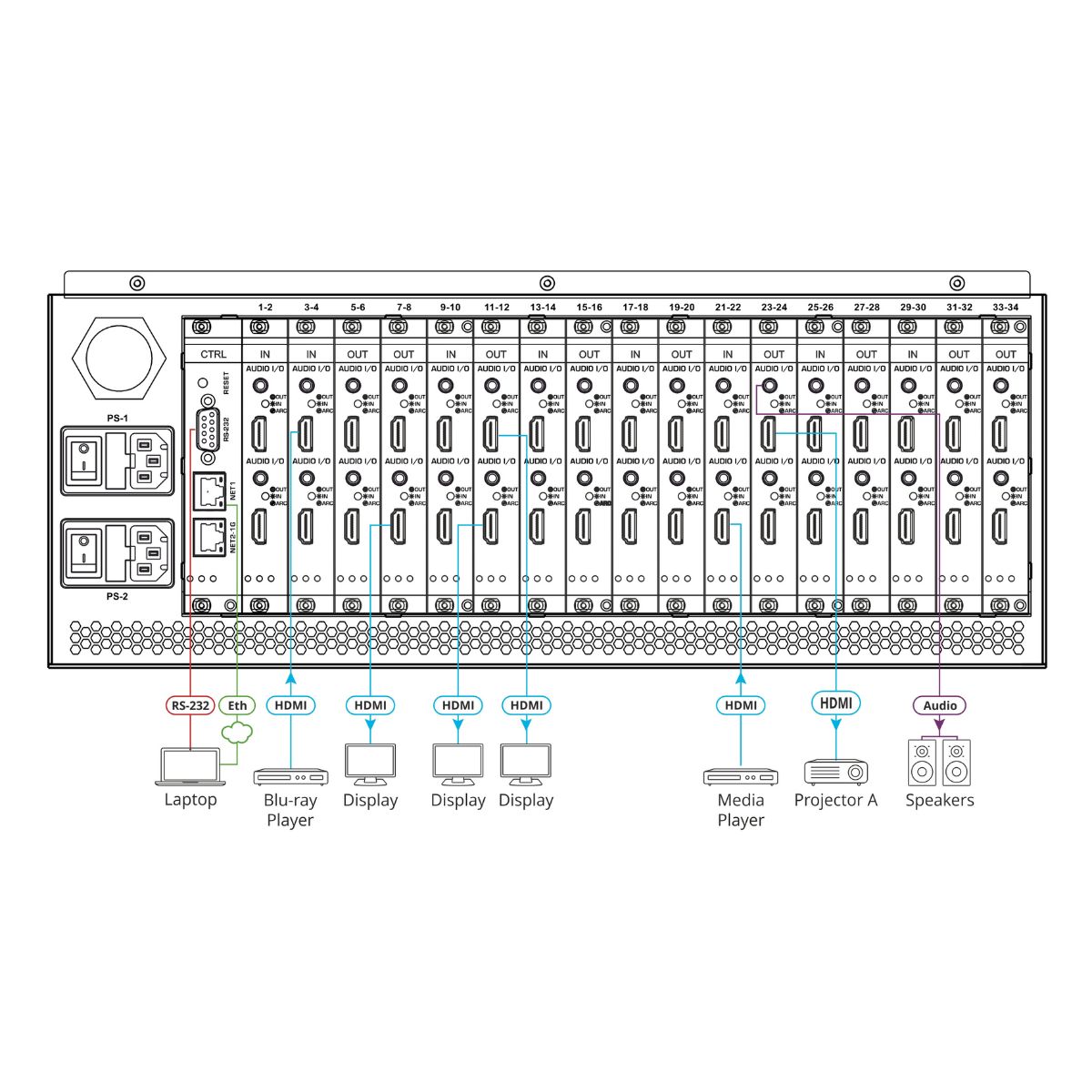

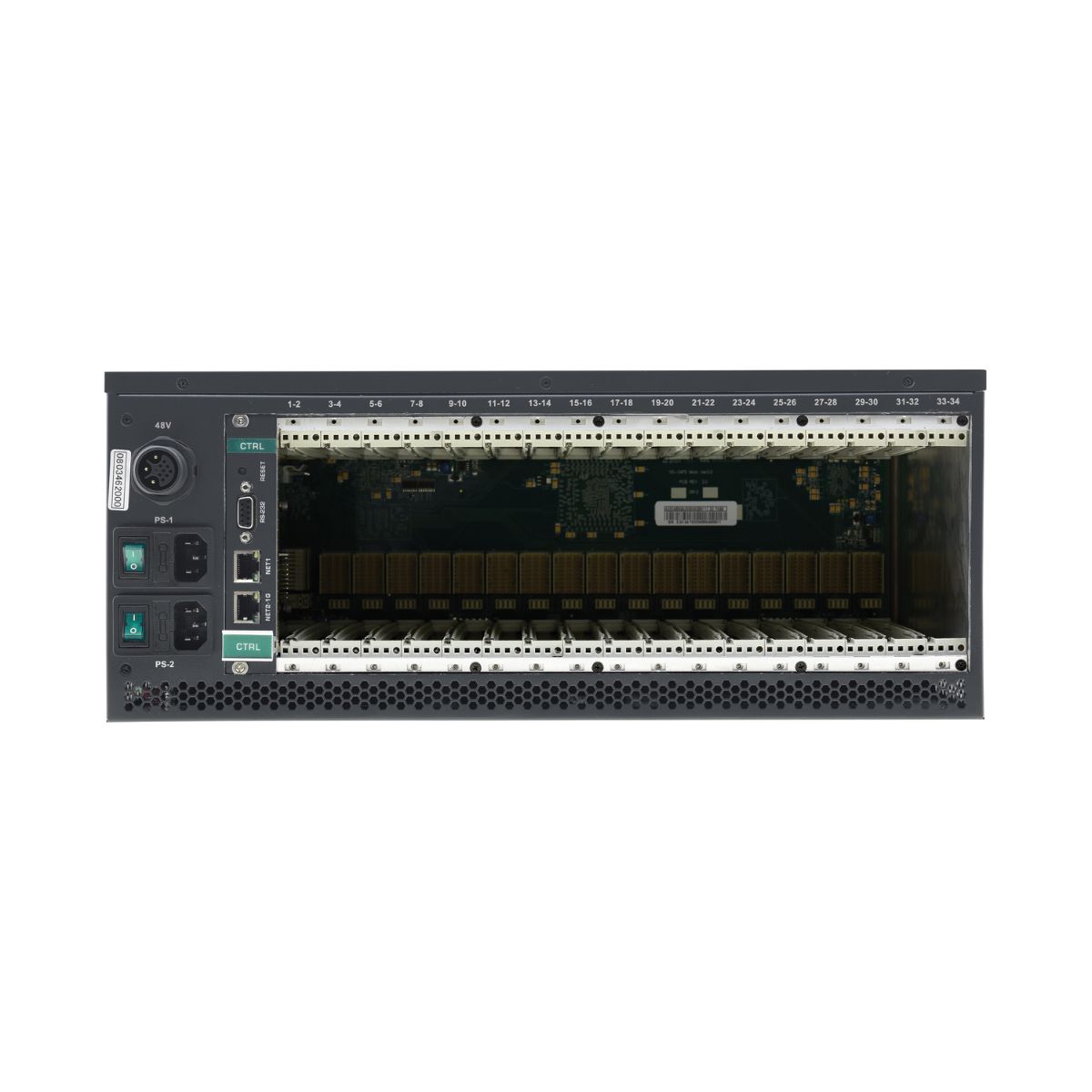

The VS-34FD is a high-performance, 34-port, 8K-ready modular matrix switcher for AV signals including HDMI, HDBaseT, Fiber, VGA, SDI, and analog/digital audio. It features 17 configurable slots for flexible I/O setups (from 2x32 to 32x2 in increments of two), plus a control module and optional redundant power supply.

Contact to Seller
  • Renamed and sold as MTX3–34–M.
  • Max. Data Rate — 50Gbps (12.5Gbps per graphics channel)
  • Mix input/output module formats
  • Each slot supports input or output
  • Control — RS–232, Ethernet, & USB
  • Future Proof — Supports HDMI 2.1 cards, 5K & 10K monitors, 48Gbps data rate
  • Remote chassis management and control through internal Web GUI
Download Product catalog

I/O
  • 2 to 34 (in increments of 2) of various input or output formats: According to installed module cards (see ACCESSORIES & RELATED PRODUCTS tab)

Video
  • Max. Data rate: 50Gbps (12.5Gbps per graphic channel) depending on the cards used
  • Max Resolution: 8K–Ready, depending on the cards used

User Interface

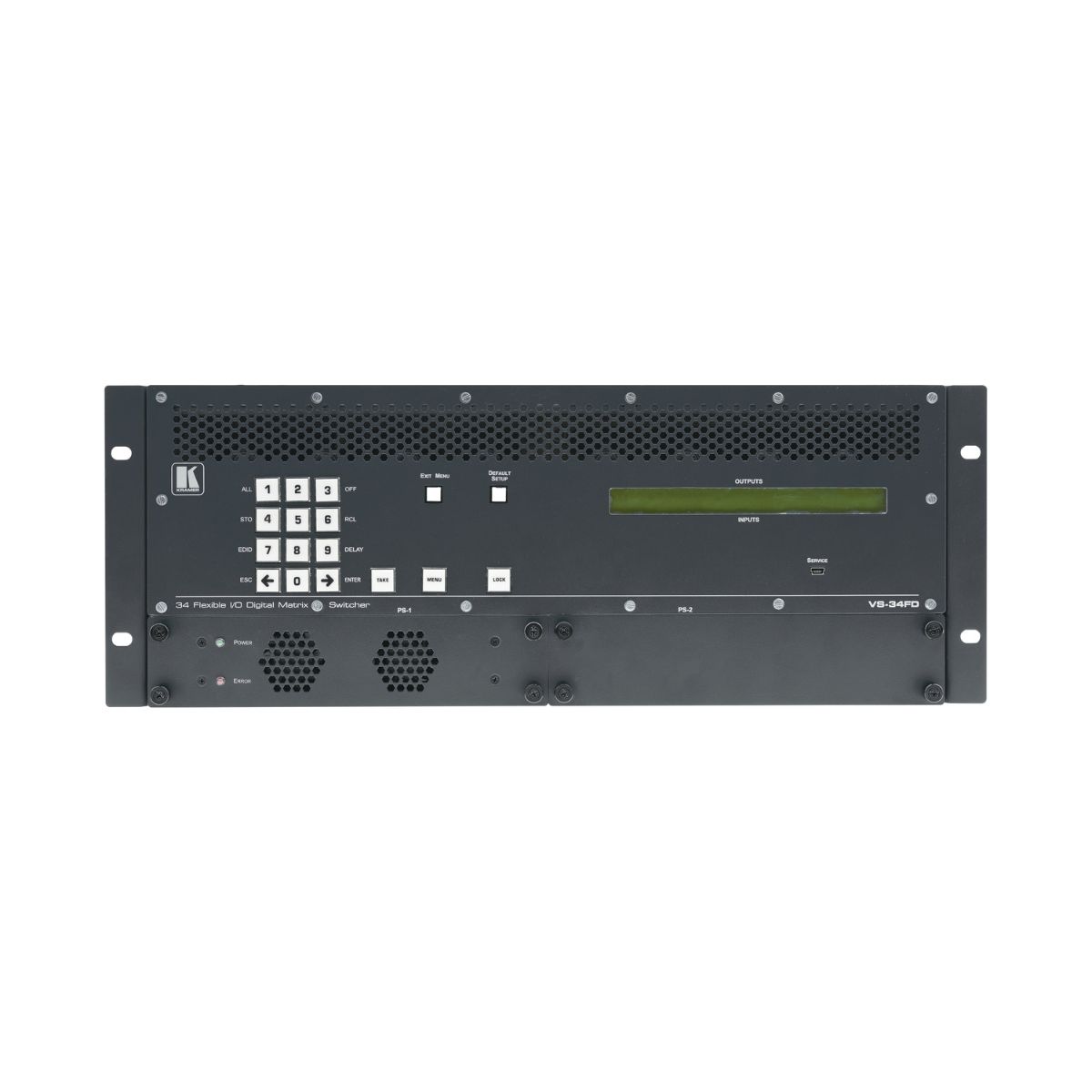

  • Controls: Front panel buttons, RS–232, Ethernet, mini USB port, in/out audio testing jacks, and reset button (for future use)
  • Indicators: Power and error LEDs, inputs/outputs switching LCD display

Environmental Conditions
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing

Power
  • Source: 100–240V AC, 50/60Hz
  • Consumption: 1.5A

Accessories
  • Included: Power cord
