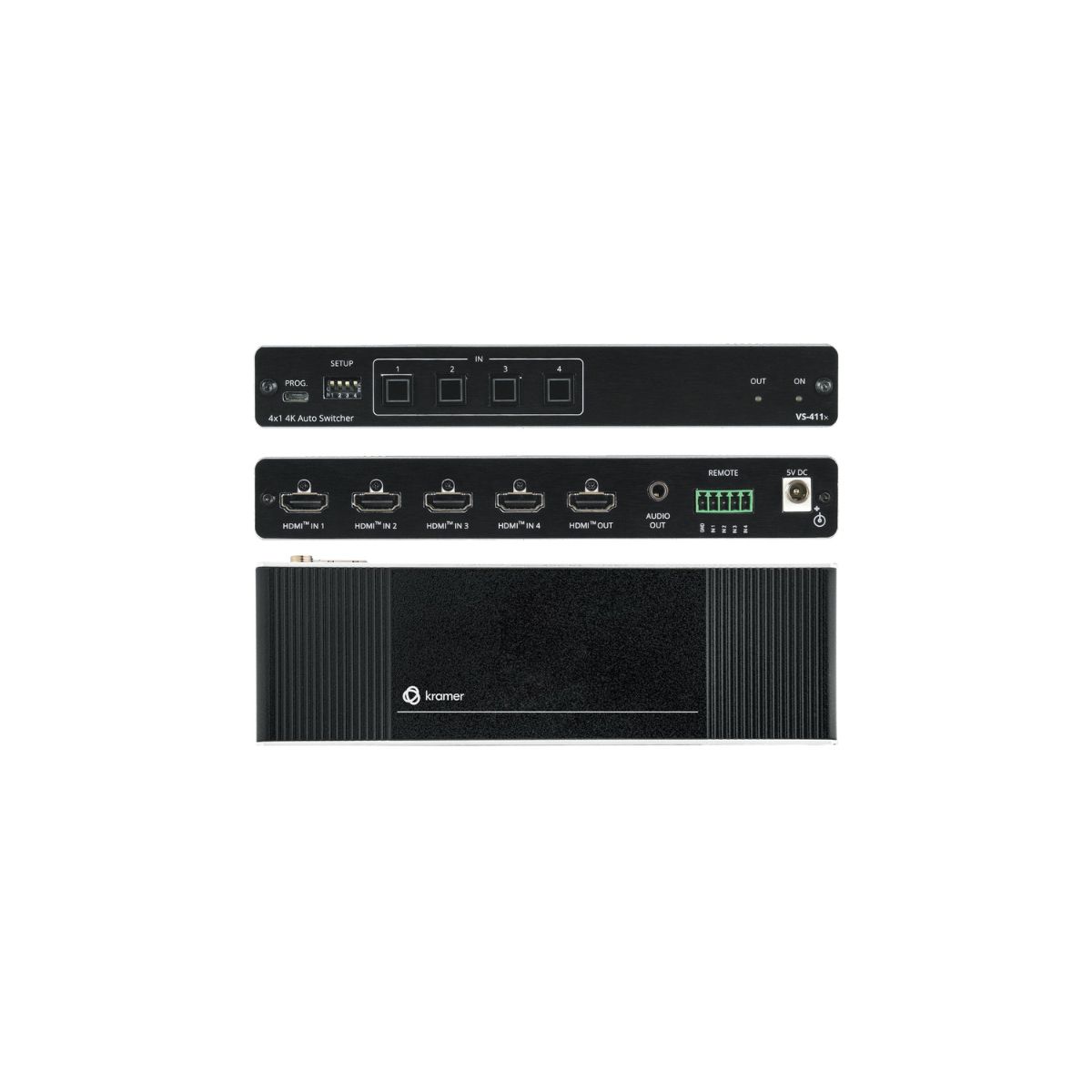

VS-411X

VS−411X is a high−performance 4x1 automatic switcher for 4K HDR, HDMI video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Contact to Seller
  • 4x1 Plug and Play Switcher
  • Up to 4K@60Hz (4:4:4) Resolution
  • Audio De–embedding
  • Compact
Download Product catalog

Inputs
  • 4 HDMI: On a female HDMI connector

Outputs
  • 1 HDMI: On a female HDMI connector
  • 1 Unbalanced Stereo Audio: On a 3.5mm mini jack

Ports
  • Remote Contact Closure: On a 5–pin terminal block connector

Video
  • Max Data Rate: 17.82GBPS (5.94Gbps per graphic channel)
  • Max Resolution: 4K@60 (4:4:4)
  • Compliance: HDR10 as specified in HDMI 2.0, HDCP 2.2

Power
  • Source: 5V DC, 2A
  • Consumption: 5V DC, 600mA

User Interface
  • Controls: Input selection buttons. DIP switches for configuring switching mode and EDID mode
