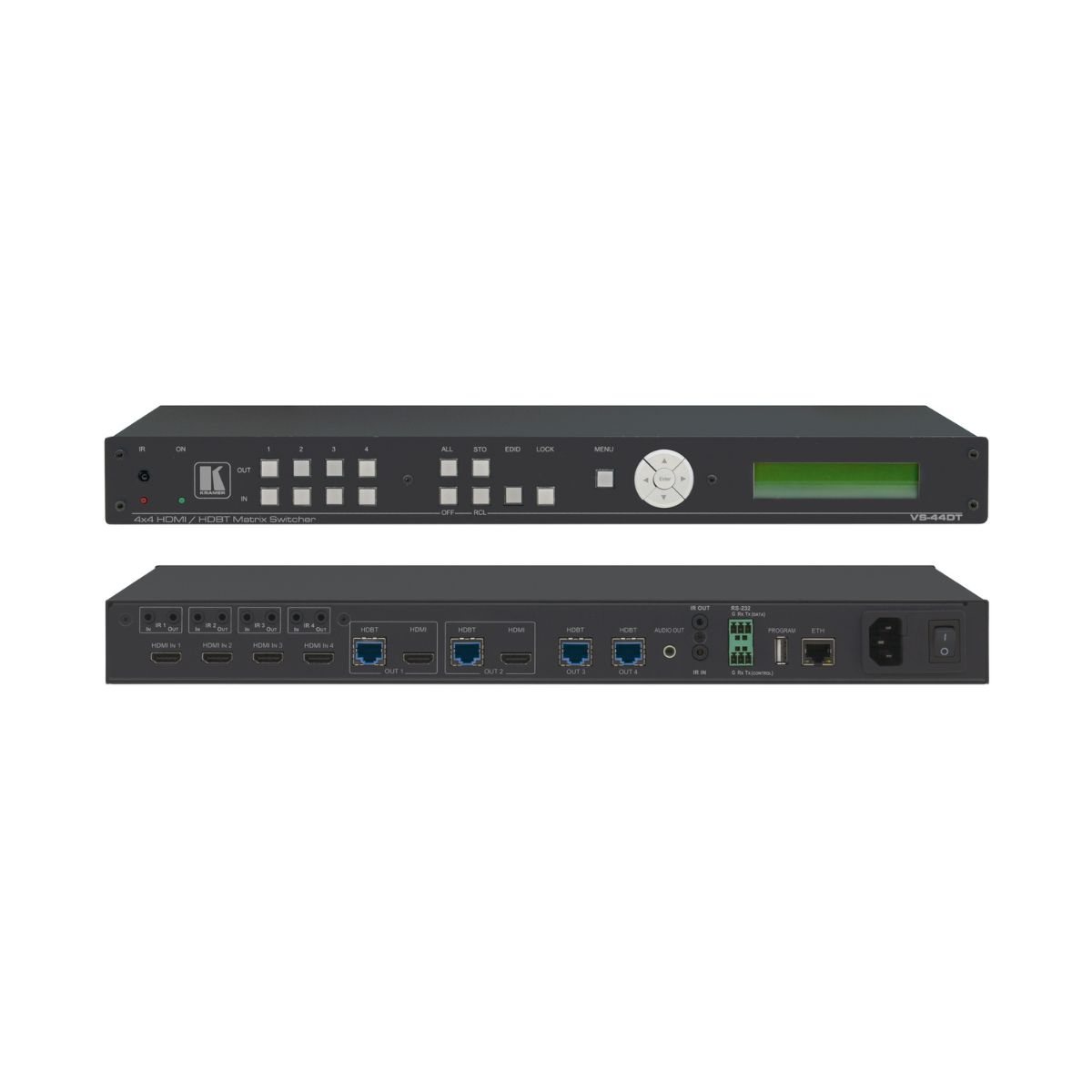

VS-44DT

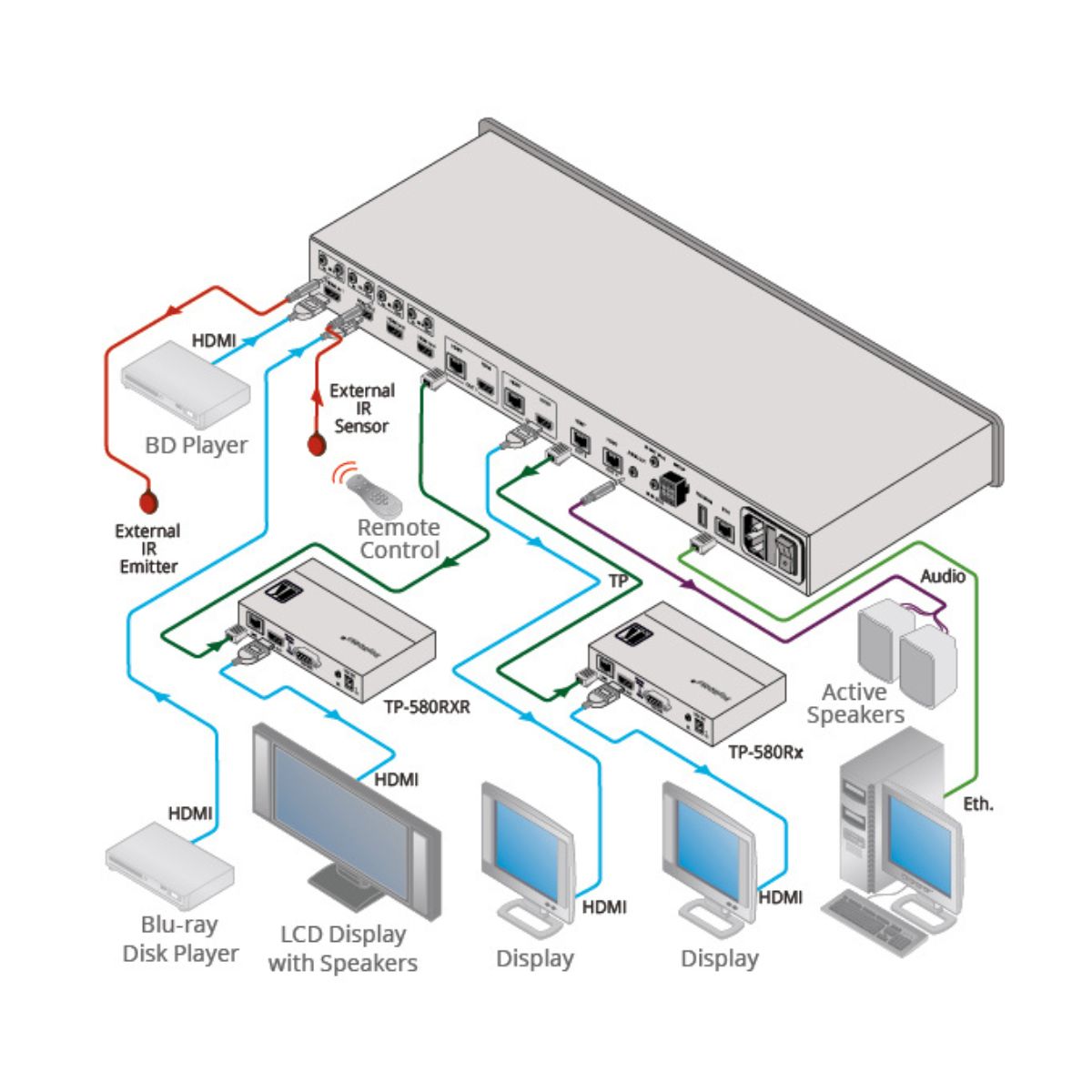

VS−44DT is a 4x4 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher that transmits video, audio, Ethernet, RS−232 and IR signals over extended distances. The unit accepts up to four HDMI and four IR inputs as well as Ethernet and RS−232 network and control.

Contact to Seller
  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  •  Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
  •  HDBaseT Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
  •  Cables — For optimum range and performance, use the recommended Kramer cables available at www.kramerav.com/product/VS–44DT.
  •  HDBaseT Extension — Includes Video, Audio, Ethernet, RS–232 and IR signals.
Download Product catalog

INPUTS
  • 4 HDMI on HDMI connectors, 5 IR on 3.5mm mini jack connectors

OUTPUTS
  • 2 HDMI connectors, 4 HDBaseT on RJ–45 connectors, 5 IR on 3.5mm mini jack connectors, 1 unbalanced stereo audio on a 3.5mm mini jack connector

PORTS
  • 1 Ethernet on an RJ–45 connector, 1 program on a USB connector, 1 RS–232 control on a 3–pin terminal block, 1 RS–232 data on a 3–pin terminal block

MAX. DATA RATE
  • 10.2Gbps (3.4Gbps per graphic channel)

SUPPORTED RESOLUTIONS
  • VGA to WUXGA (reduced blanking), 4Kx2K @30Hz with Deep Color up to 36bpp

HDMI RANGE
  • 15m (49ft) @ 8bit resolution, 10m (33ft) @ 12 bit resolution
