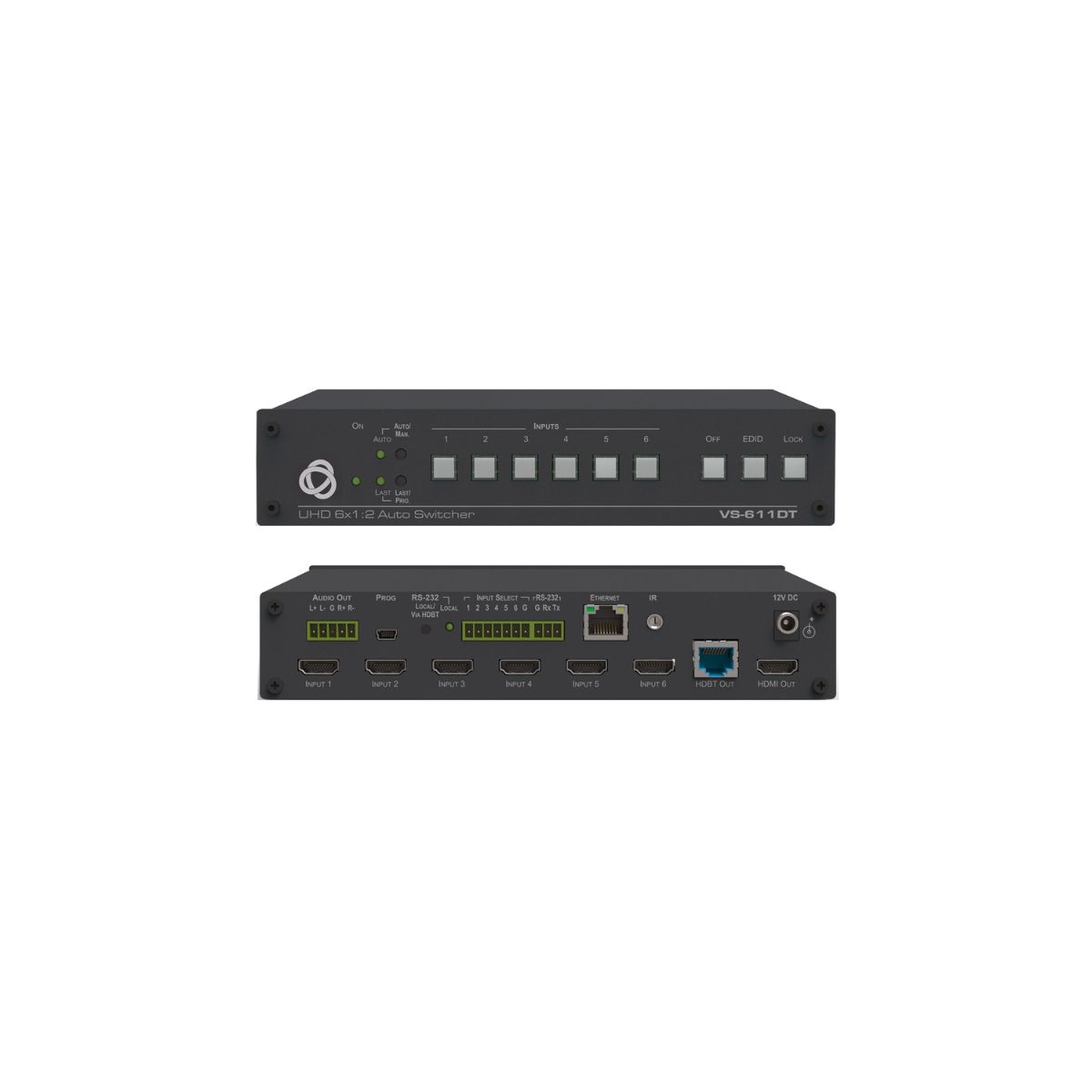

VS-611DT

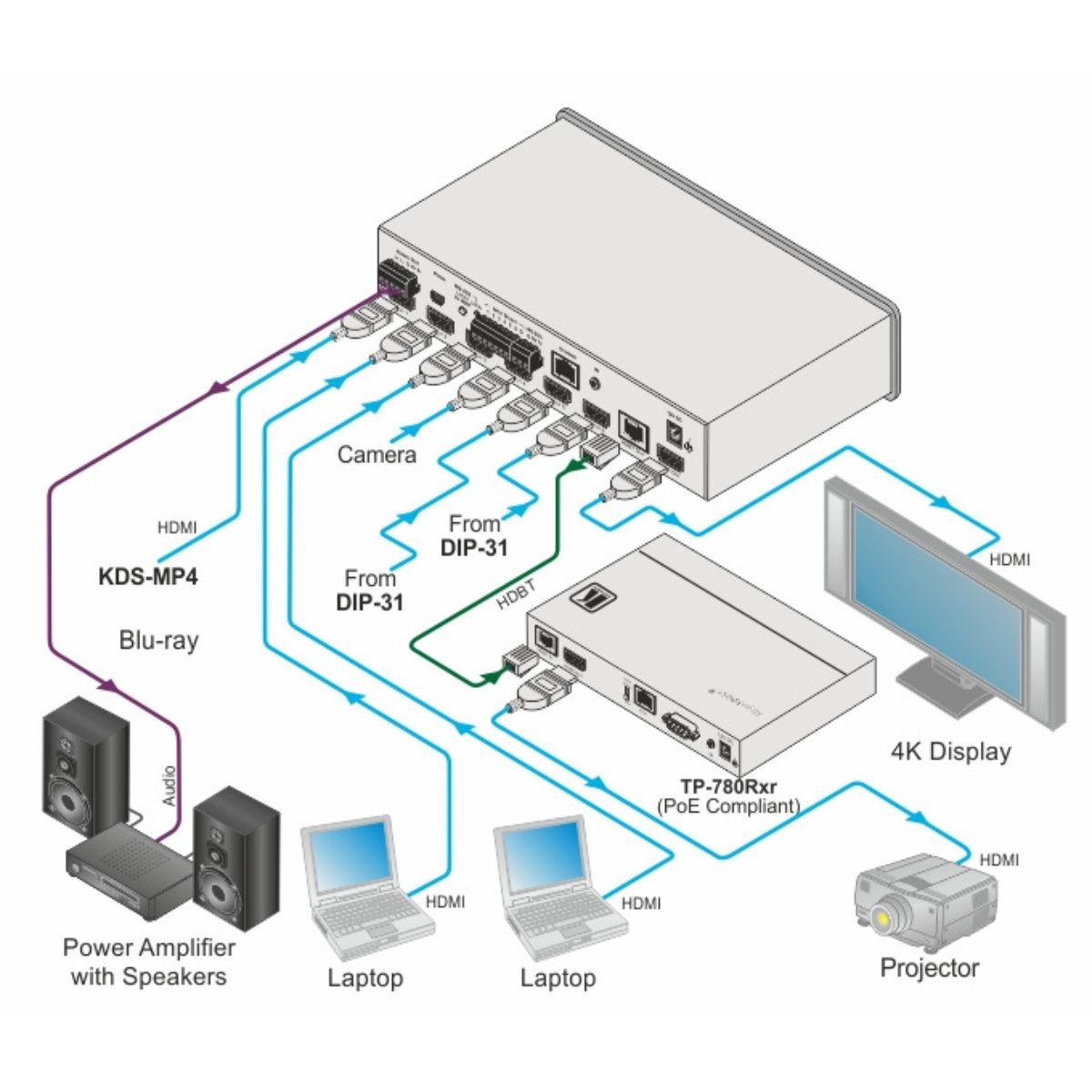

VS−611DT is a high−performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.

Contact to Seller
  • Max. Data Rate — 8.91Gbps (2.97Gbps per graphic channel).
  •  Max. Resolution — 4K@60Hz (4:2:0) and WUXGA.
  •  HDTV Compatible.
  •  HDCP Compliant — Works with sources that support HDCP repeater mode.
  •  HDMI Support — Deep Color, Ethernet, ARC, 7.1 PCM.
Download Product catalog

INPUTS
  • 6 HDMI connectors, 1 IR on a 3.5mm mini–jack

OUTPUTS
  • 1 HDMI connector, 1 HDBaseT on an RJ–45 connector, 1 balanced stereo audio on a 5–pin terminal block

PORTS
  • 1 Ethernet on an RJ–45 connector, 1 RS–232 connector on a 3–pin terminal block, 6 contact closures on a 7–pin terminal block,1 USB mini–A connector for firmware upgrading

MAX. DATA RATE
  • 8.91Gbps (2.97Gbps per graphic channel) with 4K@60Hz (4:2:0) support

COMPLIANCE WITH HDMI STANDARD
  • Deep Color, Ethernet, ARC, up to 7.1 Audio Channels, CEC

OUTPUT RESOLUTIONS
  • Up to UXGA, 4K x 2K, 4K @60 4:2:0
