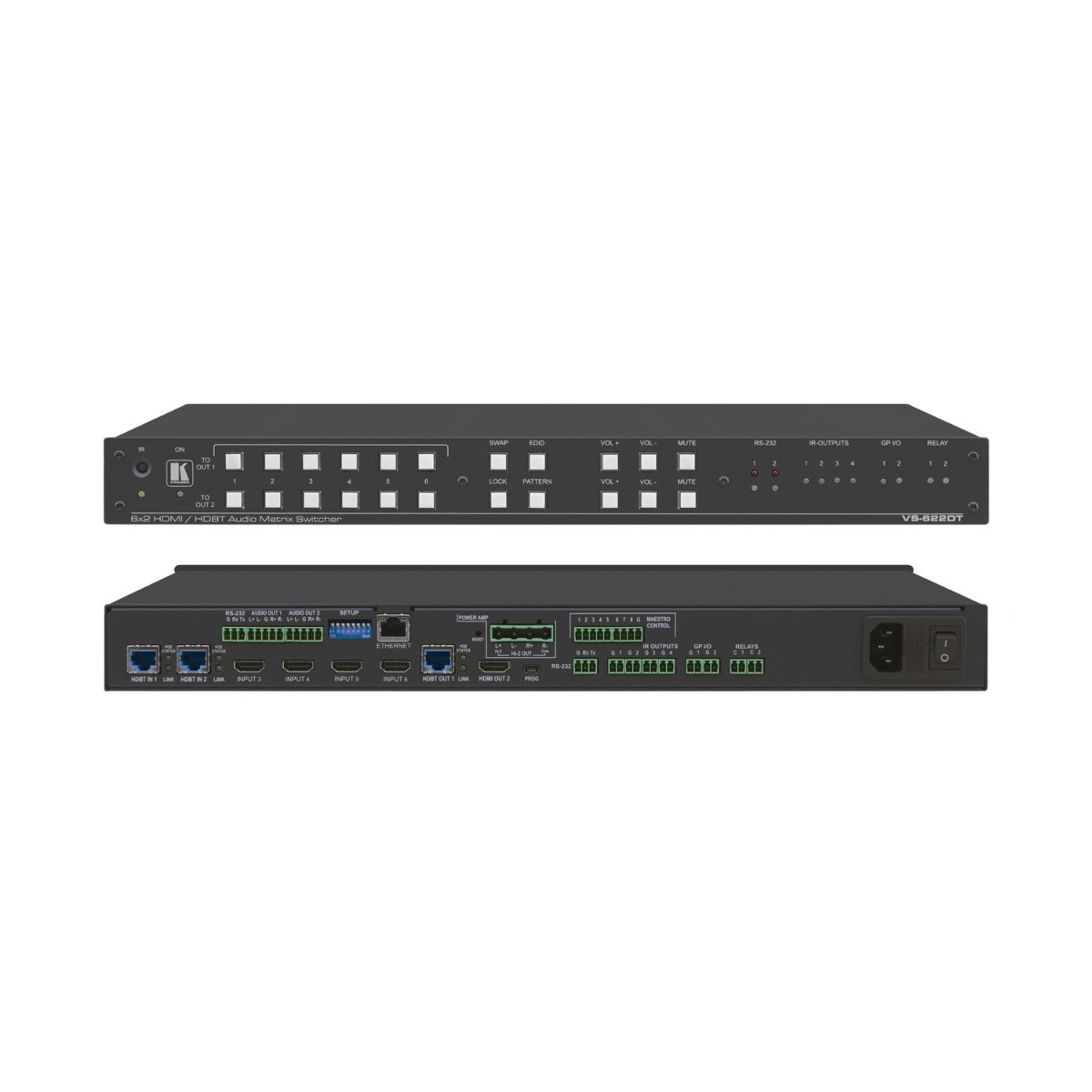

VS-622DT

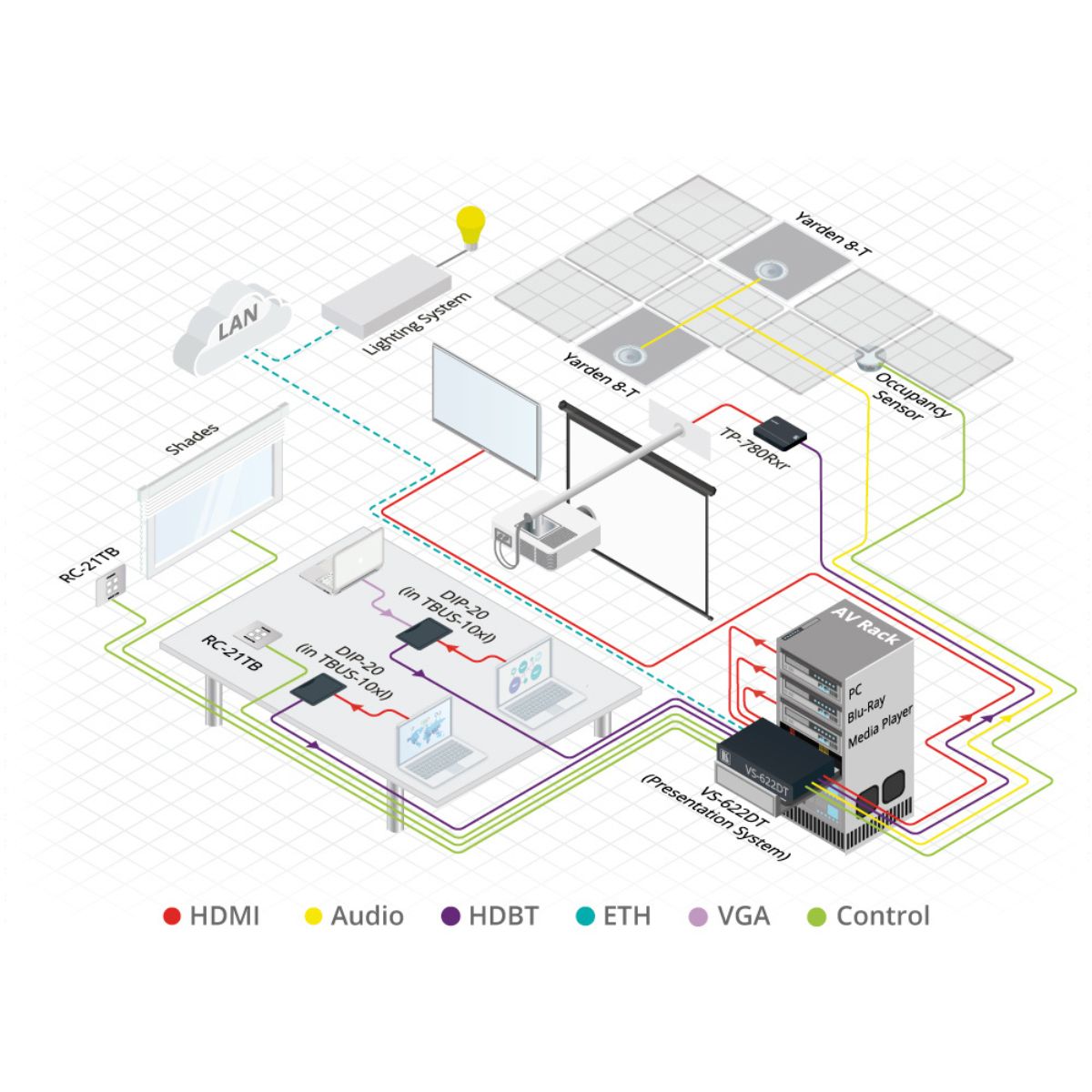

VS−622DT is an all−in−one 4K@60Hz (4:2:0) presentation system with 6x2 HDMI/HDBaseT matrix switching, control gateway, PoE, power amplifier, and Maestro room automation. The unit reclocks and equalizes the signals and can route any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.

Contact to Seller
  • Resolutions up to 4K@60Hz (4:2:0)
  • Data Rate up to 10.2Gbps (3.4Gbps per graphics channel)
  • Control Gateway with RS–232, IR, GPI/O, and Relay Ports
  • Simple and Powerful Maestro 1.5 Room Automation
  • Power Amplifier — 1x120W @70V/100V & 2x60W @8Ω
  • Provides Power (PoE) on All HDBaseT Ports to Compatible Devices
Download Product catalog

Inputs
  • 2 HDBT with PoE: On female RJ–45 Connectors
  • 4 HDMI: On female HDMI connectors

Outputs
  • 1 HDBT with PoE: On a female RJ–45 Connector
  • 1 HDMI: On a female HDMI connector
  • 2 Stereo Balanced Audio: On 5–pin terminal block connectors
  • 1 Power Amplifier for Stereo or 1 Mono Speaker: On a 4–pin large terminal block

Ports
  • 1 Ethernet: On an RJ–45 female connector
  • 1 Control RS-232: On a 3–pin terminal block
  • 1 USB (PROG): On a mini USB connector, for firmware upgrade
  • 1 RS-232: On a 3–pin terminal block
  • 4 IR: On 2–pin terminal block connectors
  • 2 GPI/O: On 2–pin terminal block connectors
  • 2 Relays: On 2–pin terminal block connectors

Video
  • Max Resolution: Up to 4K@60Hz UHD (4:2:0)
  • Compliance: HDCP 1.4

Power Amplifier
  • 1 x 120W @ 70V/100V
  • 2 x 60W @ 4/8Ω

Extension Line
  • Up to 100m (330ft): At 4K@60Hz (4:2:0)
  • Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
  • Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)
