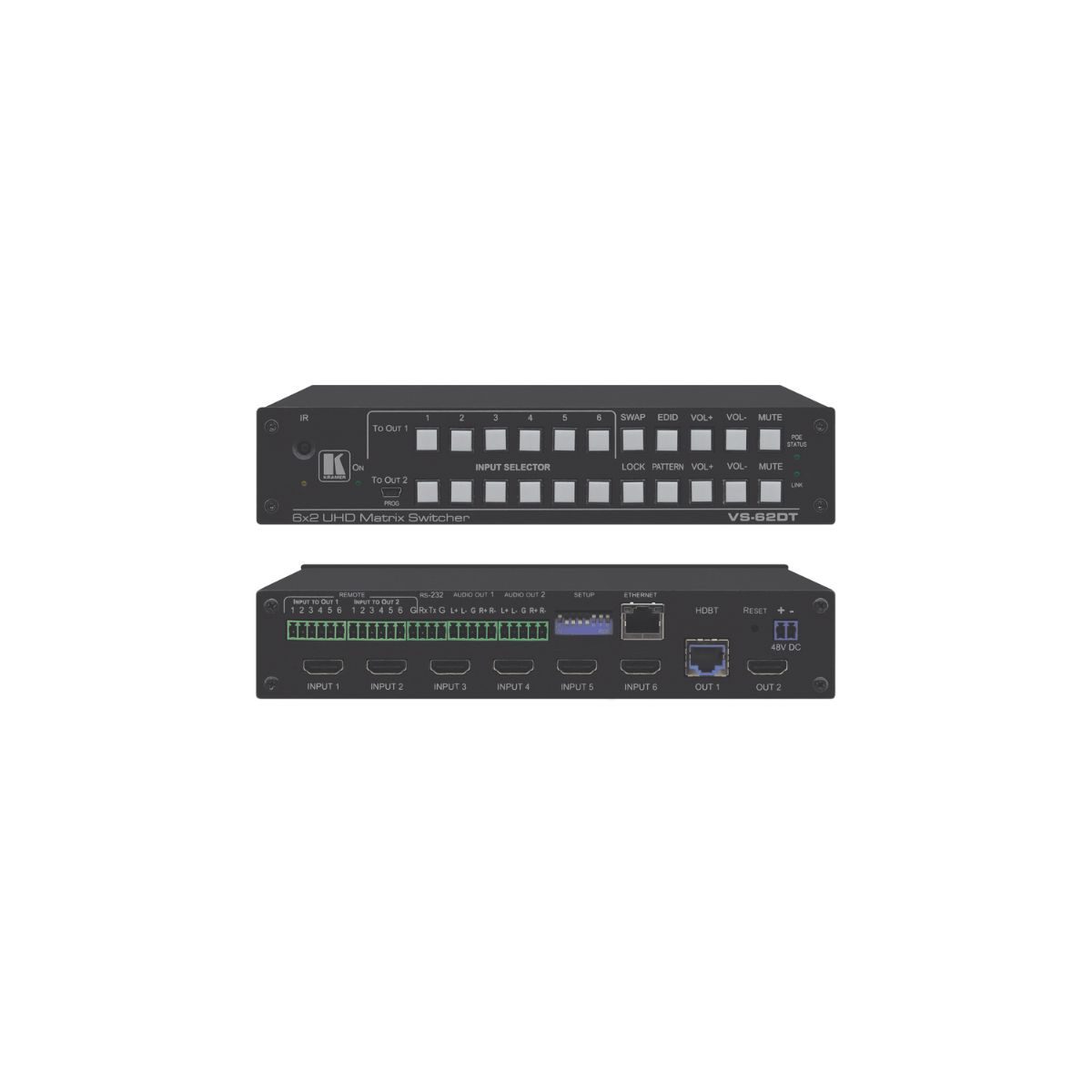

VS-62DT

VS−62DT is a 6x2 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher with HDMI and HDBaseT output transmitters that provide long−reach video and audio transmission. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.

Contact to Seller
  • Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
  •  Max. Resolution — 4K@60Hz (4:2:0).
  •  HDCP 1.4 Support.
  •  3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 PCM.

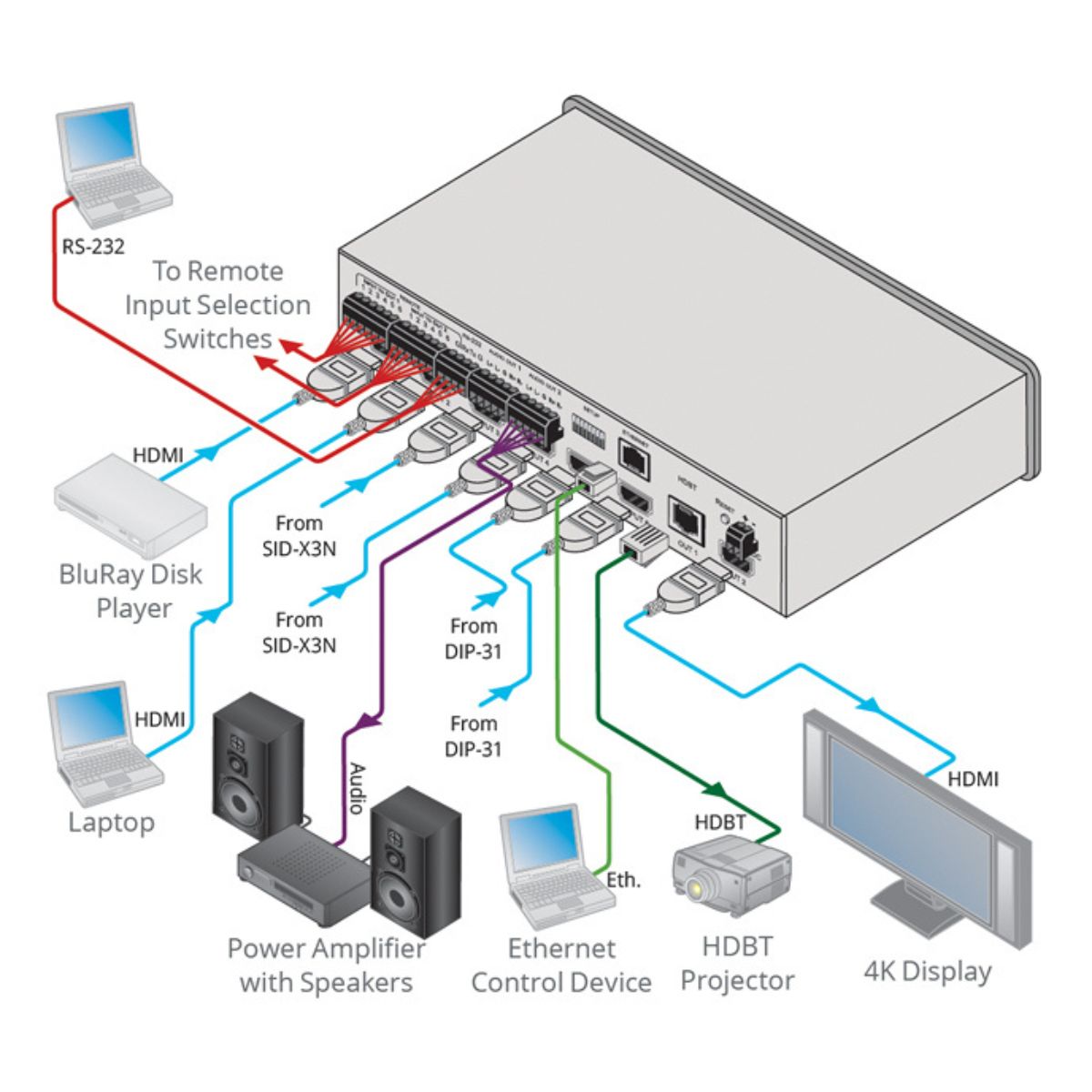

  •  Routing — Six HDMI inputs can be routed to an HDMI and HDBaseT output.
  •  Power–over–Ethernet — Supply of PoE to compatible receivers.
Download Product catalog

INPUTS
  • 6 HDMI connectors

OUTPUTS
  • 1 HDMI connector, 1 HDBT on an RJ–45 connector

PORTS
  • 1 Ethernet on an RJ–45 connector, 12 remote selection contact–closure switches on 13 terminal block pins, 1 serial port on a 3–pin terminal block, 1 program port on a mini USB

ANALOG AUDIO
  • 2 balanced stereo audio on 5–pin terminal blocks

BANDWIDTH
  • Up to 8.91Gbps data rate (2.97Gbps per graphic channel)

COMPLIANCE WITH HDMI STANDARD
  • HDCP 1.4
