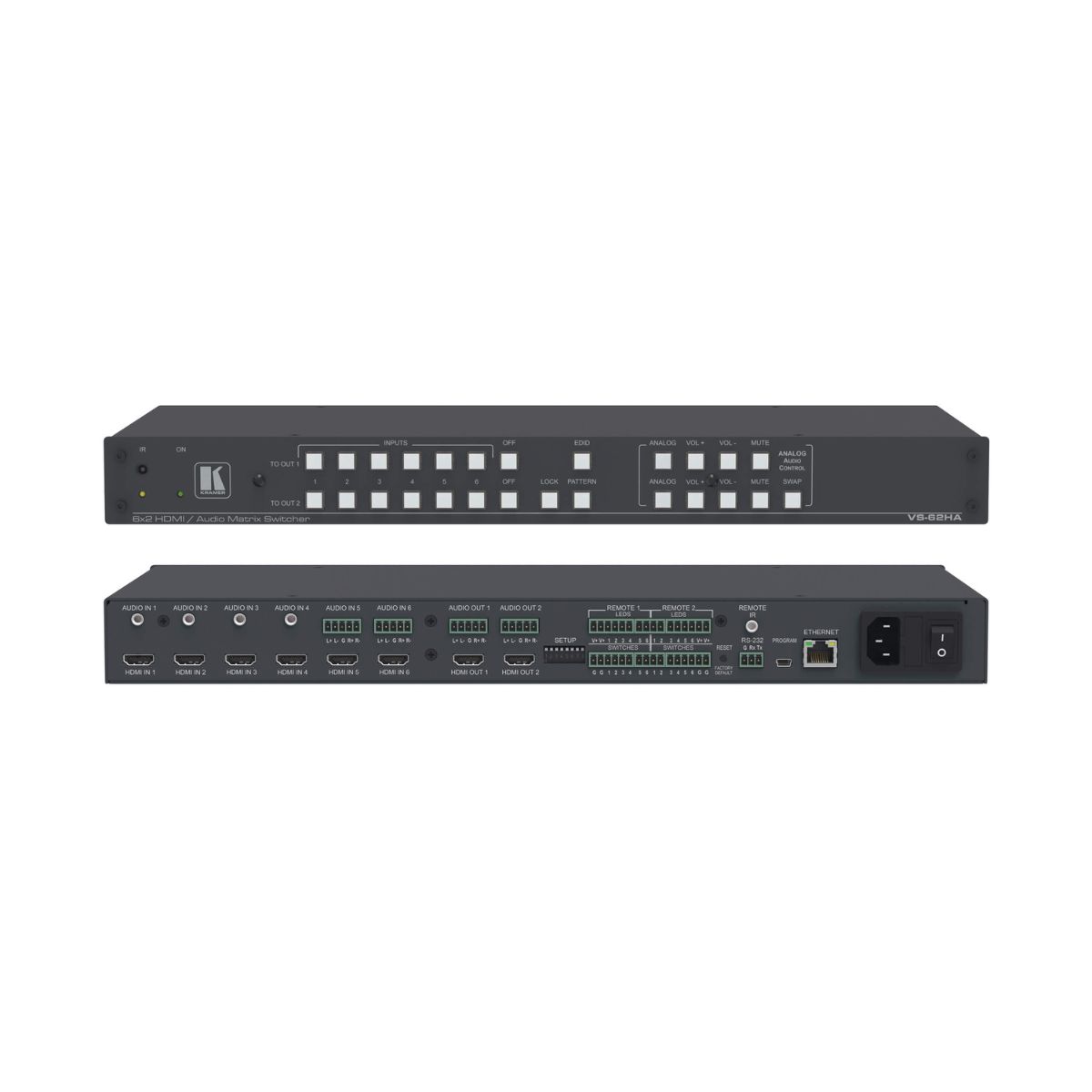

VS-62HA

VS−62HA is a high−quality matrix switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals that employs advanced auto switching schemes and control options. It reclocks and equalizes the signals and can route any input to either or both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.

Contact to Seller
  • Max Data Rate — 8.91Gbps
  • Max Resolution — 4K
  • Supports 4K@60Hz (4:2:0)
  • Kramer reKlocking™ & Equalization Technology
  • Supports Programmable Step–In over HDMI Functionality
  • 3D Pass Through.
  • EDID Capture
  • Internal Pattern Generator
  • Control — IR, RS–232, Ethernet, Contact Closure
  • Advanced Auto Switching
  • Embedded Web Pages
  • Remote Button/LED Ports
  • Independent (breakaway) Audio Routing of Digital and Analog Audio
Download Product catalog

INPUTS
  • 6 HDMI connectors, 4 unbalanced stereo audio on 3.5mm mini jacks, 2 balanced stereo audio on 5–pin terminal blocks

OUTPUTS
  • 2 HDMI connectors, 2 balanced stereo audio on 5–pin terminal blocks

PORTS
  • 1 RS–232 on a 3–pin terminal block, 1 Ethernet on an RJ–45 connector, 2 x 6 remote LED outputs on terminal blocks, 2 x 6 remote contact closure switches on terminal blocks, 1 USB Type–C, 1 optional remote IR on a 3.5mm mini jack

CONTROLS
  • Front panel buttons, infrared remote control transmitter, RS–232, Ethernet, remote input selection switches and LEDS, built–in Web browser

LED INDICATORS
  • IR active — red, ON — green

MAX. DATA RATE
  • Up to 8.91Gbps data rate (2.97Gbps per graphic channel)
