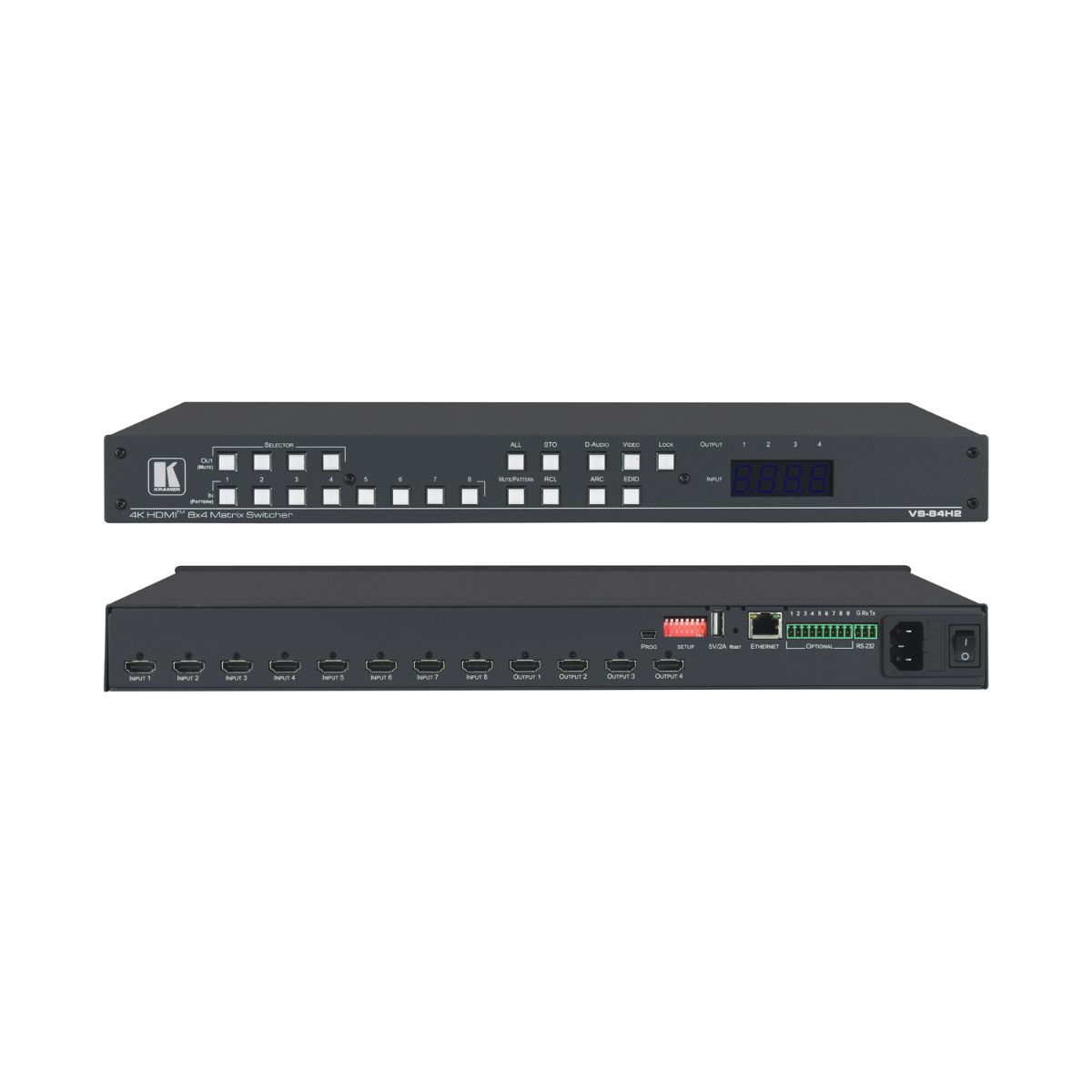

VS-84H2

VS−84H2 is a high−quality matrix with eight HDMI inputs independently routable to four HDMI outputs. An integrated audio matrix enables independent and flexible audio and ARC extraction, insertion, and routing between any HDMI ports.

Contact to Seller
  • 4K60 (4:4:4) resolution
  • Audio breakaway and ARC
  • Flexible switching & routing
  • Remote control & management
Download Product catalog

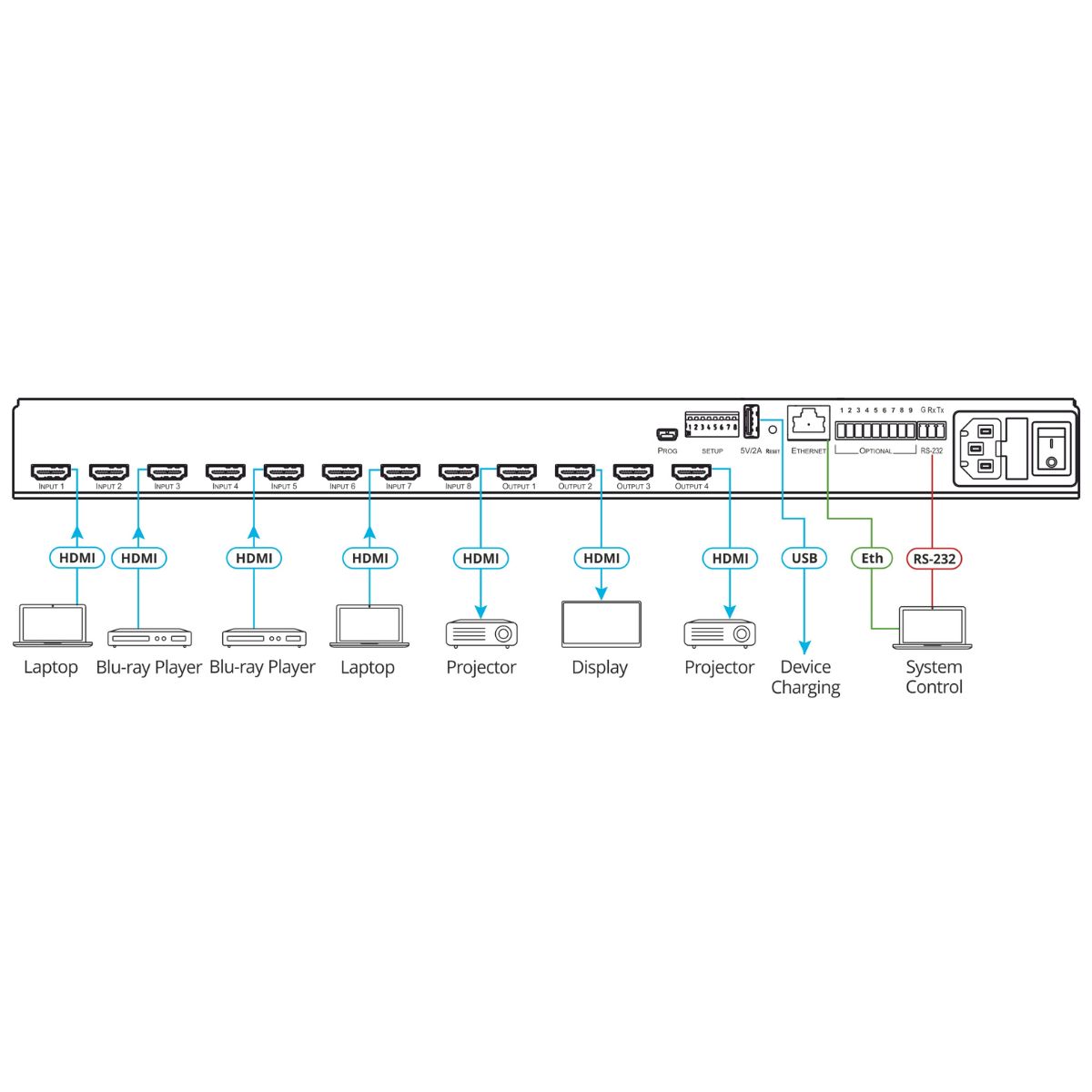

Inputs
  • 8 HDMI: On female HDMI connectors

Outputs
  • 4 HDMI: On female HDMI connectors

Ports
  • 1 USB: On a mini–USB connector for device firmware upgrade or management
  • 1 RS-232: On a 3–pin terminal block connector
  • 1 Ethernet: On an RJ–45 female connector for device control and management
  • 1 5V/2A USB: On a female USB–A connector for powering another device

Video
  • Max. Output Resolution: 4K@60Hz (4:4:4)
  • Content Protection: HDCP 2.2
  • Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
  • Max. Switching Time: Standard Mode: 3sec
  • Max. Switching Time: Safe Mode: 4sec
  • Max. Switching Time: Note: With same signal format
  • Compliance: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0

Audio
  • Matrix Size: 16x8
  • Routable Signals: Breakaway forward/ARC signals

Control
  • Front Panel: Buttons for device operation, (for example, input/output selection)
  • Indicators: 7 segment display
