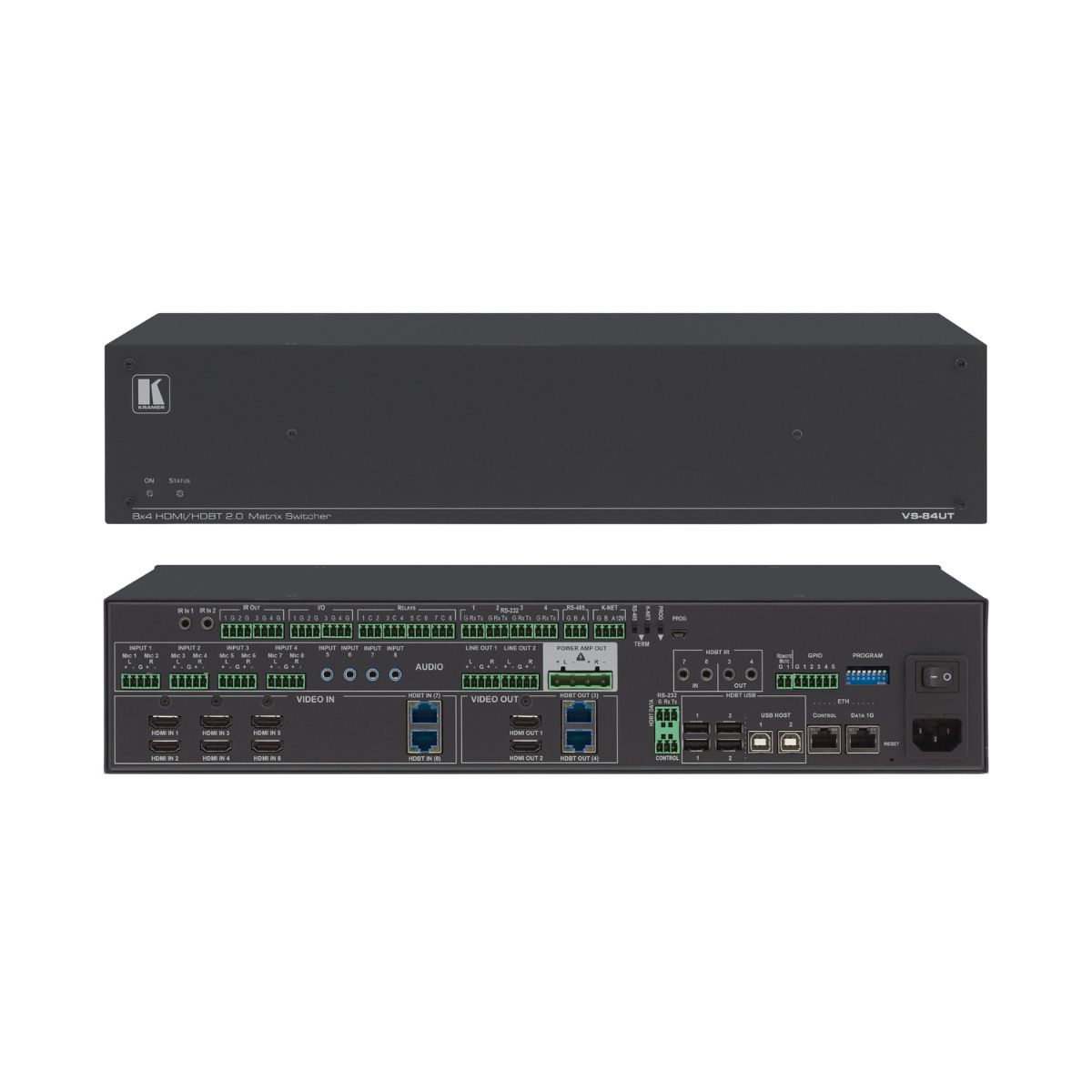

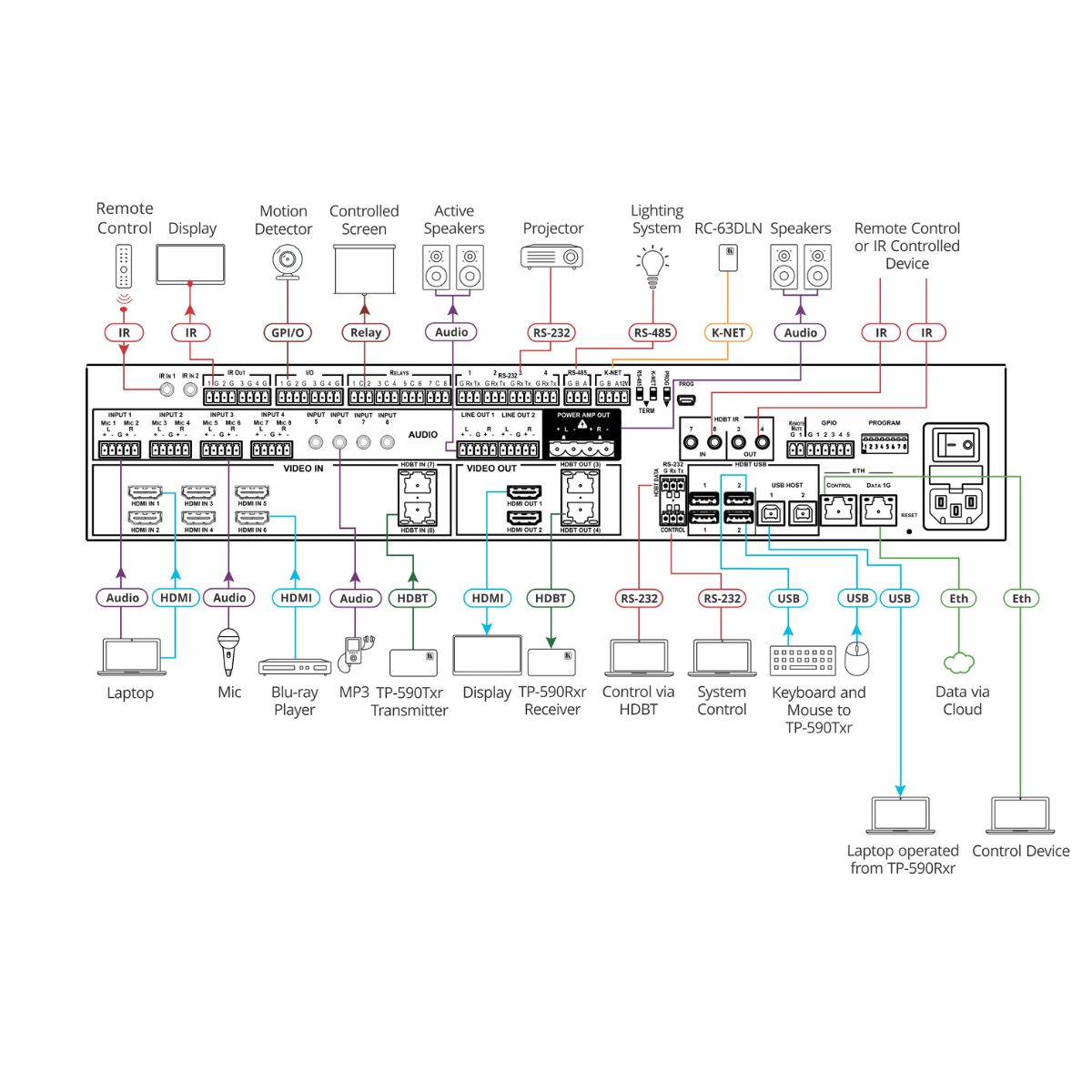

VS-84UT

VS−84UT is an all−in−one 4K@60Hz (4:2:0) audio−video presentation system with integrated range extension and an integrated control system master. The unit switches the video, embeds the audio, and outputs the signal to both HDMI™ and HDBaseT 2.0 with USB extension and PoE on the HDBaseT output ports. Outstanding audio support includes balanced stereo audio, unbalanced stereo audio, and de−embedded audio sources that output to embedded audio, balanced stereo audio, as well as a power-amplified audio output.

Contact to Seller

Inputs

  • 6 HDMI: On female HDMI connectors
  • 2 HDBaseT: On RJ–45/female HDMI connectors
  • 4 Unbalanced Stereo Audio: On 3.5mm mini jacks
  • 4 Balanced Stereo Audio/8 Balanced Mic (Selectable): On 5–pin/3–pin terminal block connectors
  • 2 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT
  • 2 IR (room controller): On 3.5mm mini jacks

Outputs

  • 2 HDMI: On female HDMI connectors
  • 2 HDBaseT: On female RJ–45 connectors
  • 2 Balanced Stereo Audio: On 5–pin terminal block connectors
  • 1 Stereo Speaker Output: On a 4–pin terminal block, 2x50W into 4Ω
  • 2 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT

Extension Line

  • Up to 100m (330ft): At 4K@60Hz (4:2:0)
  • Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
  • Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)
  • Compliance: HDBaseT 2.0

User Interface

  • Indicators: ON & STATUS LEDs
  • Configuration Switches: RS–485 Termination, RS–485 Termination, Programming

Video

  • Max. Resolution: 4K UHD @60Hz (4:2:0) 24bpp resolution)
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Content Protection: HDCP 1.4

Analog Audio

  • Max Vrms Level: 1
  • THD + Noise: 0.03% @1kHz at nominal level



  • Resolutions up to 4K@60Hz (4:2:0)
  • Data Rate up to 10.2Gbps (3.4Gbps per graphics channel)
  • Signal Extension up to 100m at 4K @60Hz (4:2:0)
  • Flexible Audio Extraction, Embedding, and Control
  • Programmable Master Room Controller
  • RS–232, RS–485, IR, GPI/O, and relay ports
  • PoE (Power over Ethernet) Provider
