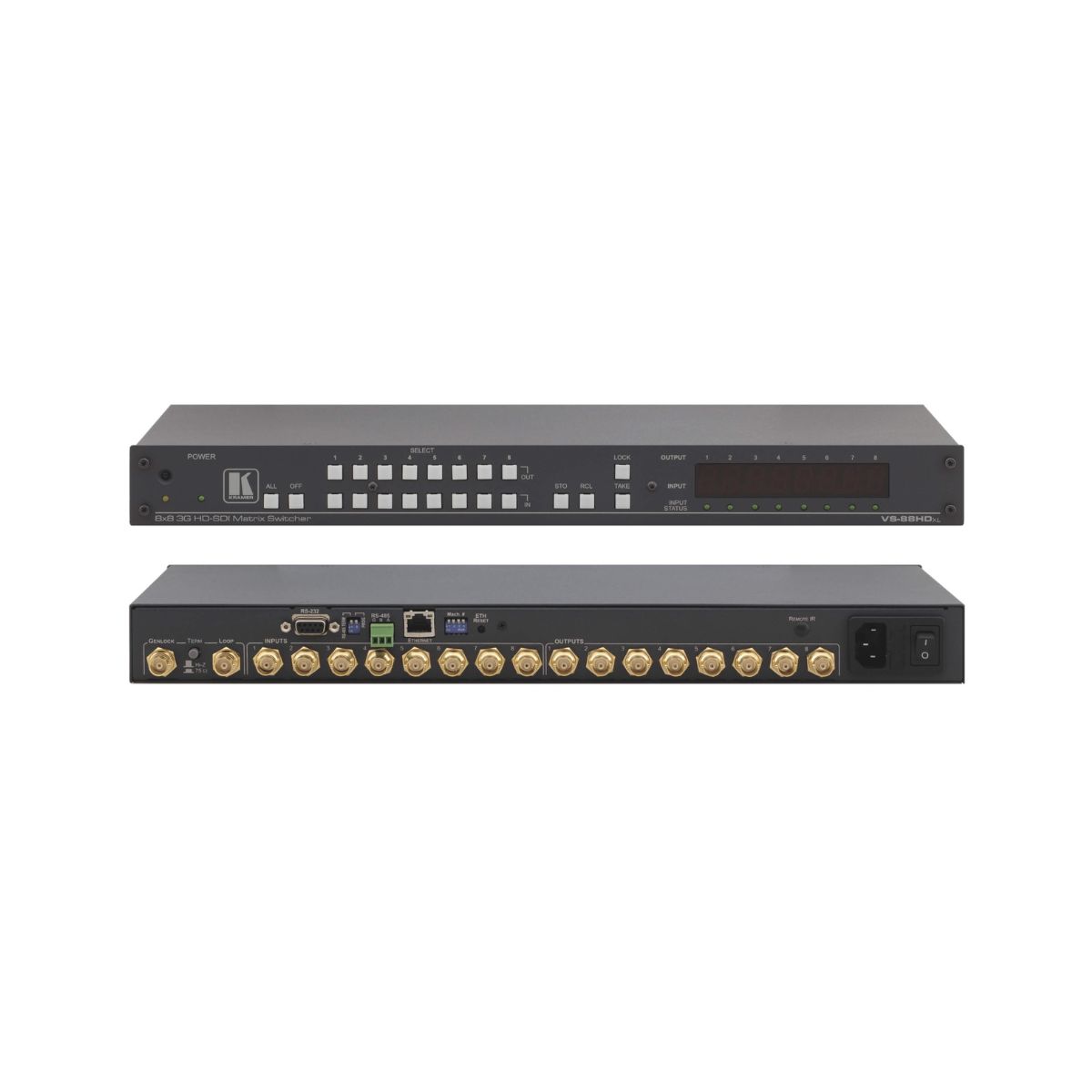

VS-88HDxl

The VS−88HDxl is a high−performance matrix switcher for 3G HD−SDI and HD−SDI dual-link video signals. The unit can switch any or all inputs to any or all outputs. Switching is implemented during the vertical interval period according to the SMPTE RP−168 standard when using synchronized digital video sources.

Contact to Seller
  •  Max. Data Rate — 3Gbps.
  •  Multi–Standard Operation — SDI (SMPTE 259M & SMPTE 344M),  HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M) and dual link HD–SDI (SMPTE 372M).
  •  Automatic Equalization Technology.
  •  Looping Analog Sync Input.
  •  Selectable Sync Signal Termination.
  •  Analog Sync Type — Bi–level, tri–level.

INPUTS
  • 8 SMPTE–259M, 344M, 292M, 372M, 424M serial video, 75Ω on BNC connectors

OUTPUTS
  • 8 equalized and reclocked SMPTE–259M, 344M, 292M, 424M, 372M (dual link) outputs 75Ω on BNC connectors

MAX. OUTPUT LEVEL
  • 800mVpp/75Ω

DATA RATE
  • Up to 2.97Gbps

CONTROLS
  • Front panel, RS–232, RS–485, ETHERNET, remote infrared

INDICATORS
  • 8–character display on the front panel
